Emerson QuickPanel+ IC755C S06RD Series User Manual

Quick Panel Operator User Manual Section 5
GFK-2847AA Jan 2023
Mounting and Installation 72
IC755CxSxxCDx
Note: For an IC755CxS12CDA serial port, refer to Appendix C, Serial Port Details IC755CxS10CDx, IC755CxS12CDA, and
IC755CxS15CDx.
Adhere to the following guidelines:
• Terminal blocks are supplied.
• The mating terminal blocks support stranded 30 to 14 AWG (0.05 to
2.00 mm2) wires.
• At a minimum, the cable must be rated for 75°C (167°F), or more.
• Secure the serial cable to the mating connector while noting signal
orientation and tighten the screw clamps.
• The torque for the attaching screws is 0.3 Nm (2.66 in-lb.).
Serial Port COM1 Details
Interface: x1 RS-232C
Connector: Euro Terminal (Tyco Electronics 284539-5)
Mating Connector: Tyco Electronics 284510-5
Pin #
Signal Name
Pin-Out
1
TXD

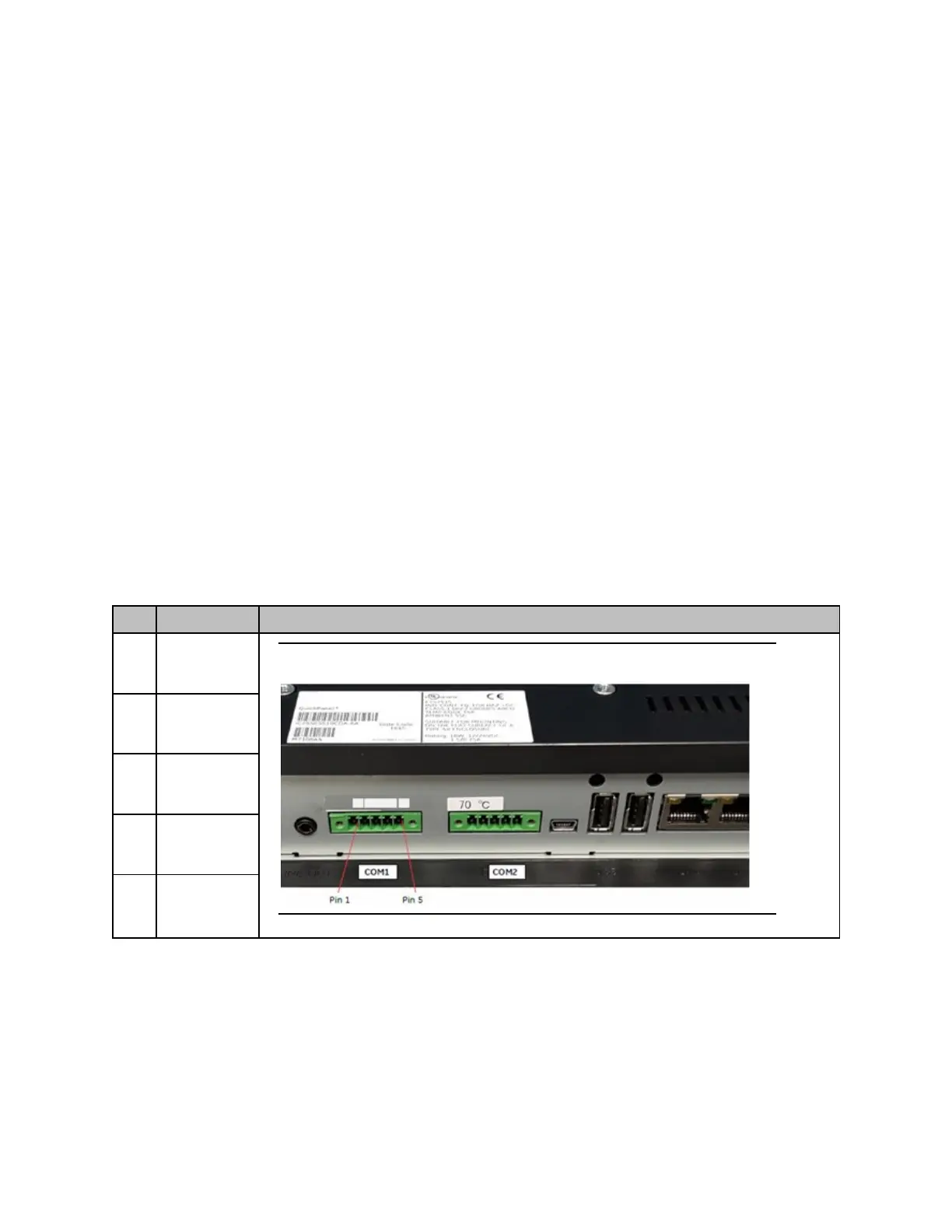

Figure 75: Serial Port COM1 Pin-Out IC755CxSxxCDx
2
RXD
3
RTS
4
CTS
5
SGND
