Quick Panel Operator User Manual Section 6
GFK-2847AA Jan 2023
Operation 80
Section 6: Operation
6.1 Touchscreen Display
The QuickPanel
+
Operator Interface features a LED Backlight LCD
touchscreen display with two-point touch technology. The touch
technology is based on projected capacitance that allows finger tracking
without pressured contact. It is conducive to smooth scrolling and multi-
touch gesturing capability. Display brightness and backlight operation
can be configured using the QuickPanel
+
Setup tool available in the
program system menu.
CAUTION
Although Emerson recommends the use of the protective sheet, do not operate the
touchscreen with any hard materials, such as a screwdriver. This could damage the
touchscreen display.
Note: IC755CxS06RDx (6” display) is an Analog Resistive touch display that does not support two-point
touch capability. Single point gestures such as swipe, pan, and double-tap are supported.
6.1.1 Display Brightness Adjustment
To adjust the brightness of the display
1.
Open the QuickPanel
+
Setup Tool and select the Backlight tab to
display the Backlight Display Properties window.
2.
Set the backlight brightness value.

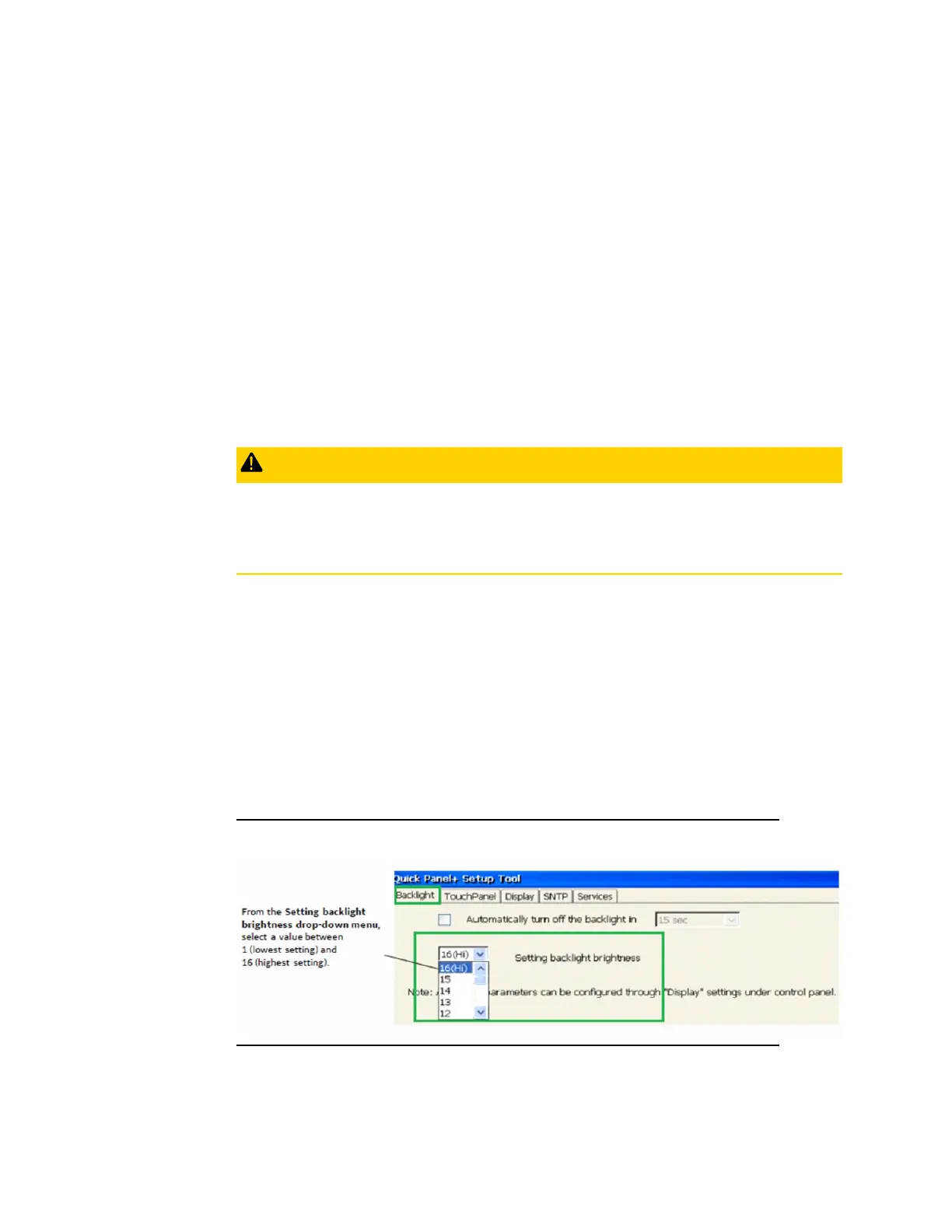

Figure 82: Adjust Display Brightness
3.
Tap OK to exit the QuickPanel
+
Setup Tool.
4.
Run the Backup Utility to save the settings
To Next Page
