Rosemount 3150 Series
Reference Manual
00809-0100-4835 Rev BE
February 2018
17
Installation

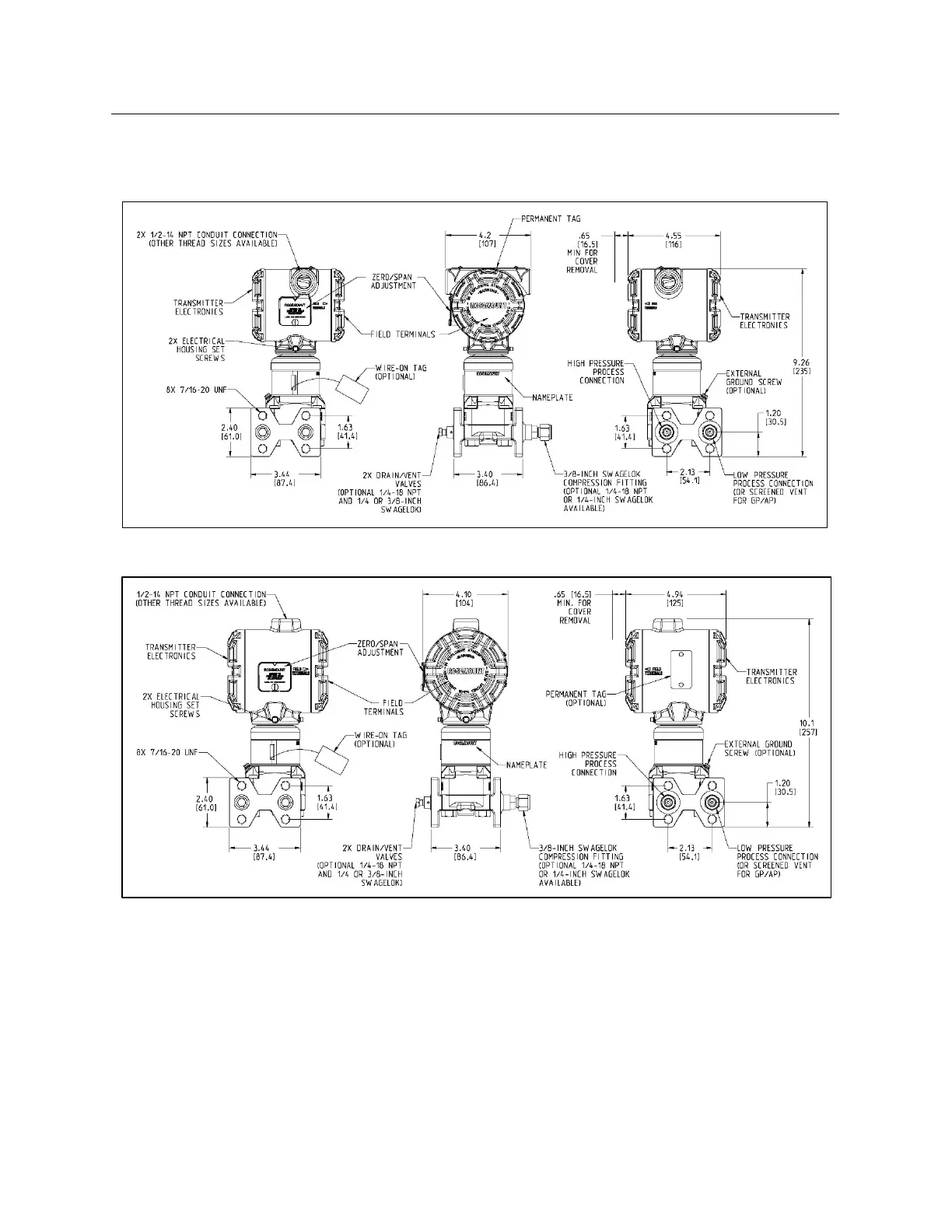

Figure 2-6 – Transmitter Dimensional
Drawings
Figure 2-6a – 3152, 3153 Traditional Flange
NOTE: All dimensions are nominal in inches (millimeters)
Figure 2-6b – 3154 Traditional Flange
NOTE: All dimensions are nominal in inches (millimeters)
