Installation

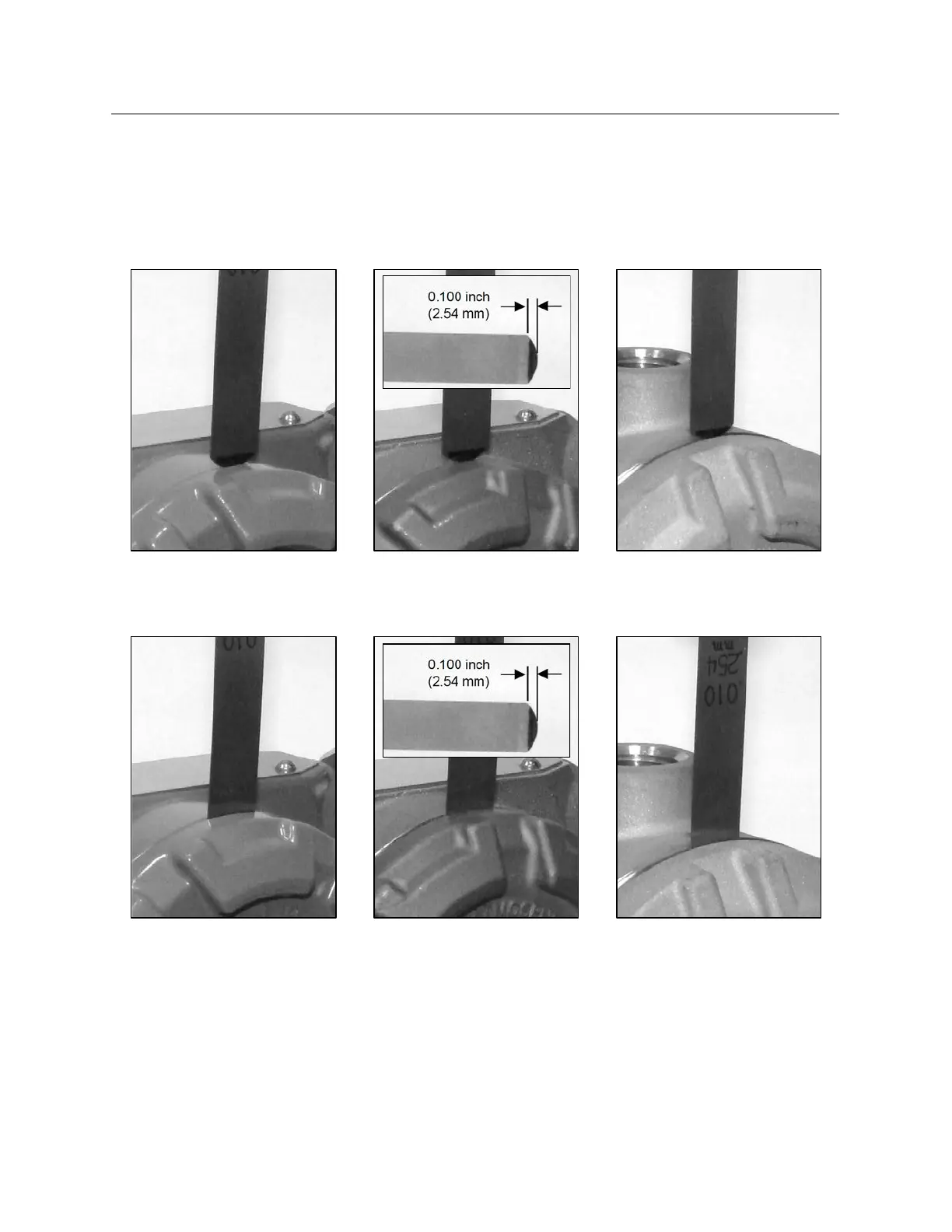

Figure 2-11 – Acceptable vs.
Unacceptable Gap Between Cover
and Housing
Figure 2-11a – Acceptable Gap Between Cover
and Housing
Aluminum Housing (3152, 3153) SST Housing (3152) SST Housing (3154)
Figure 2-11b – Unacceptable Gap Between
Cover and Housing
Aluminum Housing (3152, 3153) SST Housing (3152) SST Housing (3154)
