Emerson Unidrive M702 Getting Started Guide

Unidrive M702 Getting Started Guide 19
Issue Number: 4
Safety information Product information
Mechanical
installation
Electrical
installation
Getting started
Basic parameters
(Menu 0)
Running the motor
NV Media Card
Operation
Further information
UL listing
information
3.4 Drive dimensions

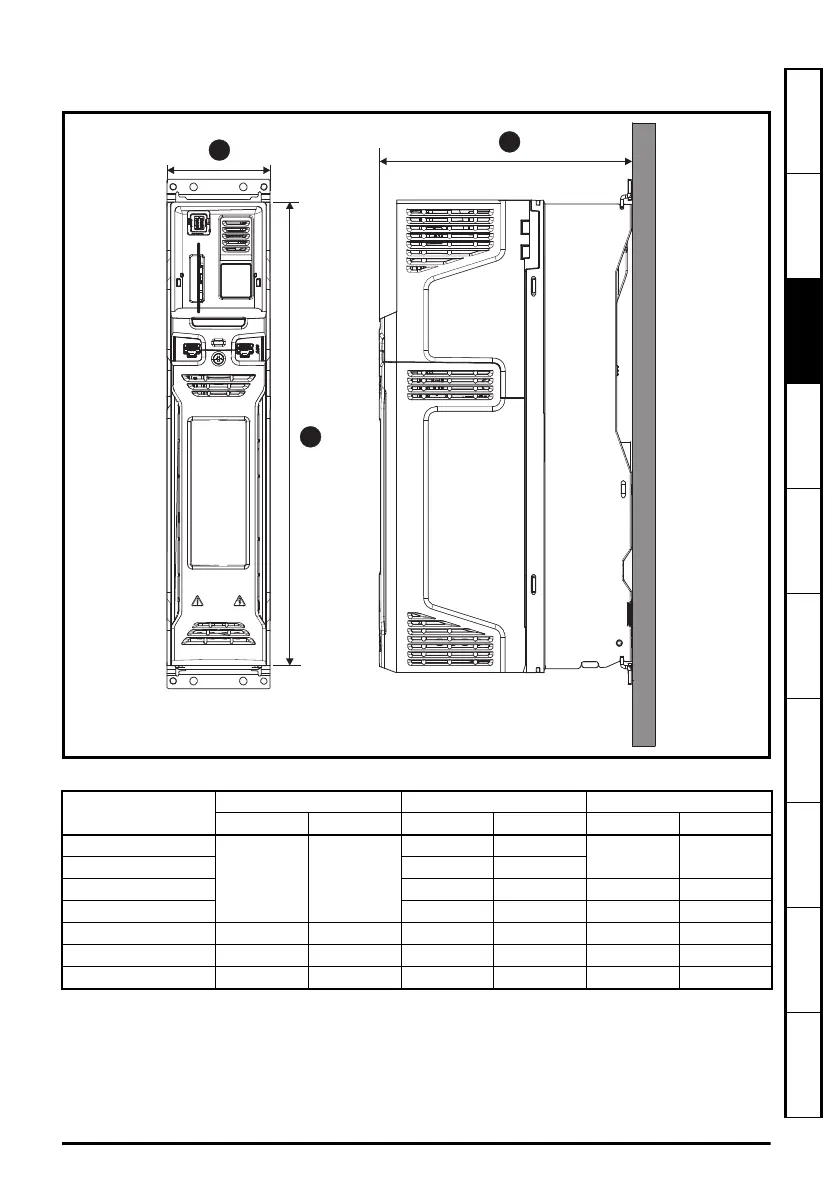

Figure 3-1 Drive dimensions
Size
HWD
mm in mm in mm in
3
365 14.37
83 3.27
200 7.87
4 124 4.88
5 143 5.63 202 7.95
6 210 8.27 227 8.94
7 508 20 270 10.63 279 11
8 753 29.65 310 12.21 290 11.42
9E and10 1069 42.09 310 12.21 289 11.38
H
W
D
Unidrive M702 Getting Started Guide English iss3.book Page 19 Friday, August 29, 2014 2:33 PM
