MicroVission Retrot Instructions • 35391MVRF

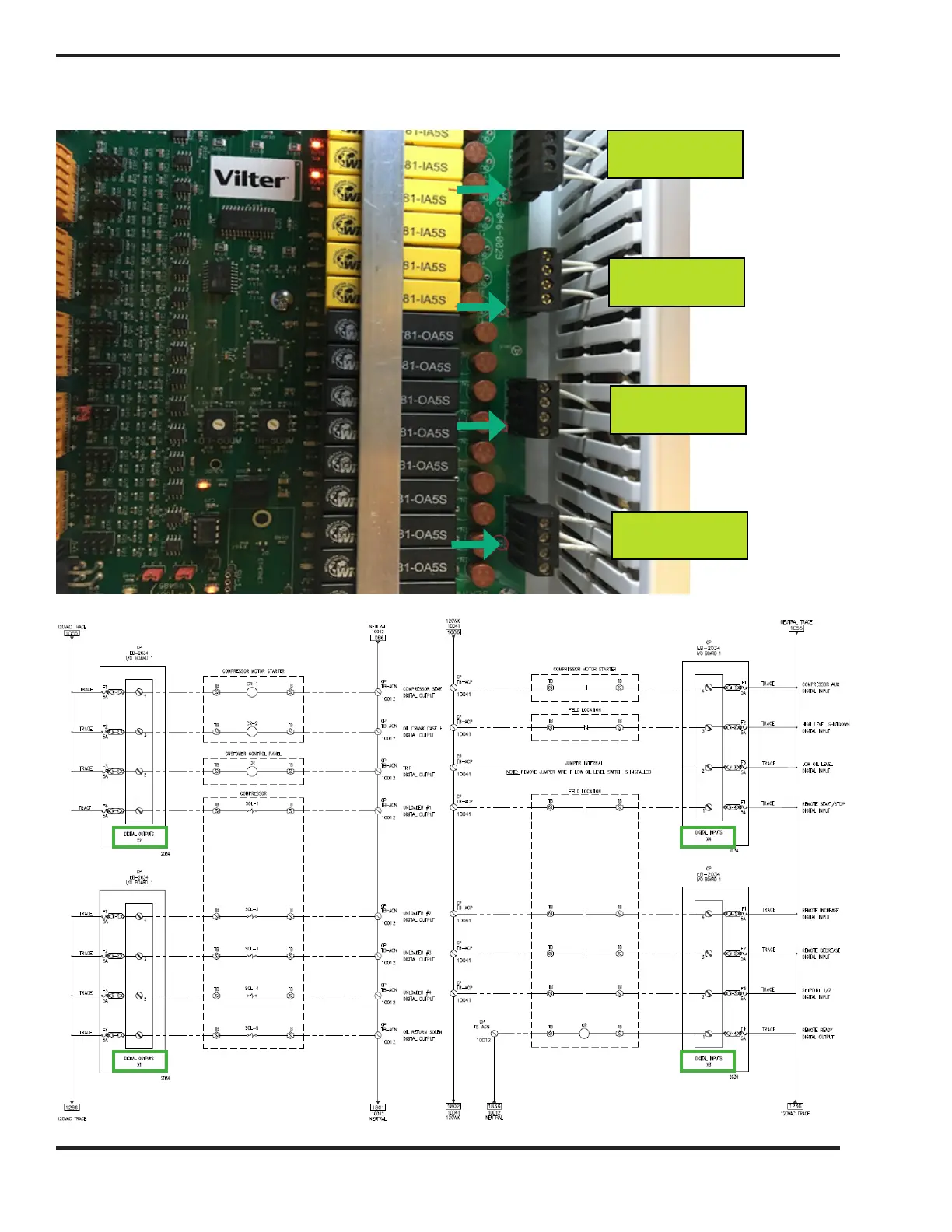

Step 2. Connecting digital inputs/outputs: take a look at the 4 black screw terminals on the right side of the large multi
Input/Output board. These terminals correspond to SHEET 12 of the drawing set, see Figure 16.
Digital Input X4
Digital Input X3
Digital Output X2
Digital Output X1
Figure 16. Digital Input/
Output Wiring
