Emerson Vilter MicroVission - Figure 2. Keypad UL Retrofit

5
MicroVission Retrot Instructions • 35391MVRF
KT822A
Item number Quantity Item name
1726D 2.00 NUT 7/16-14NC-2B HEX HVY PLAIN
13265FZ 4.00 WASHER 7/16 USS ZINC PLTD
13165ES 2.00 WASHER 7/16 LOCK 304SS
41801G 1.00 BRACKET, CONTROL PANEL RETROFIT

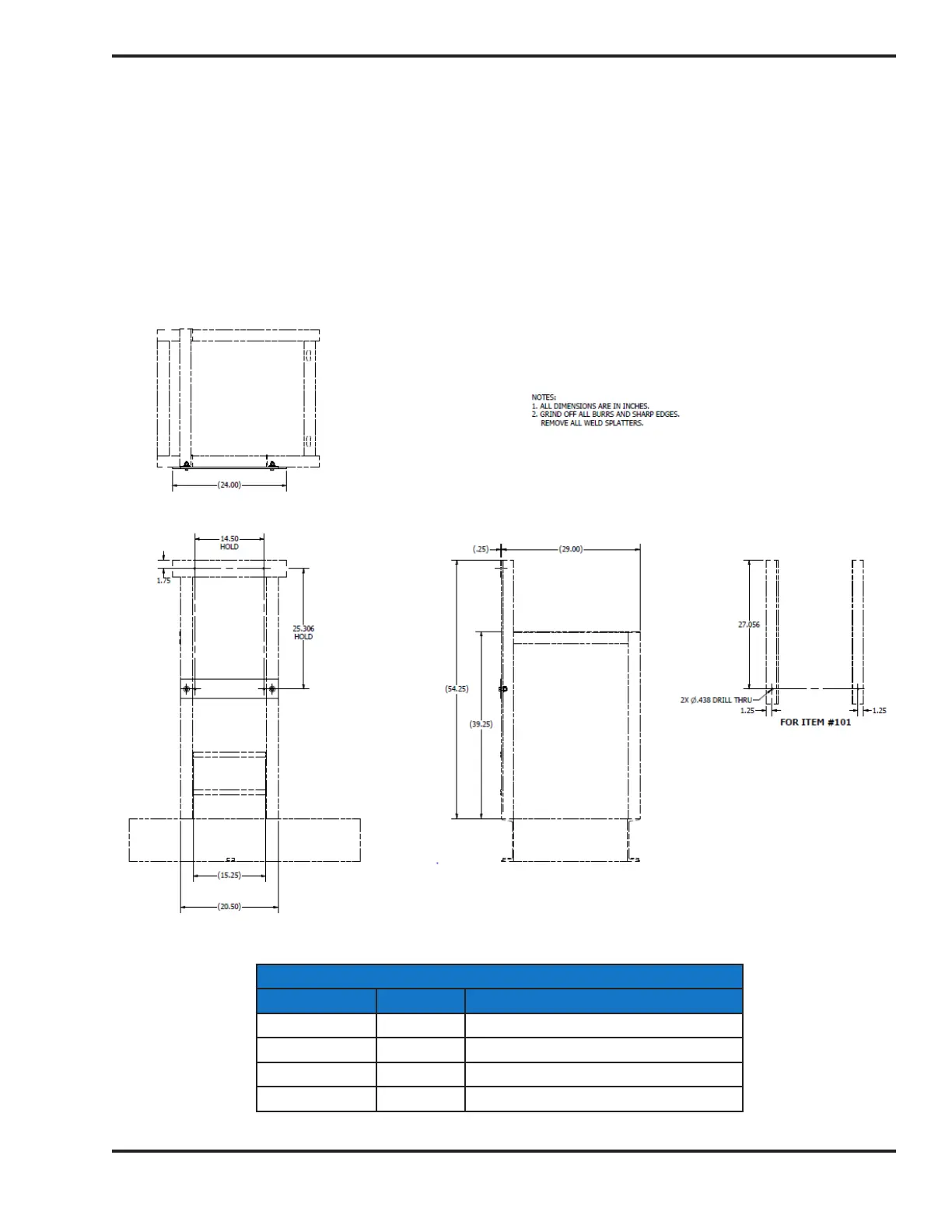

Figure 2. Keypad UL Retrot
NOTE
Torque all hardware according to speci cations, see
Table 1 at the end of this guide
NOTE
If excesive vibration occurs, further support from the
controller bracket to the base may be required
NOTE
The UL version of the Keypad Micro is wider and requires
additional cross supports. Kit KT822A contains the
parts necessary to perform the adaptation, see Figure 2
