MicroVission Retrot Instructions • 35391MVRF

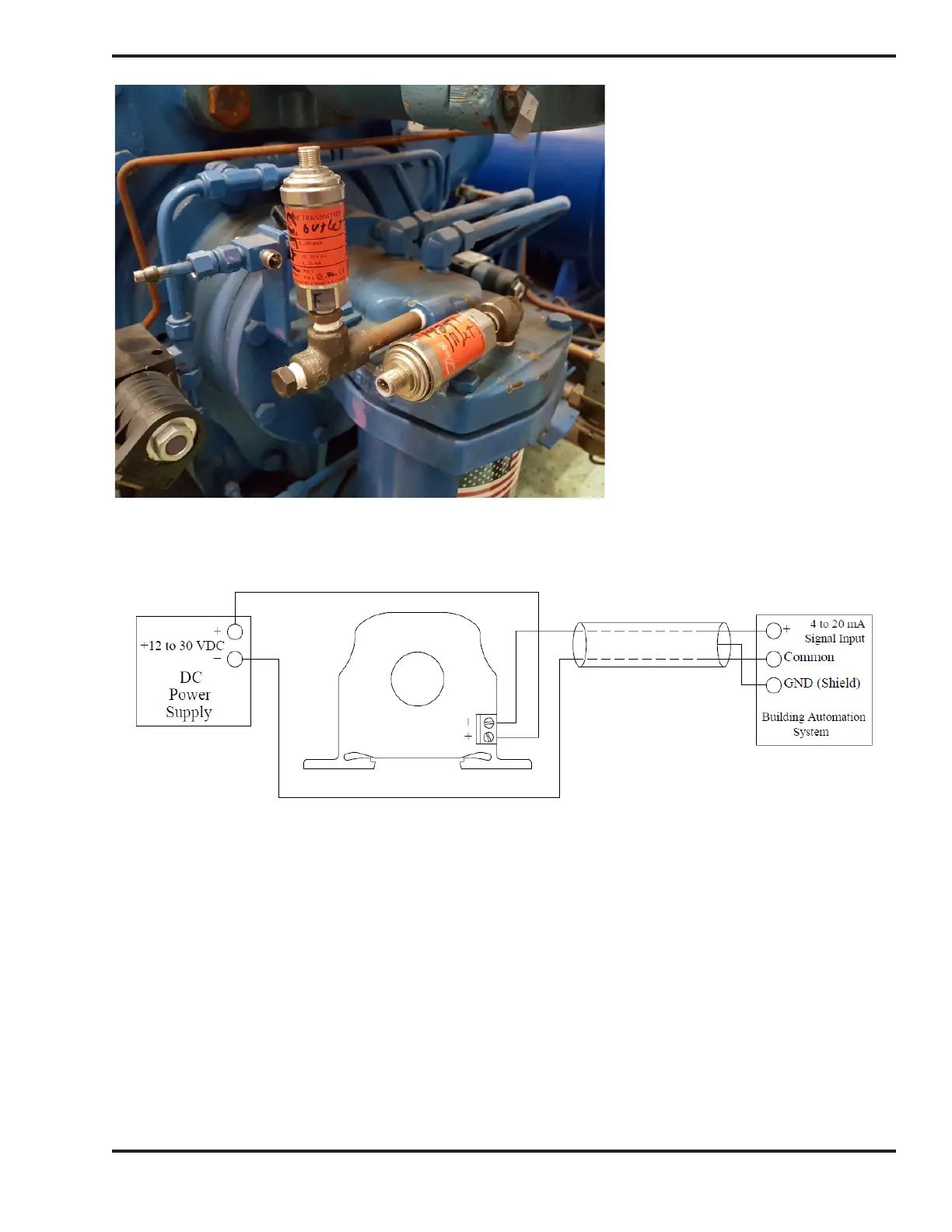

Figure 5. Tri-Micro lter with
pressure transducers
Step 6. Install the 4-20mA current transmitter to sense the amperage at the motor terminal box, and connect to the
analog input at the MicroVission panel.
Figure 6. Connection of 4-20mA Current Transmitter (Sensor)
NOTE
The Keypad and VILTech Micro-controllers did not have
an amperage input, and the Vantage used a different
type CT, so the acquisition of current transmitter (VPN
3669CT) is imperative to work with the MicroVission
panel. This transmitter is contained in retro tting kit
KT24X20MV, see Table 2.
Step 7. Go to section 3.0 for wiring instructions.
