MicroVission Retrot Instructions • 35391MVRF
Oil Pressure Transducer
0-200PSIA 4-20MA OUT
Suction Pressure Transducer
0-200PSIA 4-20MA OUT
Discharge Pressure Transducer
0-414.5PSIA 4-20MA OUT
WELL 1/4 X 1/2 RTD 1018CS
WELL 1/4 X 1/2 RTD 1018CS
Transducer
MTG OIL
FILTER
Manifold 3 Transducer
BLK-BLD 2-8CYL

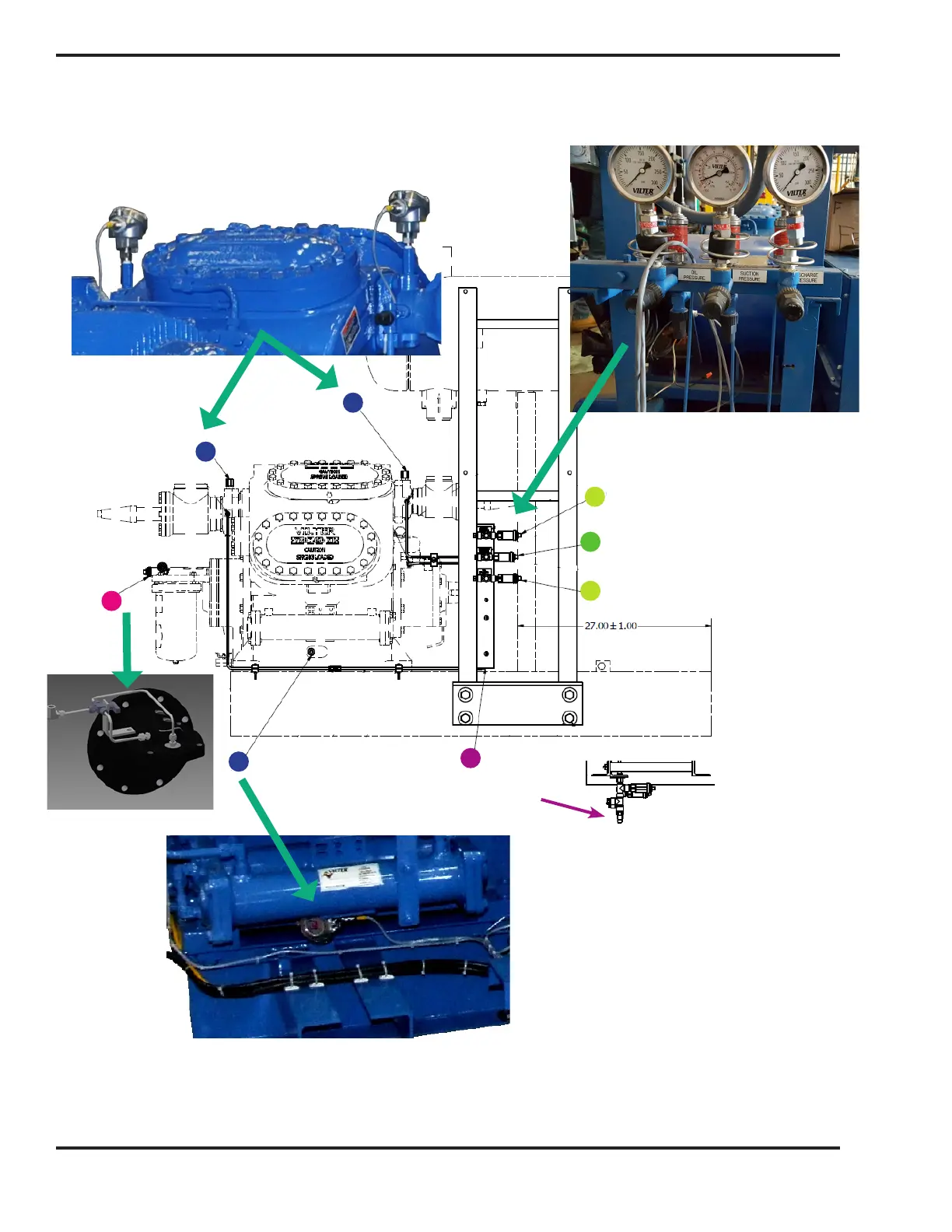

Figure 11. Well & Transducers Location
