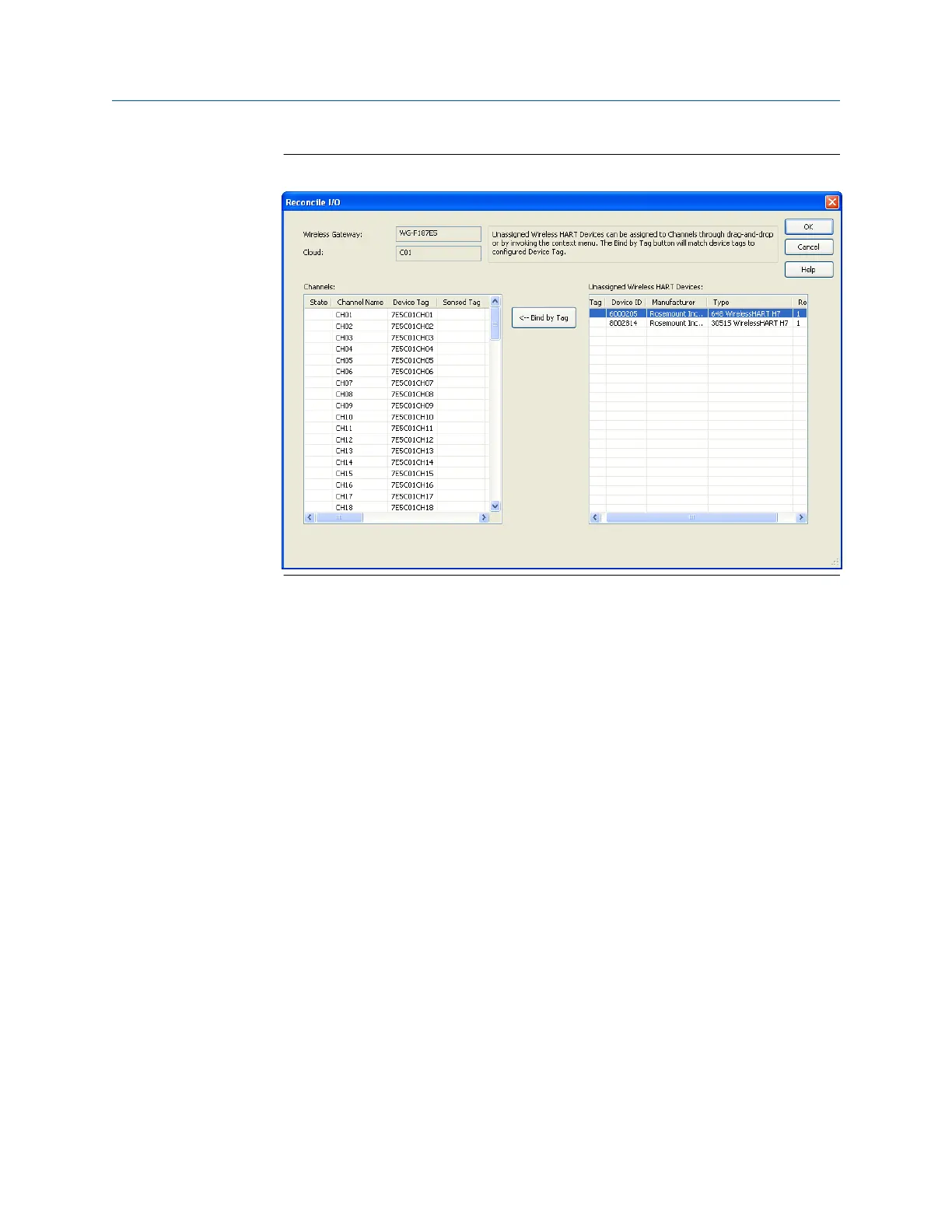

Figure C-3: Assign WirelessHART Devices to DeltaV I/O Channel
C.5.3 Assign wireless device tags
Assign wireless device tags using the following procedure:
Procedure
1. Drag and drop WirelessHART device from the Unassigned Wireless HART Devices:
list to the Channels: list.
2. Repeat this process for each wireless device until all have been assigned.
3. Select OK to continue.
C.5.4
Assign the gateway to a DeltaV controller
Next the Gateway will need to be assigned to a DeltaV Controller and download all. Assign
and download the Gateway using the following procedure:
Procedure
1. Right click on the Gateway and select Assign…
2. Use the browse window and select the desired controller.
3. Select OK to close the assignment window.
4. Right click on the Gateway and select Download.
5. Follow the download dialog.
6. Select OK to close the download window.
DeltaV
™
Ready Reference Manual
September 2020 00809-0200-4420
82 Emerson.com/Rosemount
