5. Push the ENTER key to enter in Pr2 menu
3.3.2 Parameters grouping

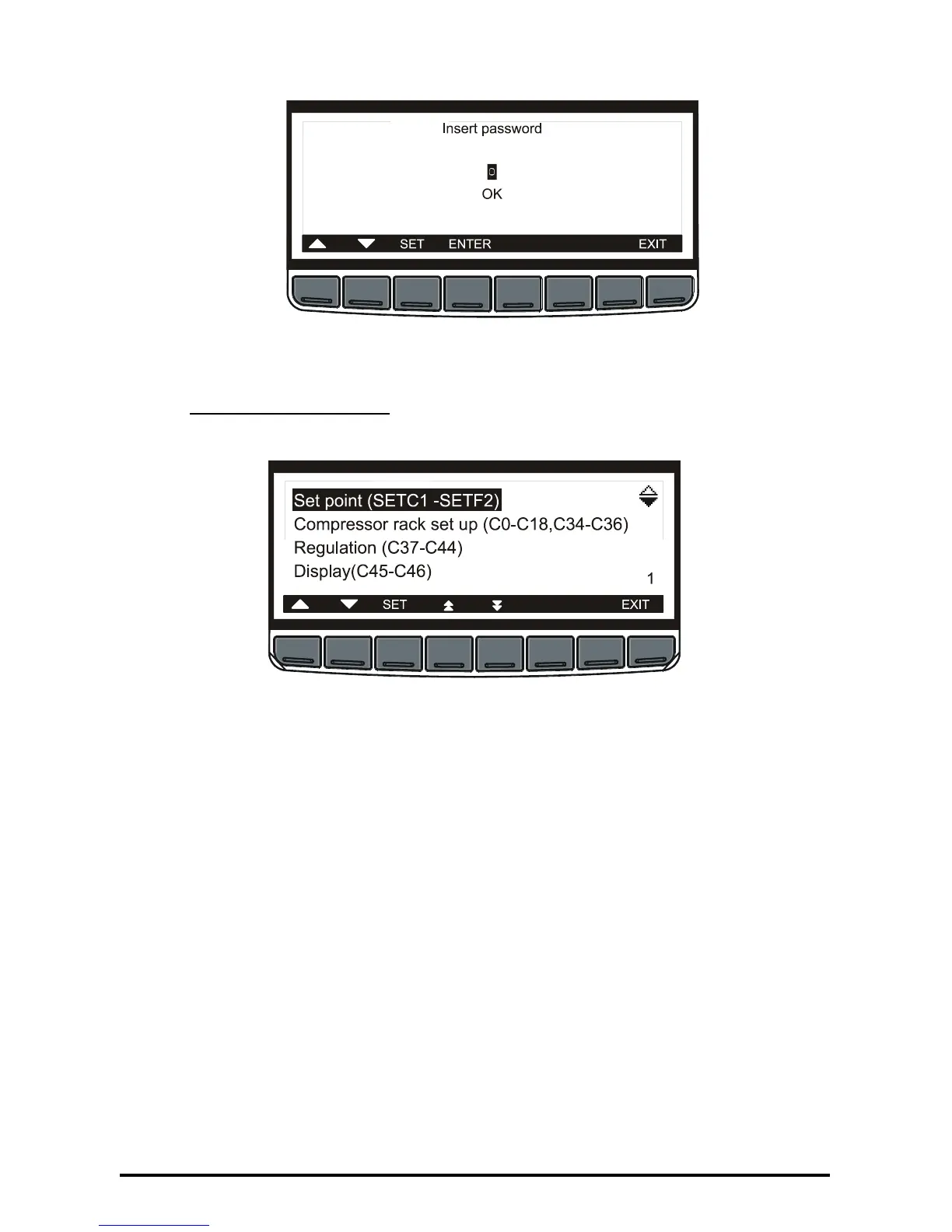

The parameters are collected in sub-menu according to the following interface.
The parameters sub menu are the following:
Set Point (SETC1-SETF2)
Compressor Rack setup (C0-C18, C34-C36)
Regulation (C37-C44)
Display (C45-C46)
Analog Inputs of regulation (Ai1-Ai15)
Analog Inputs of auxiliary (Ai16-Ai28)
Safety Digital Inputs (Di2-Di13)
Digital Inputs (Di14-Di27)
Display (C45-C44)
Compressor Action (CP1-CP8)
Safety Compressors (CP9-CP18)
Fan Action (F1-F8)
Safety Fans (F9-F10)
Energy Saving (HS1-HS14)
Compressor Alarms (AC1-AC19)
To Next Page
