1592021021 XC1008-1011-1015D GB A5 r.1.5A 12.10.2009 XC1008-1011-1015D 7/66

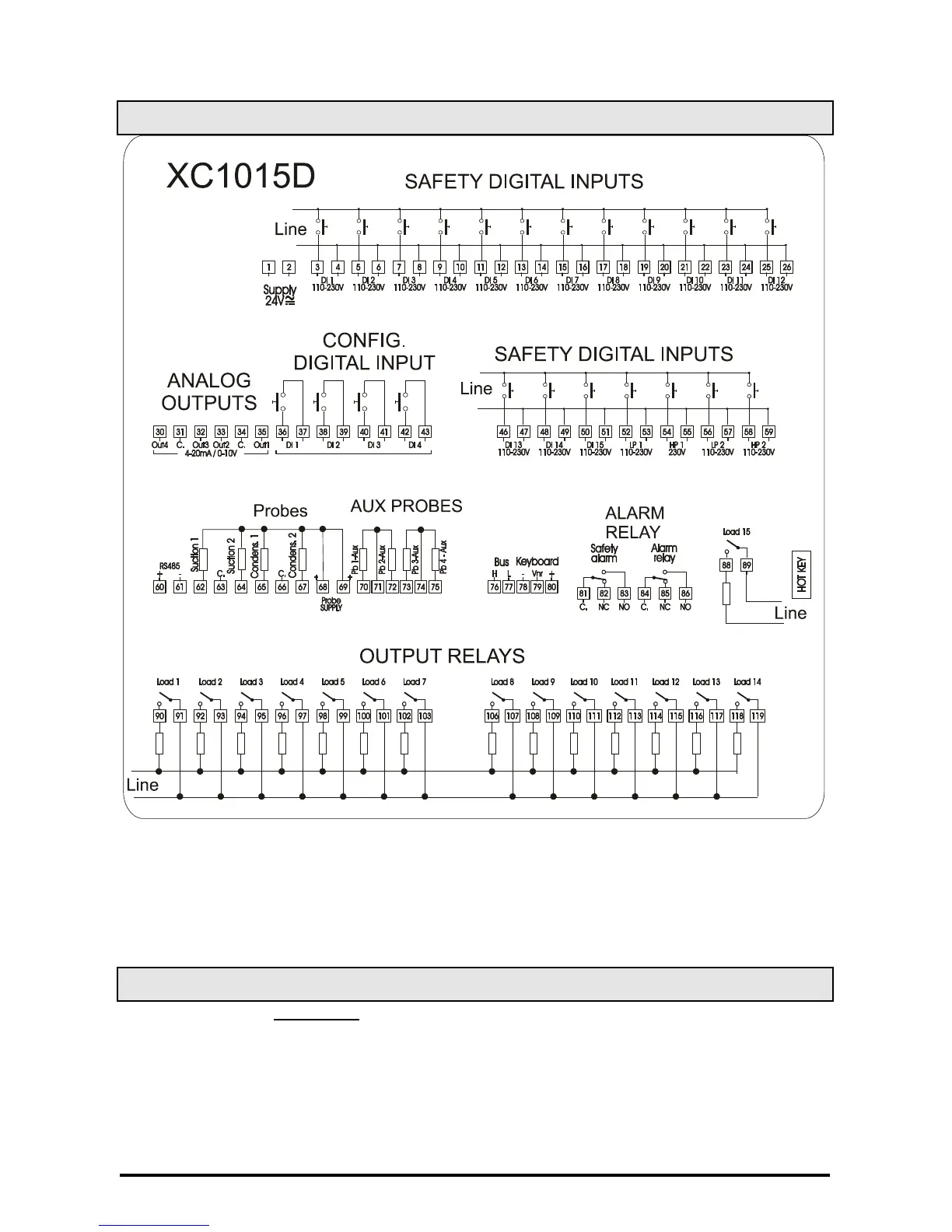

2.3 XC1015D
NOTE: according to the models the digital inputs: (3-26) and (46-59) can operates at 230V/120V
or 24V. Verify on the controller which is the right voltage that can be applied.
ATTENTION
Configurable digital inputs (term. 36-43) are free voltage.
2.4 Descriptions of the wiring connections
1 - 2 Power supply: WARNING: THE SUPPLY IS 24Vac/dc
3 –26 Digital inputs for safeties of compressors and fans – main voltage. When an d. i. is
activated, the corresponding output is switched OFF. Please note: the digital input 1 is linked to
the relay 1 (C1); d.i. 2 to relay 2 (C2), etc.
30-31Analog output 4 (0-10V or 4-20mA depends on the parameter 3Q1)
