2. Wiring connections

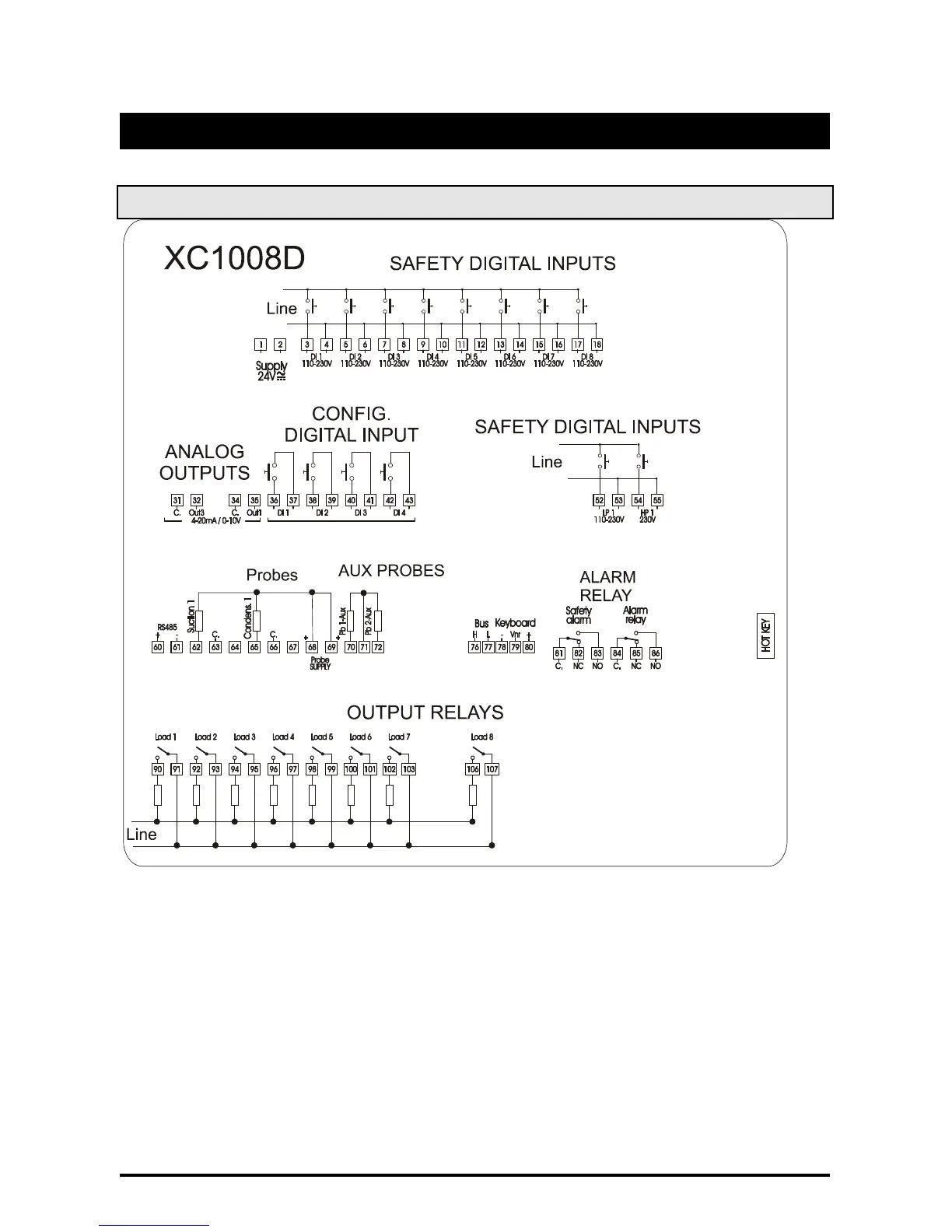

2.1 XC1008D
NOTE: according to the models the digital inputs: (3-18) and (52-55) can operates at 230V/120V
or 24V. Verify on the controller which is the right voltage that can be applied.
ATTENTION
Configurable digital inputs (term. 36-43) are free voltage.
