Valve Capacity Reducing - MNF Parameter Regulation for Superheat: Self Adaptive or Manual Operating Mode • 29
See the figure below (Figure 16-1) for the behavior of
the capacity of the valve, when the MnF p
arameter is
adjusted.
16.6.1. Auto Zero Procedure (Go
Home Functions)
To prevent any possible wrong positions caused by a
long period of working for the step valve without
closing, the controller after gTH hours, as soon as the
opening open percentage is under 20%, will force a
“go home” procedure:
1. Close the valve at max speed until the complete
closure is reached.
2. Perform extra steps (Est).
3. Re-open to the requested regulation position.
This position is valid for all the valves and has to be
done at set speed for each valve.

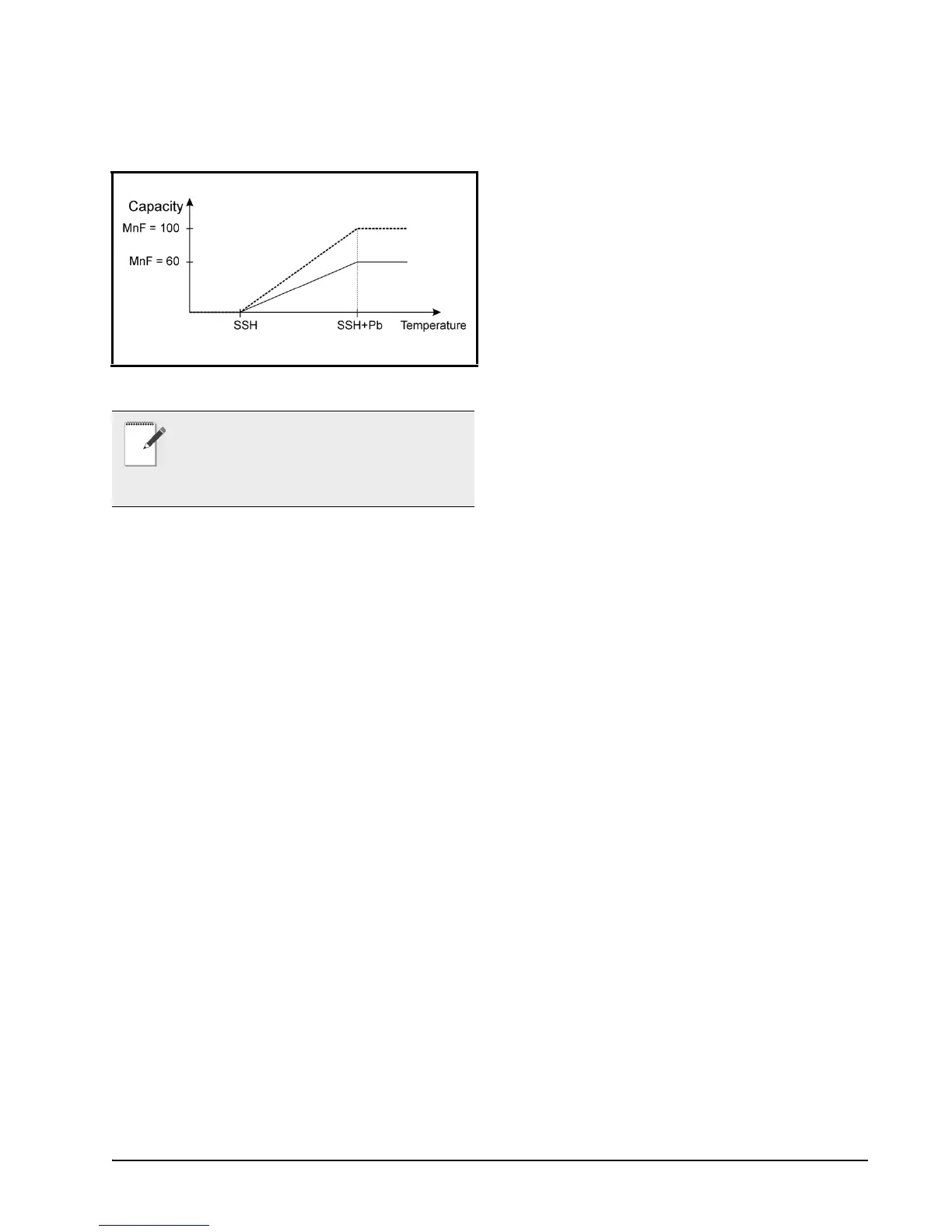

Figure 16-1 - Capacity of Valve in Adjusted MnF Parameter
NOTE: During the soft start phase
(oPE, SFd), MnF parameter is not taken in
consideration and the capacity of the valve is
set by the parameters oPE and oPd,
respectively.
