Emerson ZB Copeland Scroll User Manual

46
ZB15
~
ZB29 (BOM 524)
ZB Series

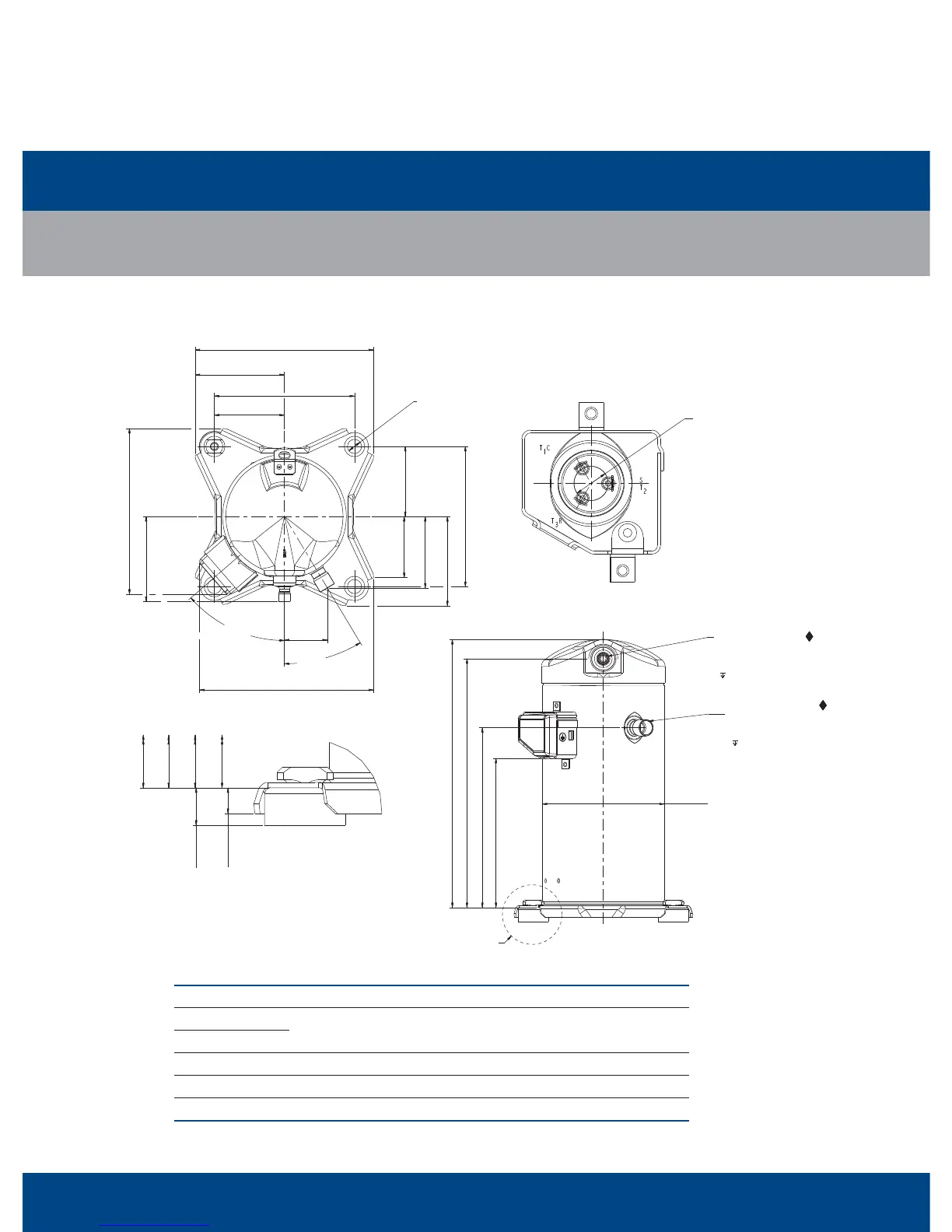

Dimensions Brazing Connection
Compressor model
ZB15KQ/ZB15KQE
ZB19KQ/ZB19KQE
ZB21KQ/ZB21KQE
ZB26KQ/ZB26KQE
ZB29KQ/ZB29KQE
A±3
363.8
386.4
400.2
417.8
B±3
338.3
360.9
374.6
389.9
C±3
244.5
264.4
277.1
294.1
D±3
202.9
222.8
235.5
252.5
Ø 165.9
A
B
C
D
See Detail A
Copper Plated Steel
Discharge Fitting Check Valve
ø12.78-12.95 I.D.
10.00 Min
Copper Plated Steel
Suction Fitting
ø19.12-19.30 I.D.
16.00 Min
0.038 Min
Thick Exterior and
0.038 Min
Thick Interior
239.6-245.6
121.3
190.5
95.3
95.3
83.1
97.3
121.3
190.5
58.4
236.5
225.3
115.5
49°
31°
4 x Ø 19.00-19.50
A
B
C
D
19.1
13.1
Detail A
Scale 2:1
ø17.45 Pin Circle
Models: TFD, TFE, TFM, TF7
ø13.46 Pin Circle
Models: PFJ, PFV, TFW, TF5, PFZ
Scale 2:1

Emerson ZB Copeland Scroll Specifications

General

Brand	Emerson
Model	ZB Copeland Scroll
Category	Compressor
Language	English
