Reassemble the WLCG/WLHG Cabinet
CAUTION
Verify the system is leak-free and all pip-
ing has been properly installed before
reassembling the cabinet.

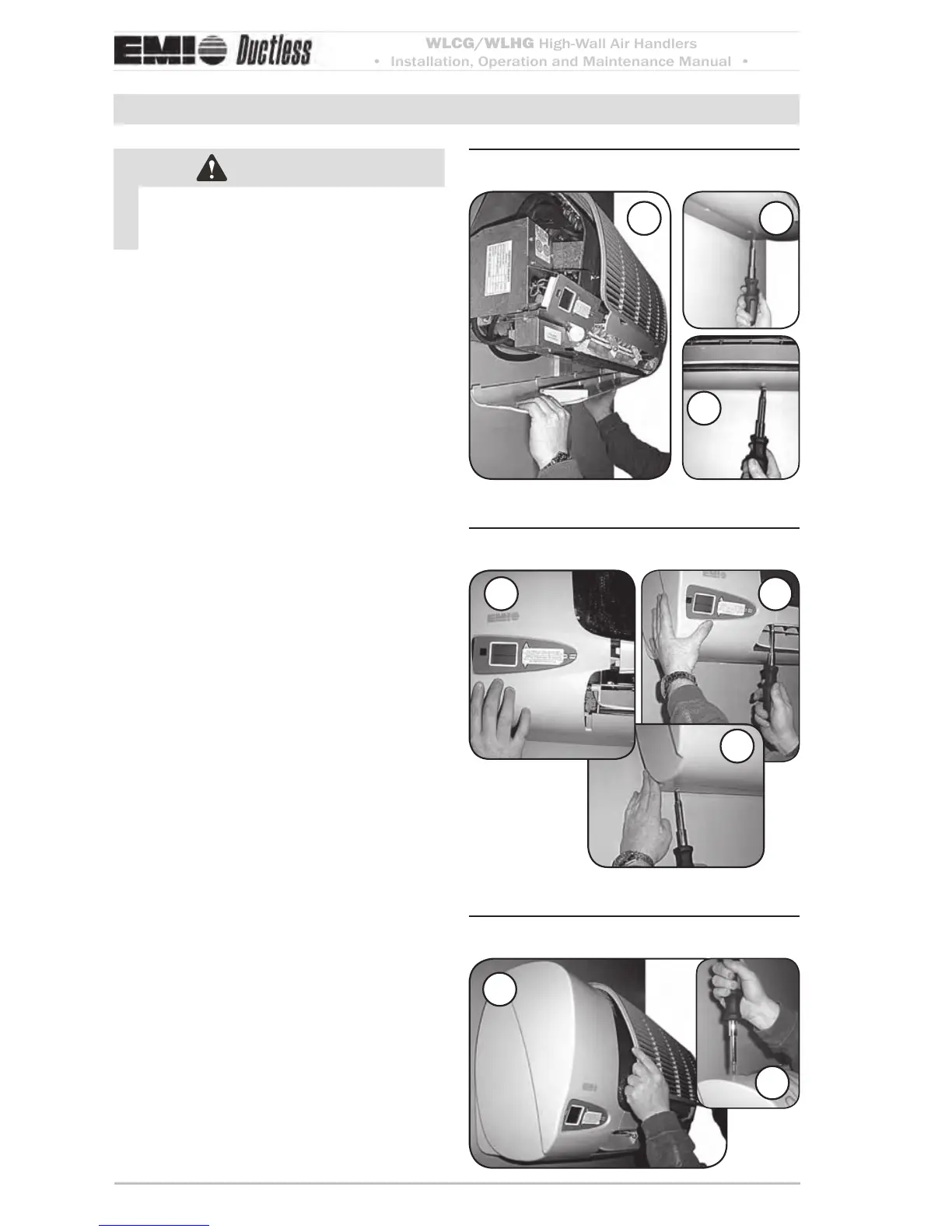

Reassemble the cabinet
Figure 23, Page 18
Replace the boom panel.1.
Fasten the right end cap rst using the 2.
Phillips head screw.
Replace and tighten the remaining screws 3.
across the boom panel.
Figure 24, Page 18
Replace the le end cap.4.
Once end cap is properly seated, tighten 5.
the screw on the right.
Tighten the boom end cap screw.6.
Figure 25, Page 18
Replace the grille.7.
Tighten the top screw on the left end 8.
cap.
Replace bottom panelFigure 23
1 2
3
Replace left end capFigure 24
4 5
6
Replace grilleFigure 25
7
8
