EMI WLHG09 - Piston;Orifice Replacement (When Required)

WLCG/WLHG High-Wall Air Handlers
• Installation, Operation and Maintenance Manual •
Comfort where it counts 6 P/N 240008111, Rev. G [06/18/10]
Piston/Orifice Replacement (when required)
NOTICE — WLHG24 ONLY
Piston/ Orifice replacement  e factory-installed piston/orice must be replaced on
Air-Handler / Condenser combitnations noted in table below
. All other applications are
to use the factory-installed orice. To replace the orifce in the noted models use instruc-
tions and chart as follows.
Replacing the piston/orifice
Follow the instructions on page 9 to remove the le end cap.1.
e piston orice (Figure 1, pg. 6) is located in the upper le corner of the unit.2.
Disassemble the orice joint, remove the factory-installed orice, and replace with the 3.
orice listed in Figure 1 (supplied in the Kit Bag). Make sure o-ring is in good condition
and properly installed.
e end cap can remain o while mounting and installing the unit.4.

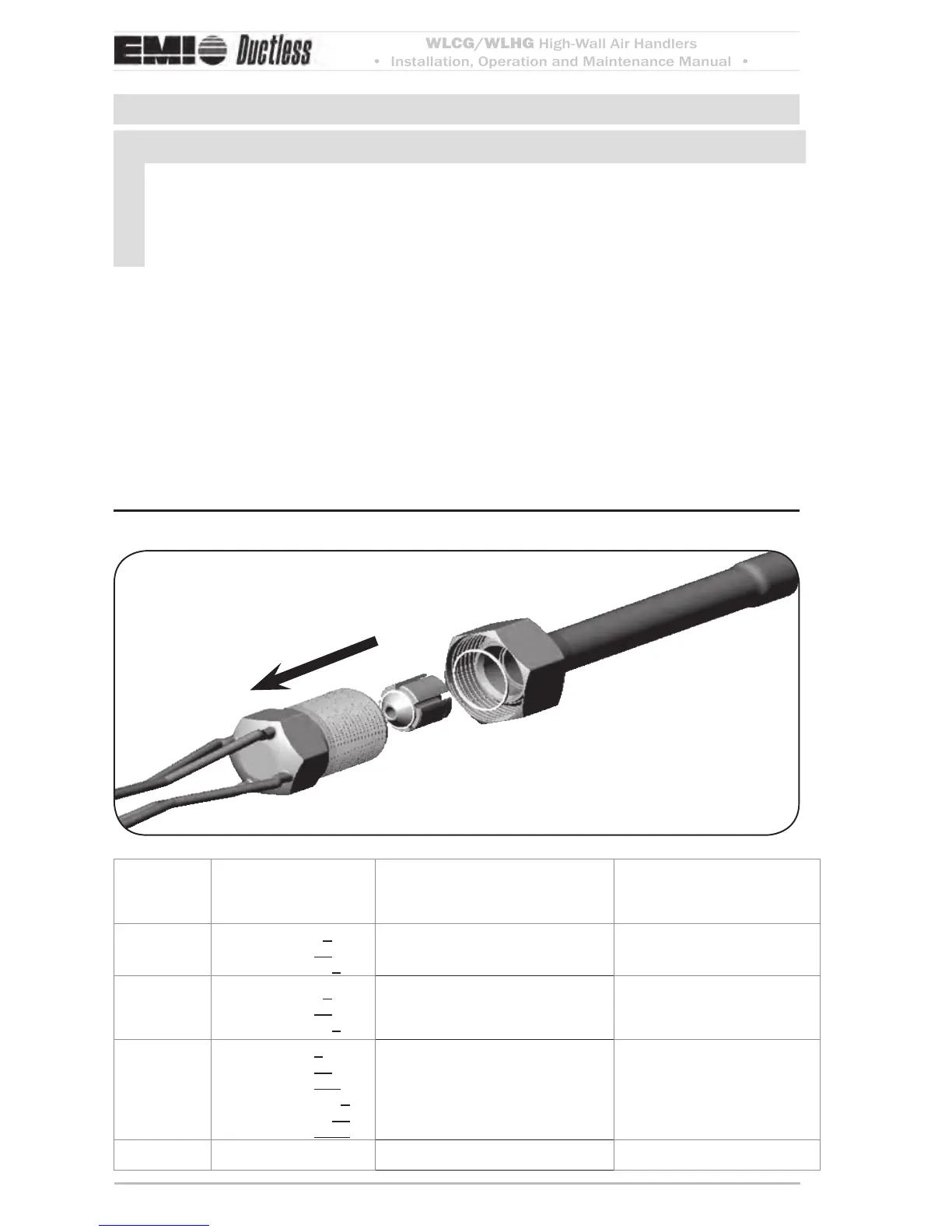

Piston/orifice replacementFigure 1
Model Condenser Factory-installed orifice size
(Inches)
Replacement orifice size
(Inches)
WLH_24
T2C/T2HG2400
T2C/T2HG4400
T3C/T3HG2240
0.054” 0.056”
WLH_24
T2C/T2HG9800
T2C/T2HG8800
T3C/T3HG9980
0.054” 0.049”
WLHA12
T2C/T2HG2400
T3C/T3HG2240
T3C/T3HG2220
T4C/T4HG9992
T4C/T4HG9922
T4C/T4HG2222
0.042” 0.044”
WLH_24 S1C/S1HG8000 0.054” 0.047”
To Air
Handler
