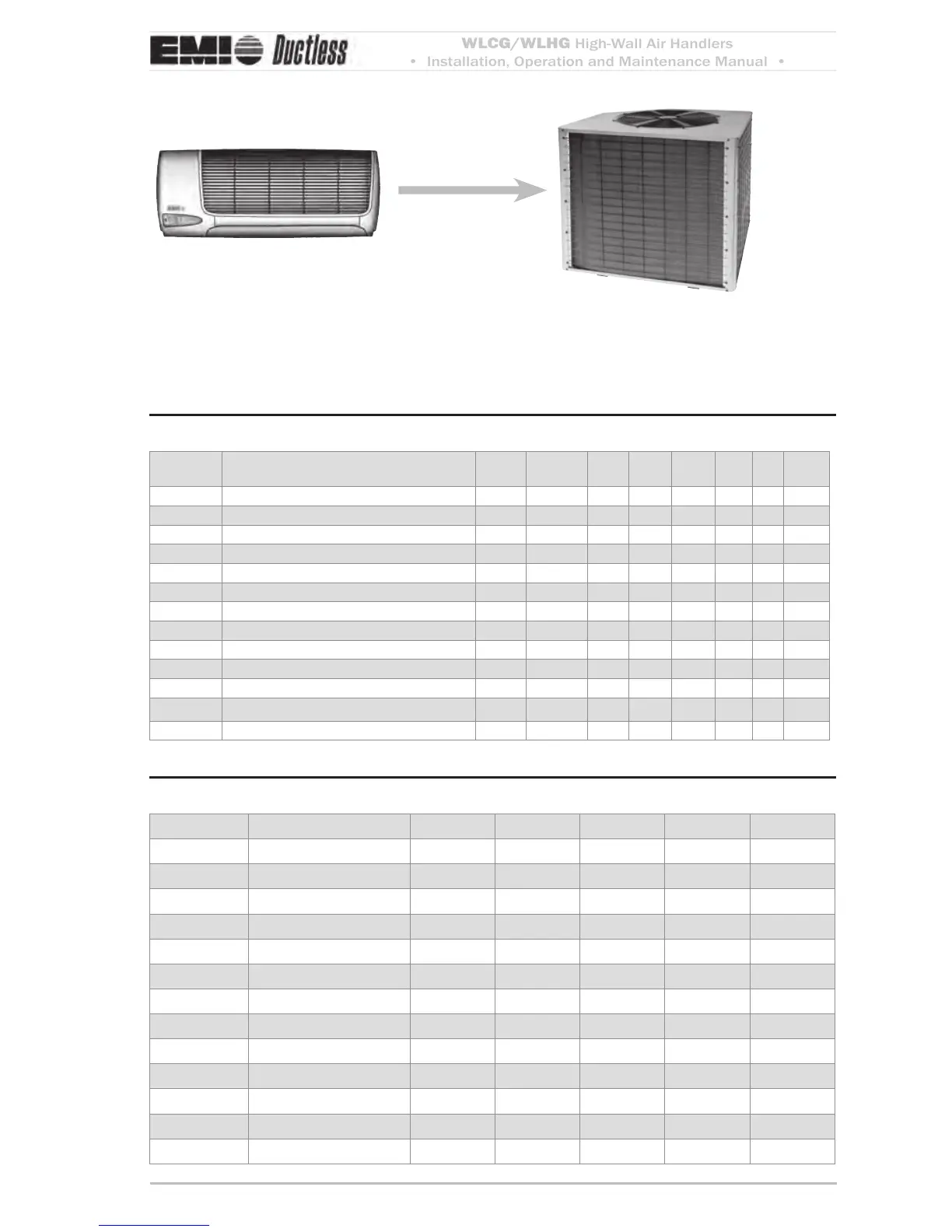

EMI WLHG09 - Page 45

WLCG/WLHG High-Wall Air Handlers
• Installation, Operation and Maintenance Manual •
P/N 240008111, Rev. G [06/18/10] 45
Heat pump system with wall unitsTable 10
Condenser Wall unit
Cooling
Btuh
Heating
Btuh
SEER HSPF SHR EER COP Ref.
T2HG2400 WLHG12, WLHG24 35,800 32,400 13.0 7.7 0.69 11.5 3.2 410A
T2HG4400 (2) WLHG24 47,500 44,000 13.0 7.7 0.67 11.5 3.1 410A
T2HG9800 WLHG09, WLHG24 27,000 25,000 13.0 7.7 0.76 11.5 3.4 410A
T2HG8800 (2)WLHG244 36,000 33,000 13.0 7.7 0.74 11.5 3.4 410A
T3HG2220 (3)WLHG12 36,000 31,200 13.0 7.7 0.72 11.5 3.1 410A
T3HG2240 (2) WLHG12, WLHG24 47,500 42,500 13.0 7.7 0.71 11.5 3.1 410A
T3HG9920 (2) WLHG09, WLHG12 30,000 27,400 13.0 7.7 0.76 11.5 3.3 410A
T3HG9980 (2) WLHG09, WLHG24 36,000 33,500 13.0 7.7 0.76 11.5 3.4 410A
T3HG9990 (3)WLHG09 27,000 25,500 13.0 7.7 0.78 11.5 3.5 410A
T4HG2222 (4)WLHG12 48,000 41,500 13.0 7.7 0.72 11.5 3.1 410A
T4HG9922 (2)WLHG09, (2)WLHG12 42,000 37,800 13.0 7.7 0.74 11.5 3.2 410A
T4HG9992 (3)WLHG09, WLHG12 39,000 35,900 13.0 7.7 0.76 11.5 3.4 410A
T4HG9999 (4)WLHG09 36,000 34,000 13.0 7.7 0.78 11.5 3.5 410A
Cooling system with wall unitsTable 11
Condenser Wall units Btuh SEER SHR EER Ref.
T2CG2400 WLHG12,WLHG24 35,800 13.0 0.69 11.5 410A
T2CG4400 (2) WLHG24 47,500 13.0 0.67 11.5 410A
T2CG9800 WLHG09, WLHG24 27,000 13.0 0.76 11.5 410A
T2CG8800 (2)WLHG24 36,000 13.0 0.74 11.5 410A
T3CG2220 (3)WLHG12 36,000 13.0 0.72 11.5 410A
T3CG2240 (2) WLHG12, WLHG24 47,500 13.0 0.71 11.5 410A
T3CG9920 (2) WLHG09, WLHG12 30,000 13.0 0.76 11.5 410A
T3CG9980 (2) WLHG09, WLHG24 36,000 13.0 0.76 11.5 410A
T3CG9990 (3)WLHG09 27,000 13.0 0.78 11.5 410A
T4CG2222 (4)WLHG12 48,000 13.0 0.72 11.5 410A
T4CG9922 (2)WLHG09, (2)WLHG12 42,000 13.0 0.74 11.5 410A
T4CG9992 (3)WLHG09, WLHG12/ 39,000 13.0 0.76 11.5 410A
T4CG9999 (4)WLHG09 36,000 13.0 0.78 11.5 410A
T2CG/T2HG, T3CG/
T3HG and
T4CG/T4HG 2, 3 and 4
Zone
Top Discharge
WLCG/WLHG
