62
GBGB

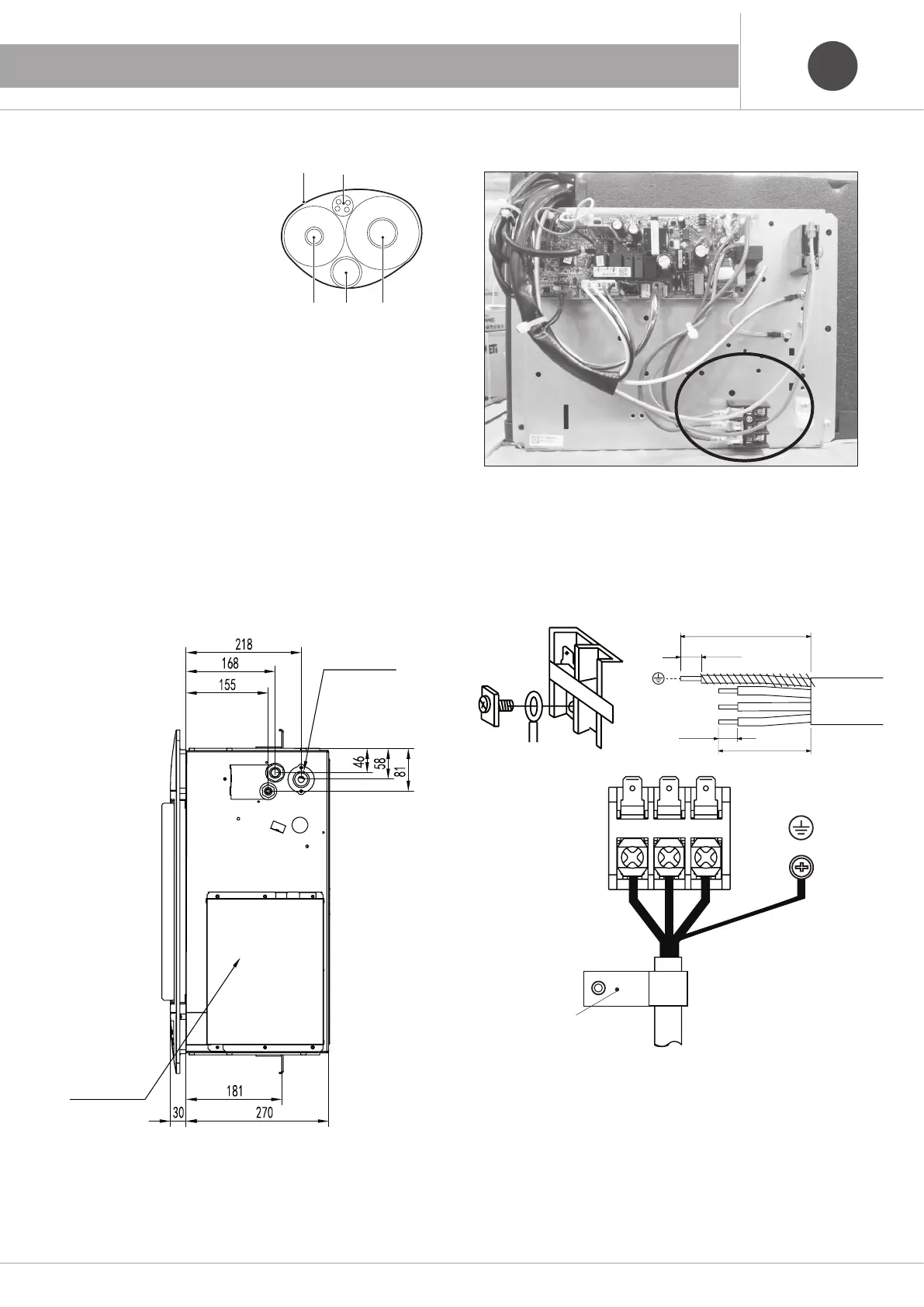

6. INSTALLATION OF THE INDOOR UNIT
Connection to the indoor unit terminal block
- Remove the electric box cover
- Insert the cable in the cable gland
- Loosen the screws and insert the cable ends completely in the terminal
block, after this tighten the screws.
All'unità esterna
Unità interna
70 mm
10 mm
10 mm
50 mm
electrical Box
drain pipe-
- At the end of the installation, refit the front panel, the air filter and the
air inlet grille
1(L)
2(N)
4(SI)
Connection cable
Cable gland
Aluminized tape
Refrigeration piping
Indoor unit condensation drain
Electrical connection cable
between the units
-
Provide to use a protection sheet for the cables exposed to the outside.
- It is recommended to set the cables with a drip-proof run in order to
avoid possible infiltrations of water in the outdoor unit.
- Combine the electrical connection cable of the two units to the refrige-
ration piping and wrap with reinforced tape, possibly alluminized.
- If the cable cannot be solid with the piping, make a suitable wall ancho-
rage by means of a cable fastener or hose clips.
- Pull lightly on the cable to make sure that the cables have been inserted
and secured properly.
- After connecting the cables, never forget to tighten them to the cable
gland.
