Fire detectors
Fire detectors will be fitted throughout the building where
fire detection is required.
Fire detectors can be triggered by smoke and / or an
increase in heat, depending on their configuration.
In the event of a fire, the fire detector will send a signal to
the fire control panel, resulting in the fire alarm’s sounders
operating.
The fire control panel will oen be located in the
building’s main entrance, ensuring it is easily found by
the fire services if a fire occurs.
The main purpose of a fire control panel is to work in
conjunction with the system’s fire devices, to detect fire
and to alert people via fire sounders and beacons.
The operation of this SmartCell fire control panel is
outlined in more detail in this manual.
SmartCell fire control panel
Manual call points
In the event of a fire, Manual Call Points (MCPs) can be
operated to notify other people in the building.
When operated, the MCP will send a signal to the fire
control panel, resulting in the fire alarm’s sounders
operating.
The MCP is operated by raising the protective cover and
pressing the white rectangular plate. The device’s red fire
LED will illuminate to confirm operation.

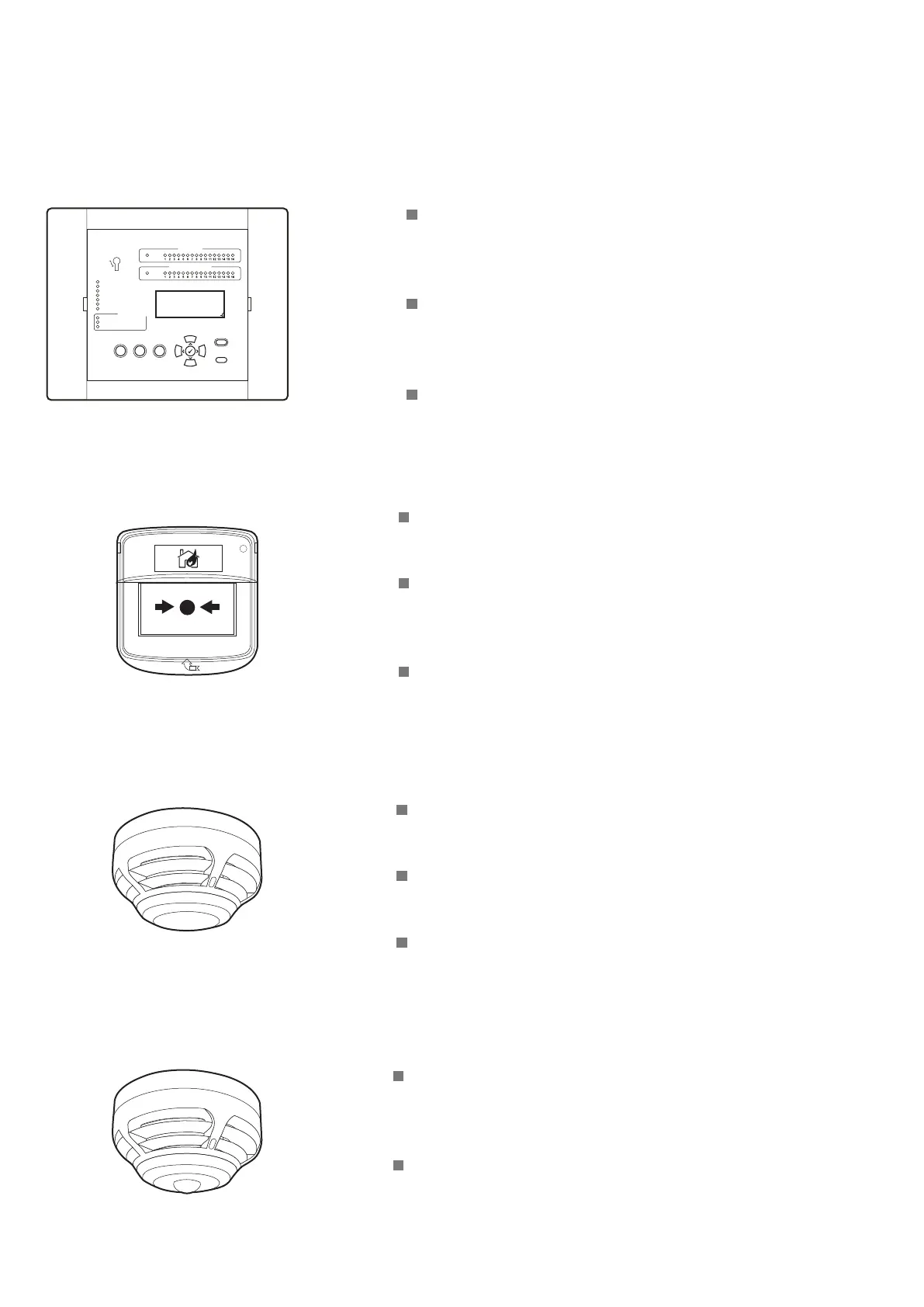

A typical fire alarm system will generally consist of the following equipment:
A typical fire alarm system
Approved to EN54-2, EN54-4, EN54-13, EN54-21*
and EN54-25. * Communications module required.
Approved to EN54-11, EN54-13 and EN54-25.
Approved to EN54-5, EN54-7, EN54-13 and
EN54-25.
Fire detectors with sounders
Fire detectors with integrated sounders combine the
attributes of detectors and sounders avoiding the use of
separate units.
Fire detectors with sounders are also available with
integrated beacons.
Approved to EN54-3, EN54-5, EN54-7, EN54-13,
EN54-23* and EN54-25. *Beacon Variants Only.
SOUND/
SILENCE
SILENCE
BUZZER
RESET
COMMUNICATIONS
ALARM TRANSMITTED
FAULT/DISABLED
HEALTHY
DELAYS ACTIVE
SYSTEM FAULT
SOUNDER FAULT/DISABLED
GENERAL FAULT
GENERAL DISABLEMENT
IN TEST
POWER
ALERT
FIRE ZONES
INFORMATION ZONES
FIRE
ALARMS
FUNCTION 1
FUNCTION 2
1
2
3
4
1
0
Fire Control Panel
System Normal
12:12 Access
