emz smart Sol - Page 35

Page 35
TS3
TS2
TS1
TS4
RO1
Tank 1
T1
Collector
sensor 1
Solar circuit
pump 1
Tank
sensor 1,
bottom
Collector
sensor 2
RO2
Solar circuit
pump 2
Tank
sensor 1, top

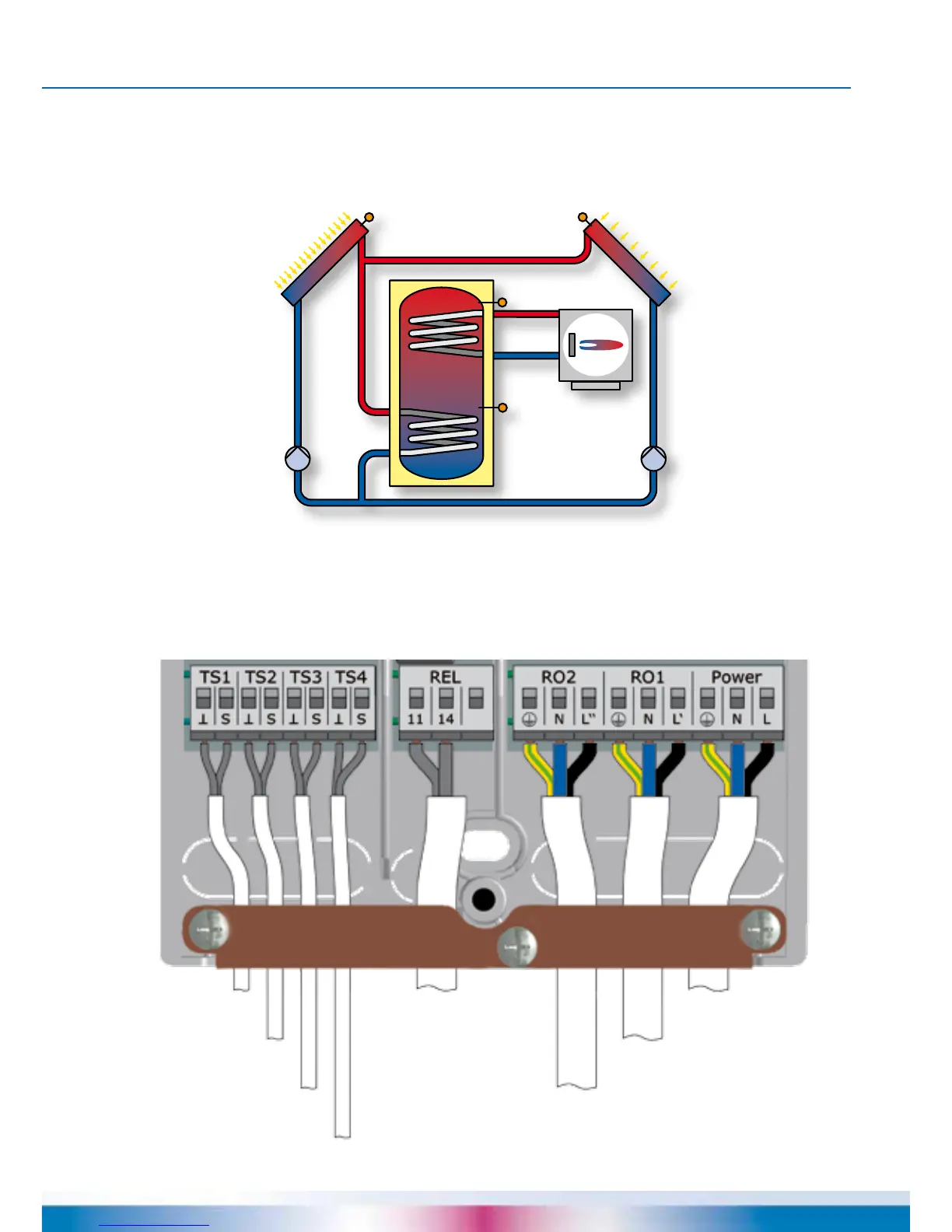

HYDRAULIC SYSTEM 15
Collector sensor 2
Tank sensor 1, top Solar circuit pump 2
Connection to
power supply
Collector sensor 1
Solar circuit pump 1
Tank sensor 1, bottom
heating boiler con-
nection according to
page 45-46
