emz smart Sol - Page 36

Page 36
RO1
TS1
TS2
Tank 1
T1
Collector
sensor 1
Solar
circuit
pump 1
Tank
sensor 1,
bottom
TS3
Tank
sensor
1, top
Three-way valve,
return temperature
increase
REL
TS4
Return line
sensor

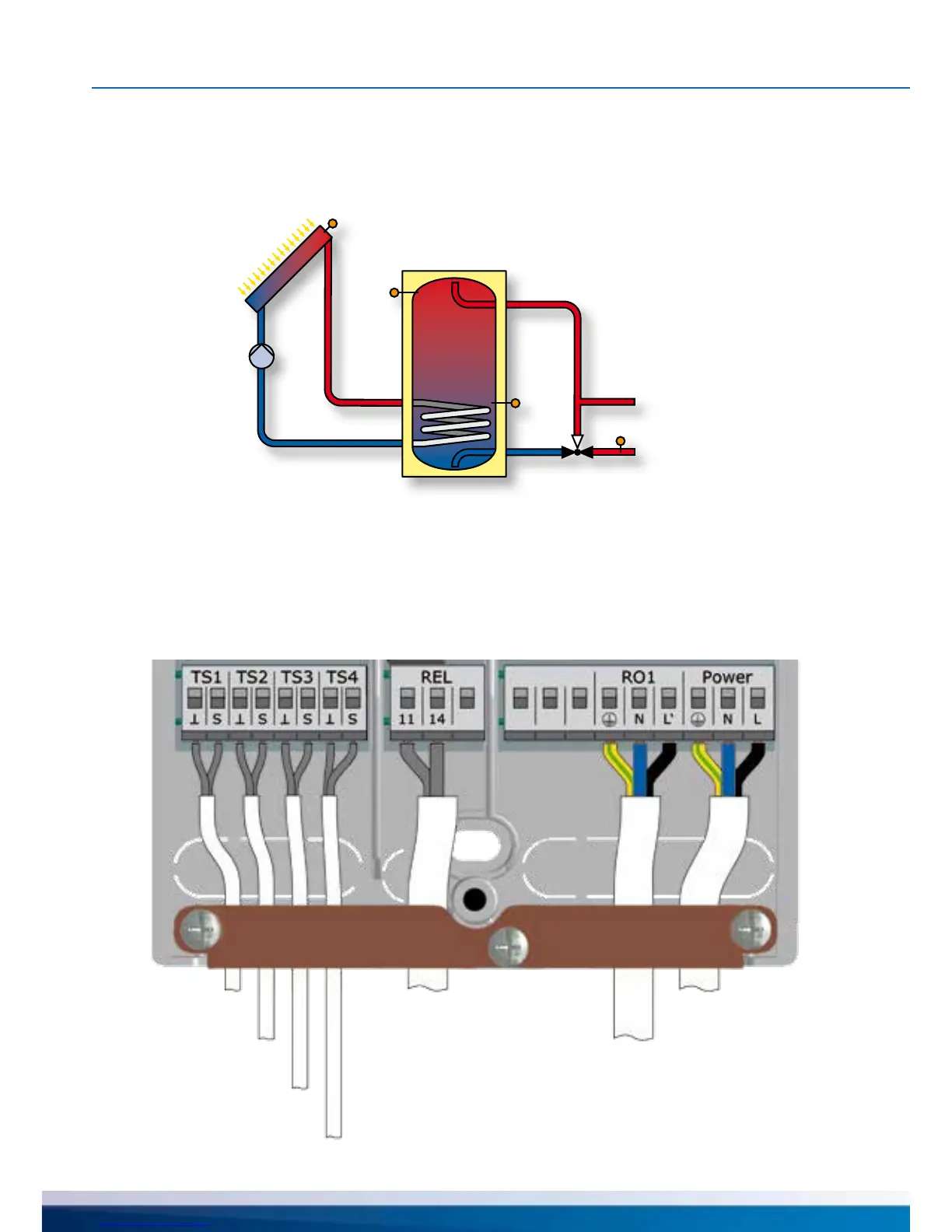

HYDRAULIC SYSTEM 16
Note: Heating return tempera-
ture increase only possible at
the REL output!
Return line sensor
Three-way valve,
return temperature
increase
Connection accord-
ing to page 16
Tank sensor 1, top
Connection to
power supply
Collector sensor 1
Solar circuit pump 1
Tank sensor 1, bottom
