Page 53
System 1
04. 07. 2015 09:24
1
0.7 Checklist
04. 07. 2015 09:25
Test outputs
Holiday function
Next
0.7.1 Test outputs
04. 07. 2015 09:25
RO1
RO2
REL
Off
Off
Off
Next

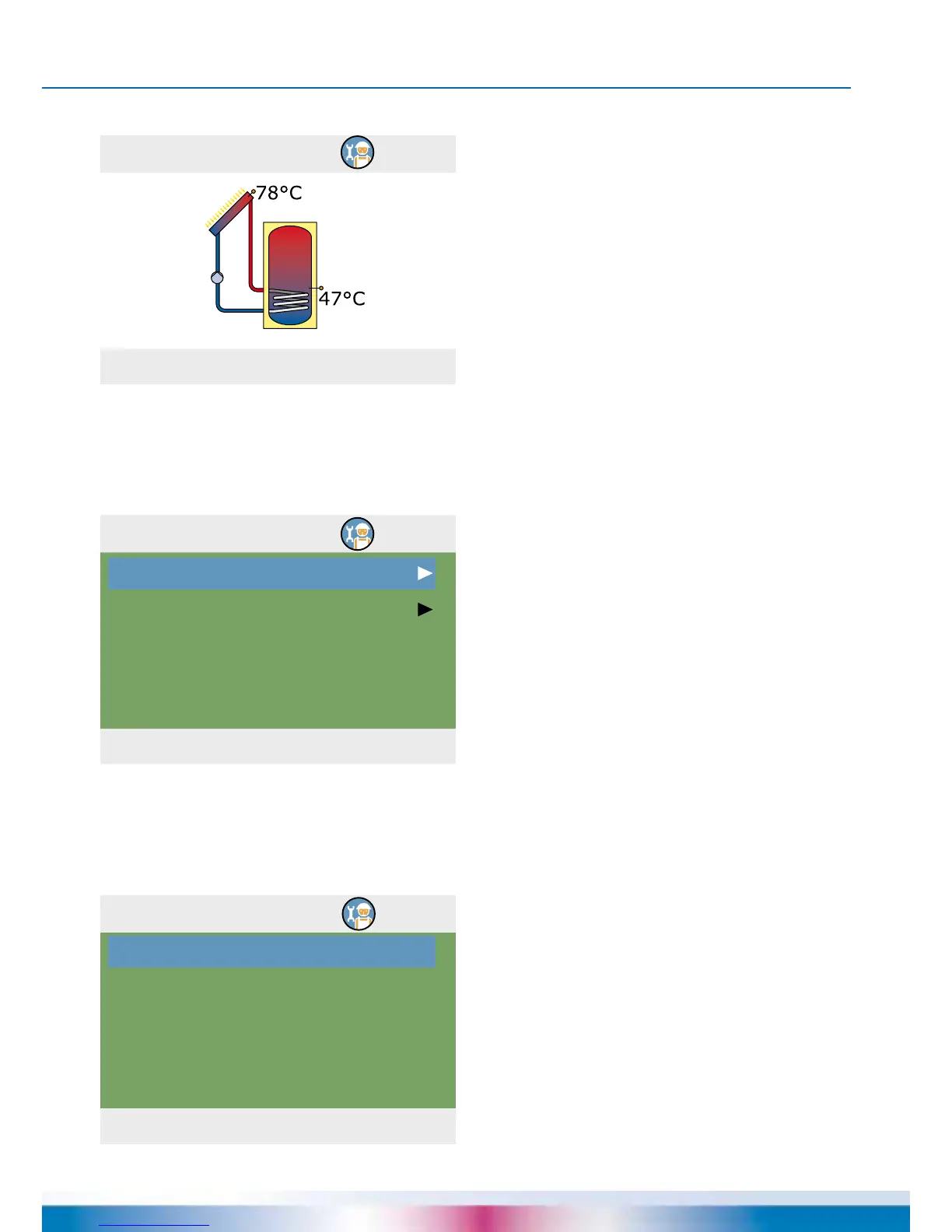

All hydraulic schemes which are possible due
to your input are displayed.
Make your selection by scrolling with the ro-
tary encoder and acknowledge with „OK“.
„0.7 Checklist“ appears.
Check the function by selecting „Test out-
puts“.
COMMISSIONING MODE
„0.7.1 Test outputs“ appears.
Select output, activate with „OK“, select „On“
on the rotary encoder and activate it with
„OK“. The connected pump and/or the con-
nected valve must now be activated.
Complete the test operation by pressing
„Next“.
