1.3.7 Solar pump 1
04. 07. 2015 10:35
Algorithm
Overtravel time
n min.
n max.
dT
0s
50%
100%
1.3.7 Tank ch.-ove...
04. 07. 2015 10:35
Algorithm
Overtravel time
Inverted
dT
0s
1.3.2 Tube collector
04. 07. 2015 10:35
Activation
Start
t-ON
T ON
t solar 1
time-dependent
10min
20.0°C
20s
PROFESSIONAL MODE

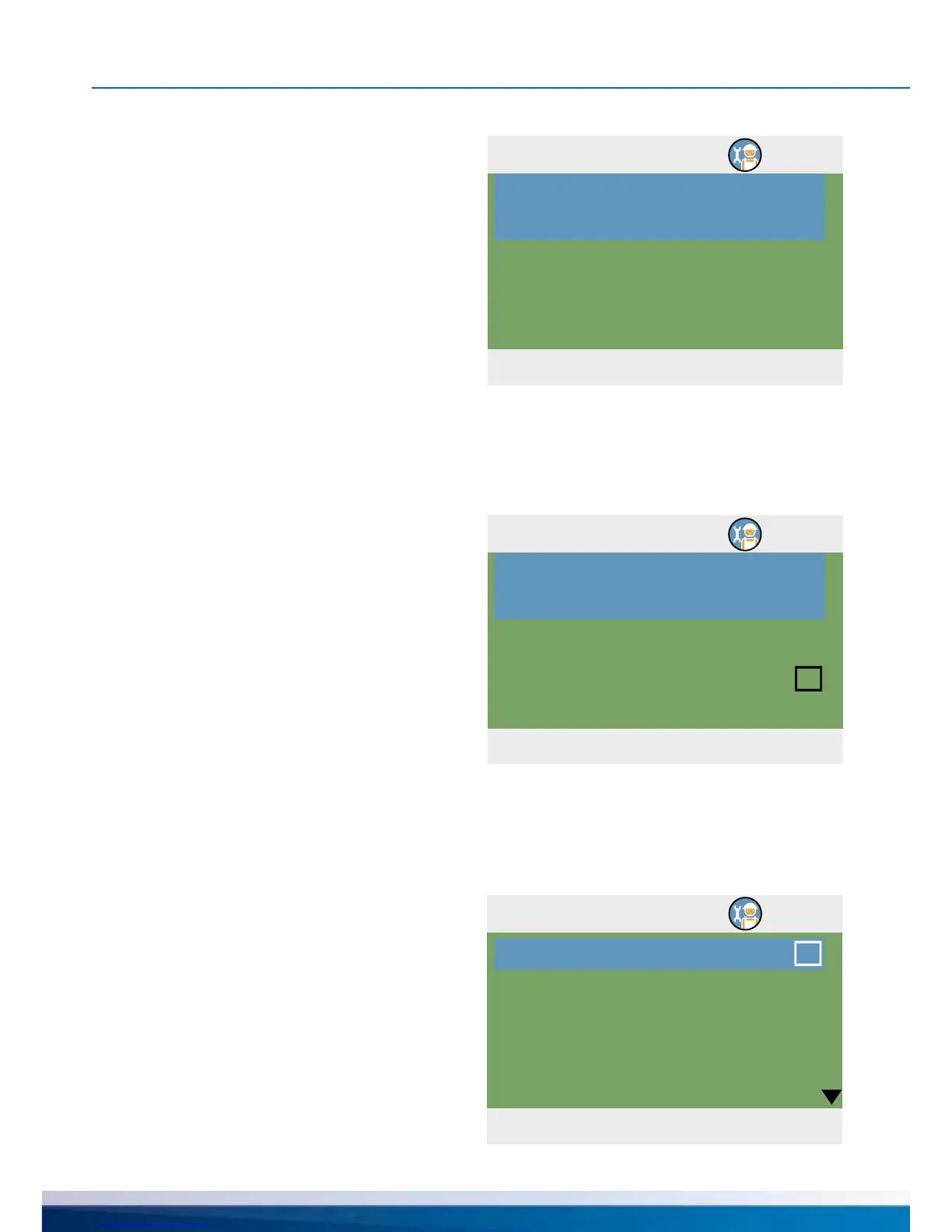

Similarly, the sub menu for valve control.
The „Inverted“ function inverts the switching
function of valves, e.g. if valve installation
does not comply with the standard.
The controller will then exchange energized
and de-energized conditions.
Continue to menu item ›Tube collector‹.
To receive correct measured values from
the tube collector system, the pump
must be switched ON briey.
By activation of the function, the
solar circuit pump can be started
time- and/or temperature-controlled.
The time sequence, the pump ON time and ...
...to dene the required control
algorithm as ›dT‹ or ›Fixed T‹.
In case of plants with long piping or slow
response, overtravel times for the solar
circuit, pump and valve can be determined.
Specify minimum and maximum output n-min
/ n-max of the pump.
