Flowmeter Proline 200 Electrical connection
Endress+Hauser 23
7. Reverse the removal procedure to reassemble the connection housing.

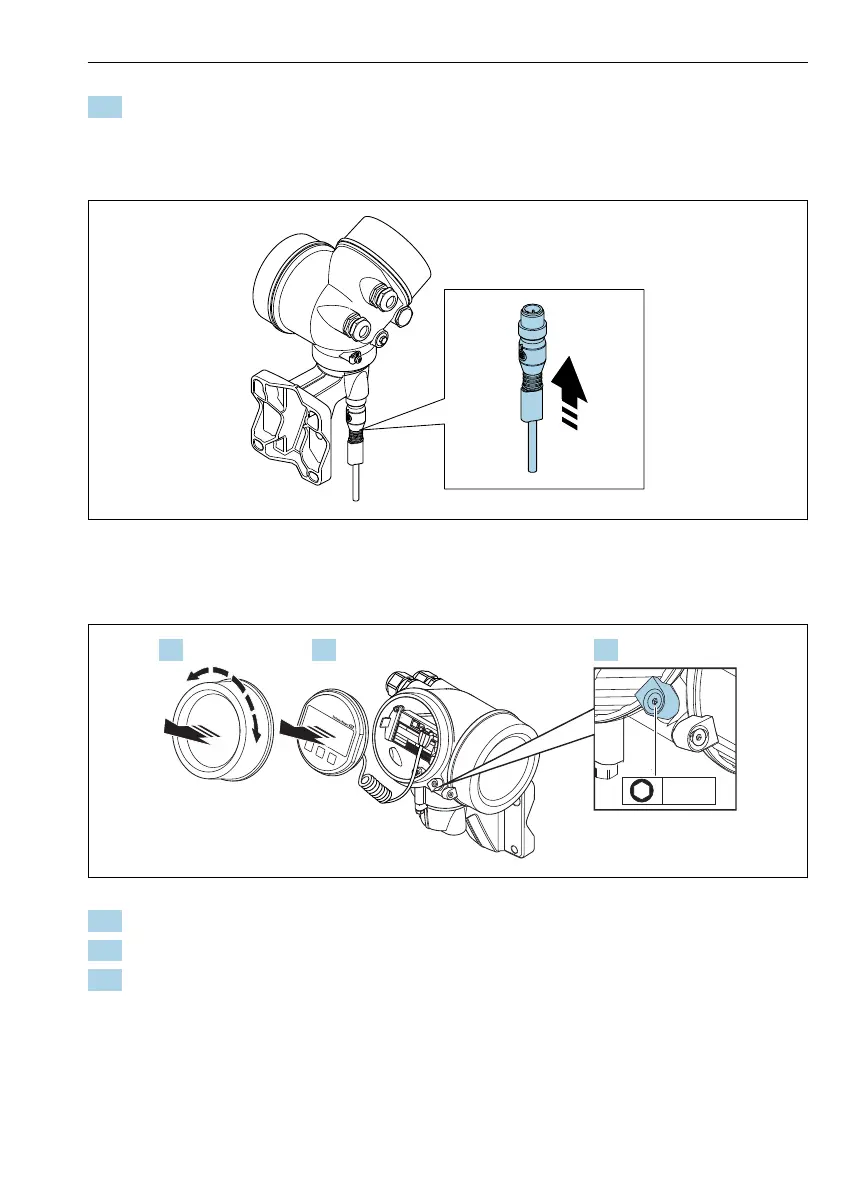

Connecting the transmitter
Connecting transmitter via plug
A0034172
‣
Connect the plug.
Connecting transmitter via terminals
+
E
–
3 mm
1.2. 3.
A0034173
1. Loosen the securing clamp of the electronics compartment cover.
2. Unscrew the electronics compartment cover.
3. Pull out the display module with a gentle rotational movement. To make it easier to
access the lock switch, attach the display module to the edge of the electronics
compartment.
