Electrical connection Flowmeter Proline 200
24 Endress+Hauser
8 mm
TX 10
4.
5.
A0034174

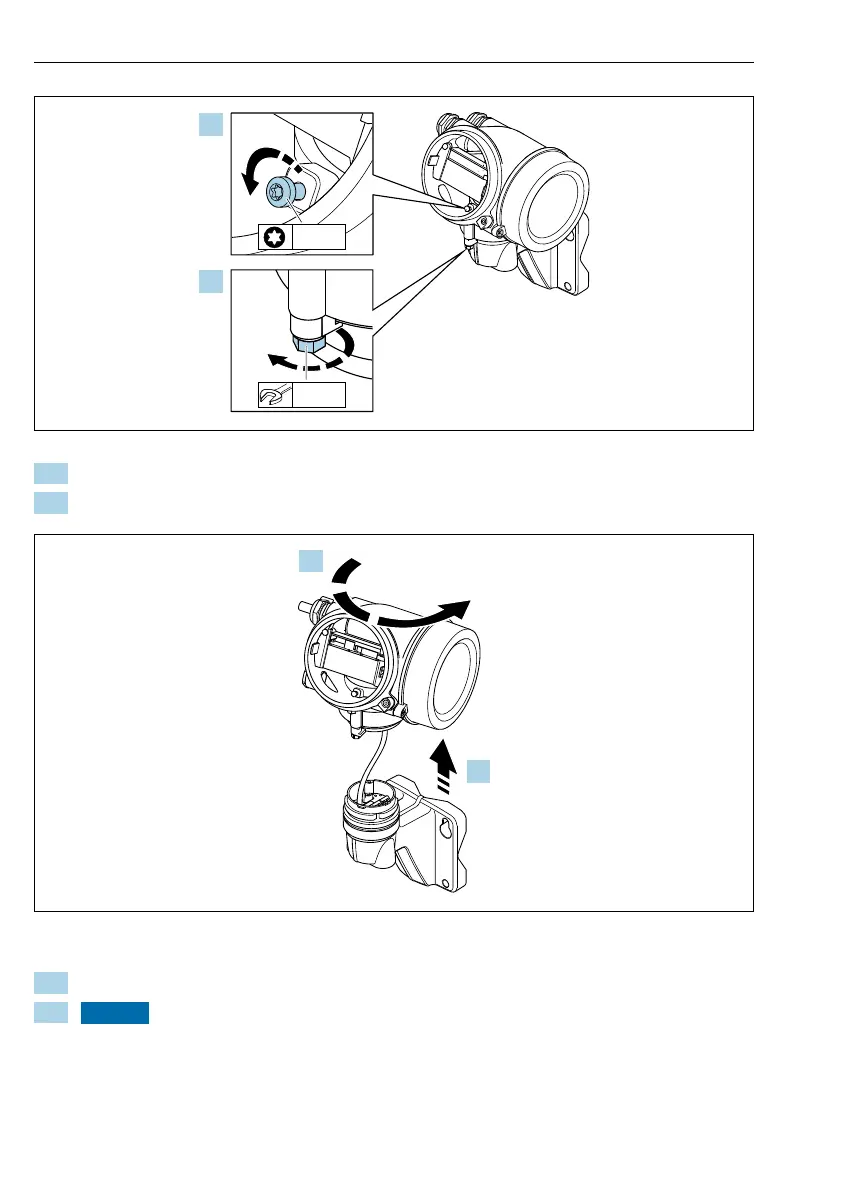

4. Loosen the locking screw of the transmitter housing.
5. Loosen the securing clamp of the transmitter housing.
~15°
6.
7.
A0034175
 5 Sample graphic
6. Turn the transmitter housing to the right until it reaches the marking.
7.
NOTICE
The connection board of the wall housing is connected to the electronics board of
the transmitter via a signal cable!
‣
Pay attention to the signal cable when lifting the transmitter housing!
Lift the transmitter housing.
