HART Loop Converter HMX50
• When the value of the trip point is out of range (exceeded or not reached) for a period of
time longer than the delay time, the relay switches.
• When the value of the trip point ± hysteresis is in range (not reached or exceeded) for a
period of time longer than the delay time, the relay switches back.
• Shorter overranges/underranges do not have an effect.

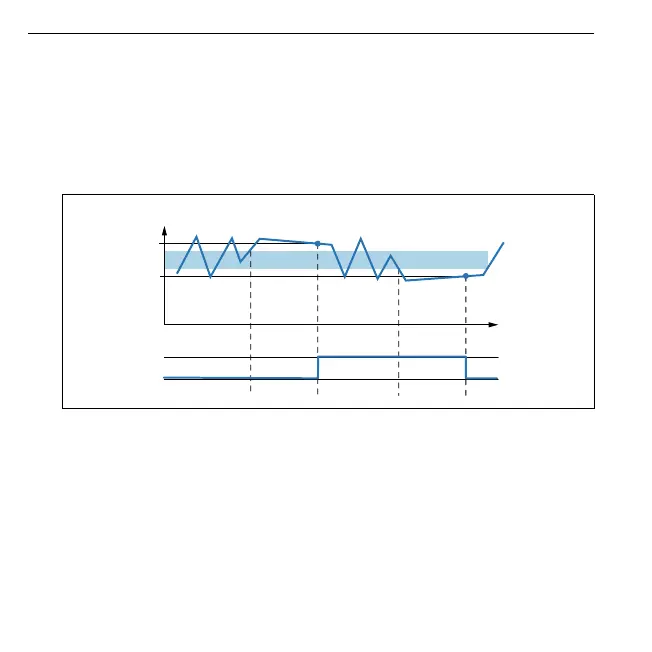

The following illustration shows an example of switching characteristics with response
delay:
A0034633
A Max. trip point
BMax - hysteresis
C Switching direction MAX, switching mode Active, with delay
1 Measured value
2energized
3 de-energized
t
1
A
B
C
2
3
