Installation Nivector FTI26
12 Endress+Hauser
≥20 (0.8)
G 1"
A0036360

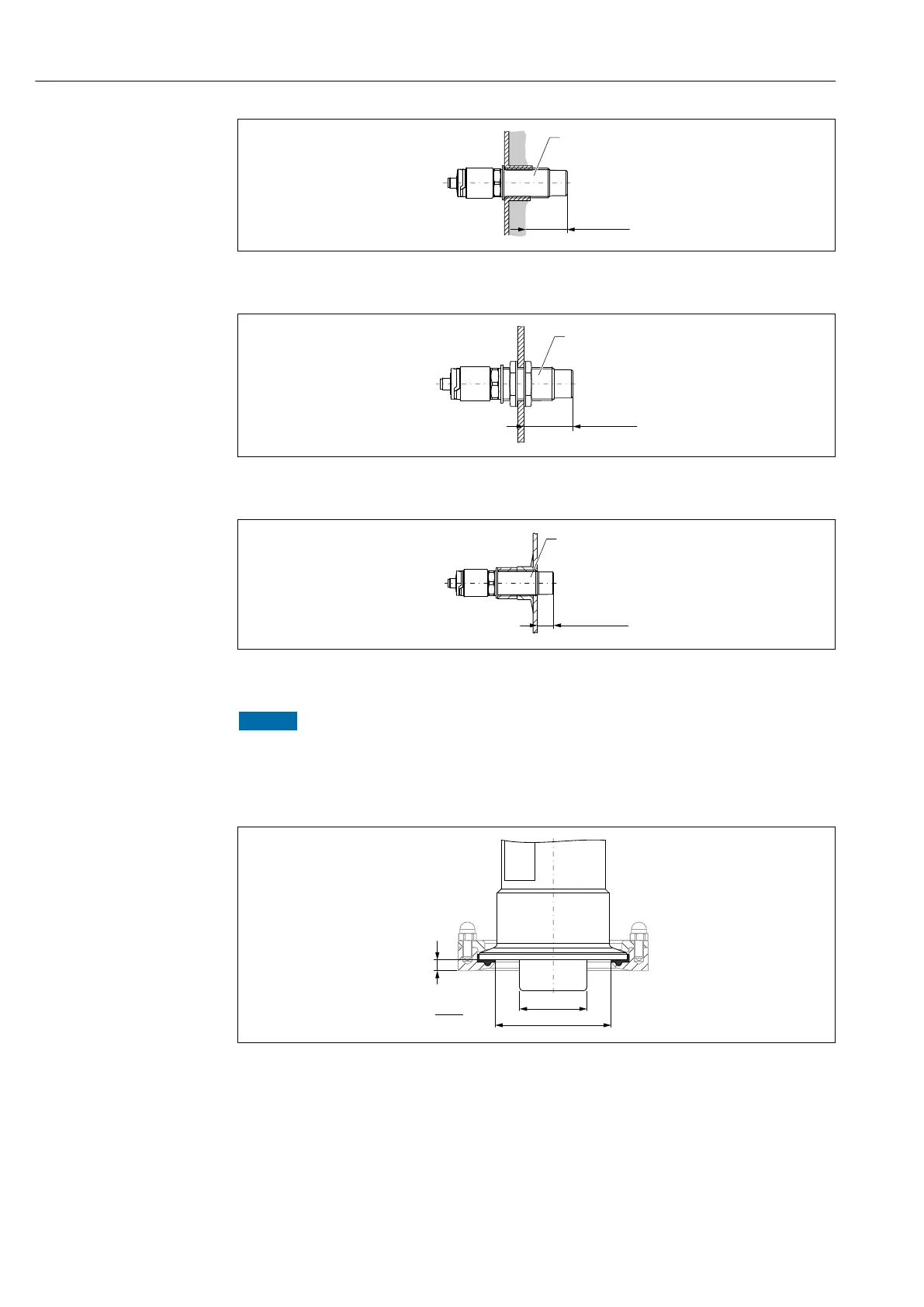

 4 Where buildup occurs on the silo wall with internal G 1" threaded adapter
≥20 (0.8)
G 1"
A0036359
 5 Bore hole in silo wall with lock nuts, can be ordered as an accessory →  22
13.5 (0.53)
G 1"
A0036362
 6 Installation with weld-in adapter, can be ordered as an accessory →  22
NOTICE
Installation in a conventional T-section or in a metallic tank nozzle reduces the
measuring performance of the sensor.
‣
Install Tri-Clamp version, e. g. NA Connect adapter for hygiene-compliant connection.
This minimizes dead legs and increases cleanability.
A
!B
!C
A
C - B
<
=
1
A0036363
 7 Installation with Tri-Clamp, which can be ordered as an accessory, →  22and with NA Connect
adapter provided by customer
A Distance between Tri-Clamp and NA Connect adapter
B Diameter of Nivector
C Diameter of NA Connect adapter
