Proservo NMS80 Installation
Endress+Hauser 13
5.1.2 Mounting with guide wires
It is also possible to guide the displacer with guide wires to prevent swinging.
2
1
3
7
4
8
12
13
9
10
11
5
6
100 (3.94)
A
B
C
D
A0026819

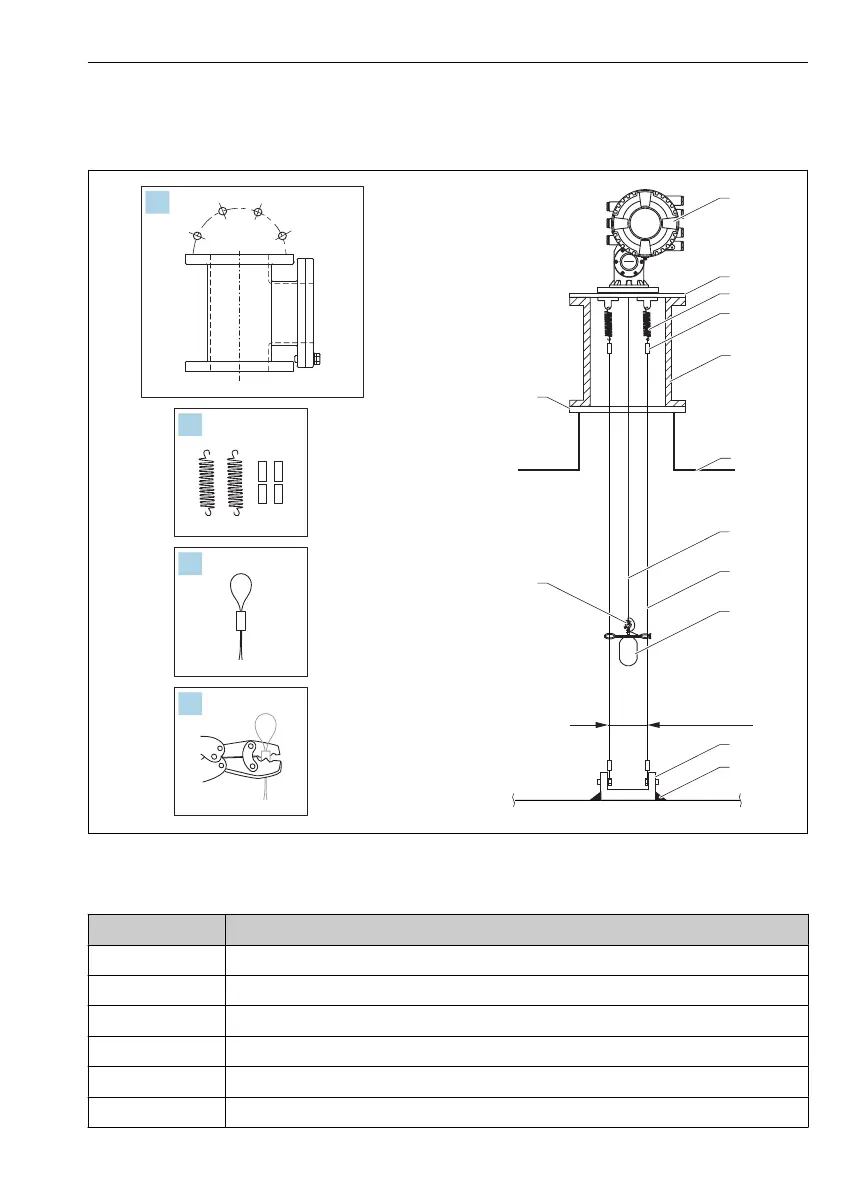

 3 Guide wire; dimensions mm (in)
No. Description
A Maintenance chamber
B Spring and sleeve
C Guide wire sleeve
D Crimp tool
1 NMS8x
2 Reducer plate (incl. guide wire option)
