Installation Proservo NMS80
14 Endress+Hauser
No. Description
3 Spring, SUS304 (incl. guide wire option)
4 Sleeve, SUS316 (incl. guide wire option)
5 Maintenance chamber
6 Tank
7 Measuring wire
8 Guide wire, SUS316 (incl. guide wire option)
9 Displacer with rings (incl. guide wire option)
10 Anchor hook plate, SUS304 (incl. guide wire option)
11 Welding point
12 Wire ring, SUS316L
13 Flange
5.2 Mounting of the device
The NMS8x is delivered in two different packing styles depending on the mounting method of
the displacer.
• For the all-in-one method, the displacer is mounted on the measuring wire of NMS8x.
• For the displacer shipped separately method, it is necessary to install the displacer on the
measuring wire inside NMS8x.

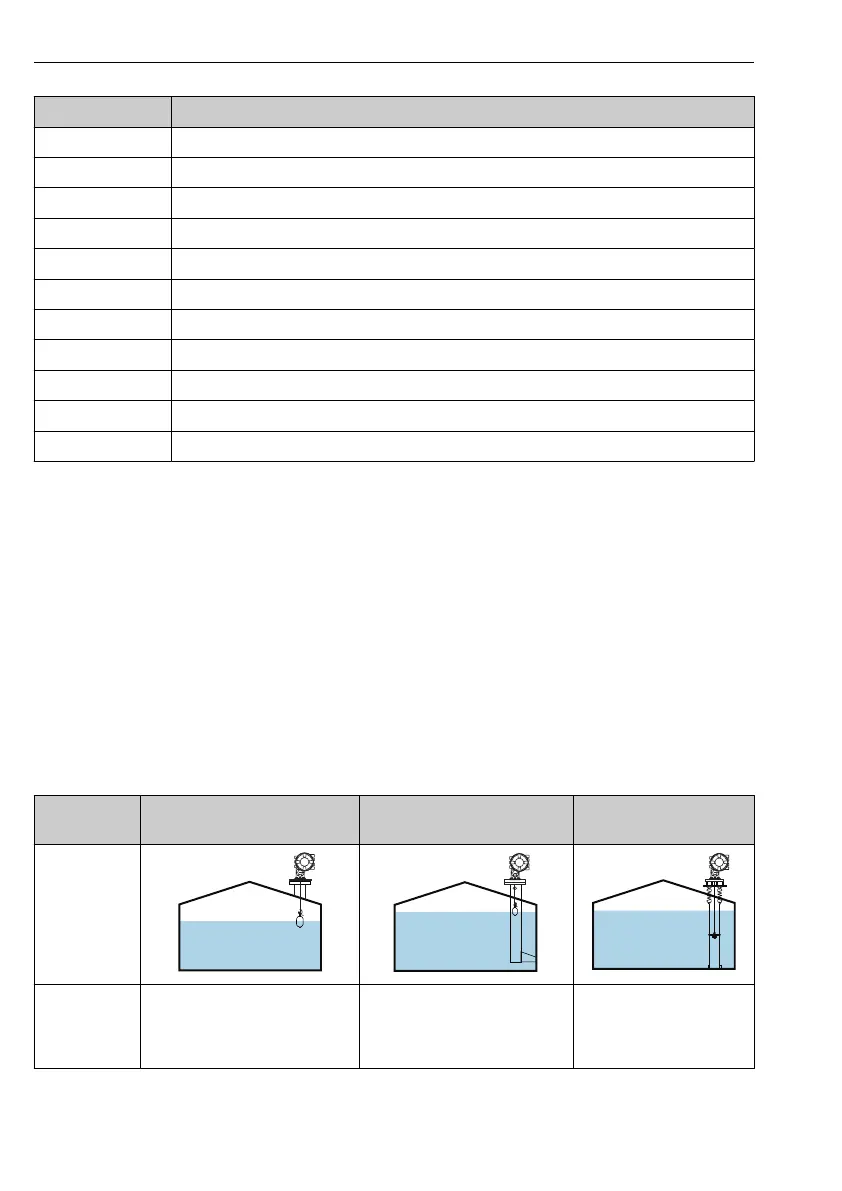

5.2.1 Available installations
The following installation procedures are available for NMS8x.
• Mounting without guide system
• Mounting with stilling well
• Mounting with guide wire
Mounting
options
Without guide system
(Free-space mounting)
With stilling well With guide wire
Type of tanks
Type of
installations
• All-in one
• Displacer shipped separately
• Displacer installation through
calibration window
• All-in one
• Displacer shipped separately
• Displacer installation through
calibration window
Displacer shipped separately
