Commissioning Proservo NMS80
68 Endress+Hauser
To configure an alarm, assign appropriate values to the following parameters:
Submenu: Setup → Advanced setup → Application → Alarm → Alarm 1 to 4
Parameter Meaning / Action
Alarm mode • Off
No alarms are generated.
• On
An alarm disappears if the alarm condition is no longer present (taking into consideration the
hysteresis).
• Latching
All alarms remain active until the user selects Clear alarm = Yes.
Alarm value source Select process variable to be checked for limit violation.
• HH alarm value
• H alarm value
• L alarm value
• LL alarm value
Assign appropriate limit values (see diagram above).
7.8 Configuration of the signal output
7.8.1 Analog output 4 to 20 mA output
D
E
F
C
B
A
1
1
1
1 3
2
2 4
1
HR
CDI
WP
on
SIM
2
2
3
3
4
4
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
POWER
i
B
B1-3 B4-8
1 2 3 4 5 6 7 8
A0032464

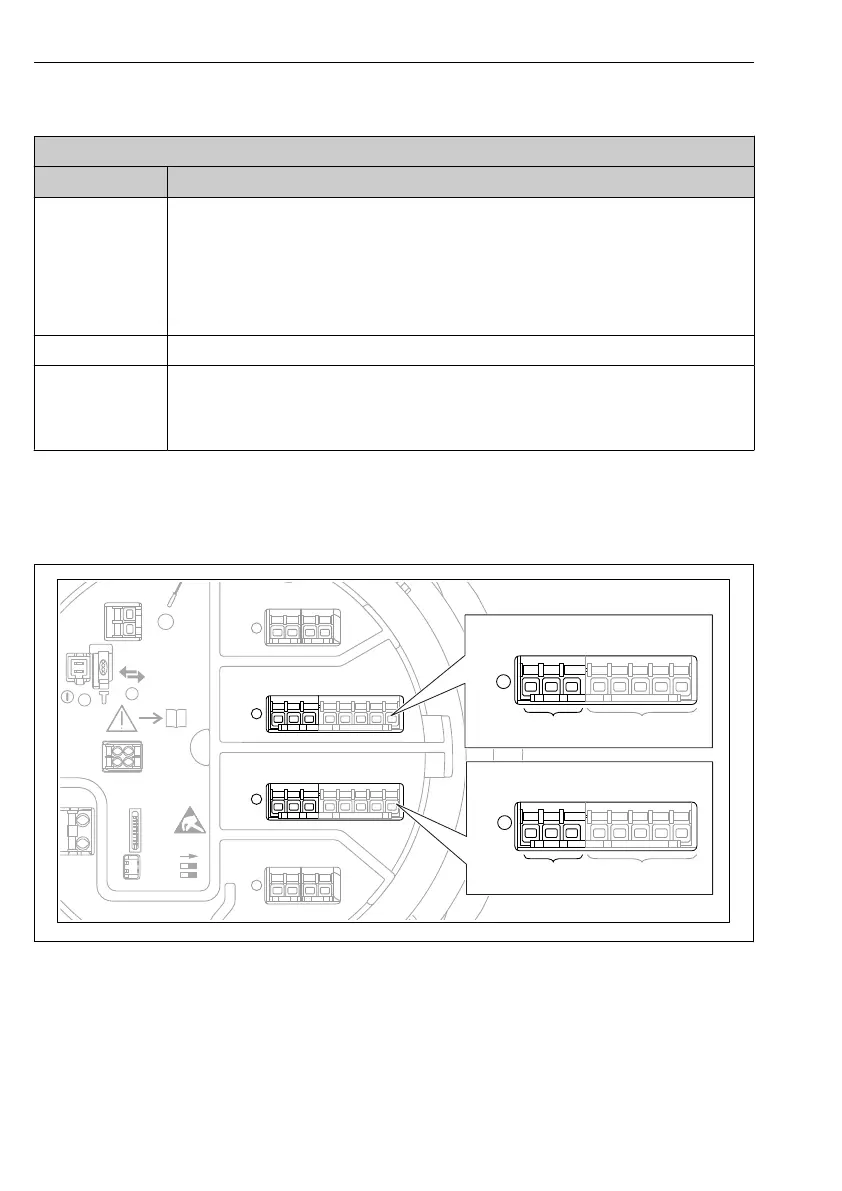

35 Possible locations of the Analog I/O modules, which can be used as a 4-20mA output. The order
code of the device determines which of these modules is actually present.
