Installation Proservo NMS80
22 Endress+Hauser
Procedures Figures
10.

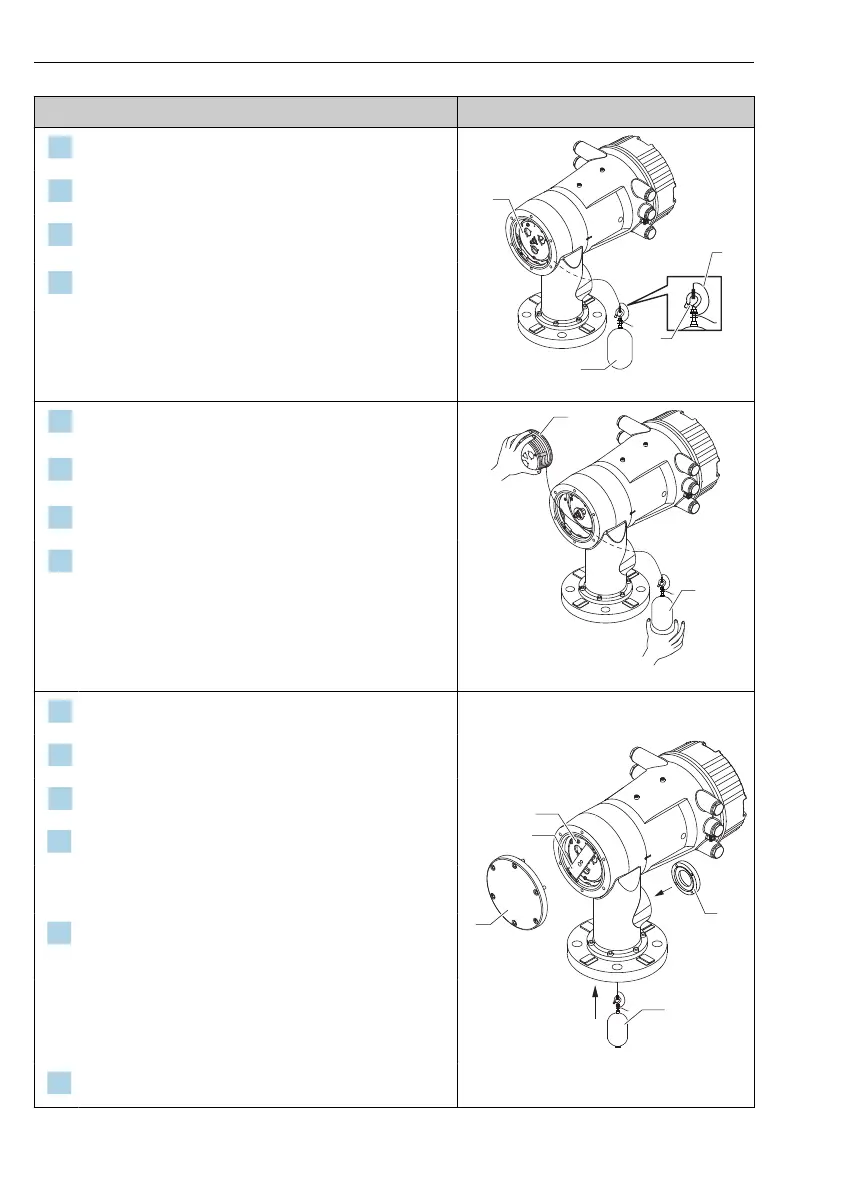

Insert the wire drum [4] temporarily into the drum housing.
3
1
2
4
A0030116
11.
Hook the displacer [3] on the wire ring.
12.
Secure the displacer to the measuring wire using the securing
wire [2].
13.
Install the ground wire [1] for the displacer (for details of
displacer ground wire installation →  24).

• Take special care to not hit the wire drum against the
housing due to strong magnet force.
• Handle the measuring wire with care. It may kink.
14.
Remove the wire drum from the drum housing and unwind
the measuring wire approximately 500 mm (19.69 in).
2
1
A0030117
15.
Hold the wire drum [1] up and place the displacer [2] into the
calibration window.
16.
Hold the displacer at the center of the calibration window.
17.
Hold the other hand (wire drum) up to add tension to the
measuring wire in order not to drop the displacer rapidly.
18.
Let go of the displacer [2].
2
1
3
5
4
A0030118
19.
Remove the tape from the wire drum [5].
20.
Insert the wire drum into the drum housing.
21.
Mount the bracket [4].

Be sure that the wire is wound correctly in the grooves.
22.
Turn on the power of NMS8x and move the displacer up
using the Move displacer wizard→  51 until the wire
ring can be seen in the calibration window.

• Confirm that there are no kinks or other defects in the
measuring wire.
• Confirm that the displacer does not touch the inner wall of
the nozzle.
23.
Perform sensor calibration.
