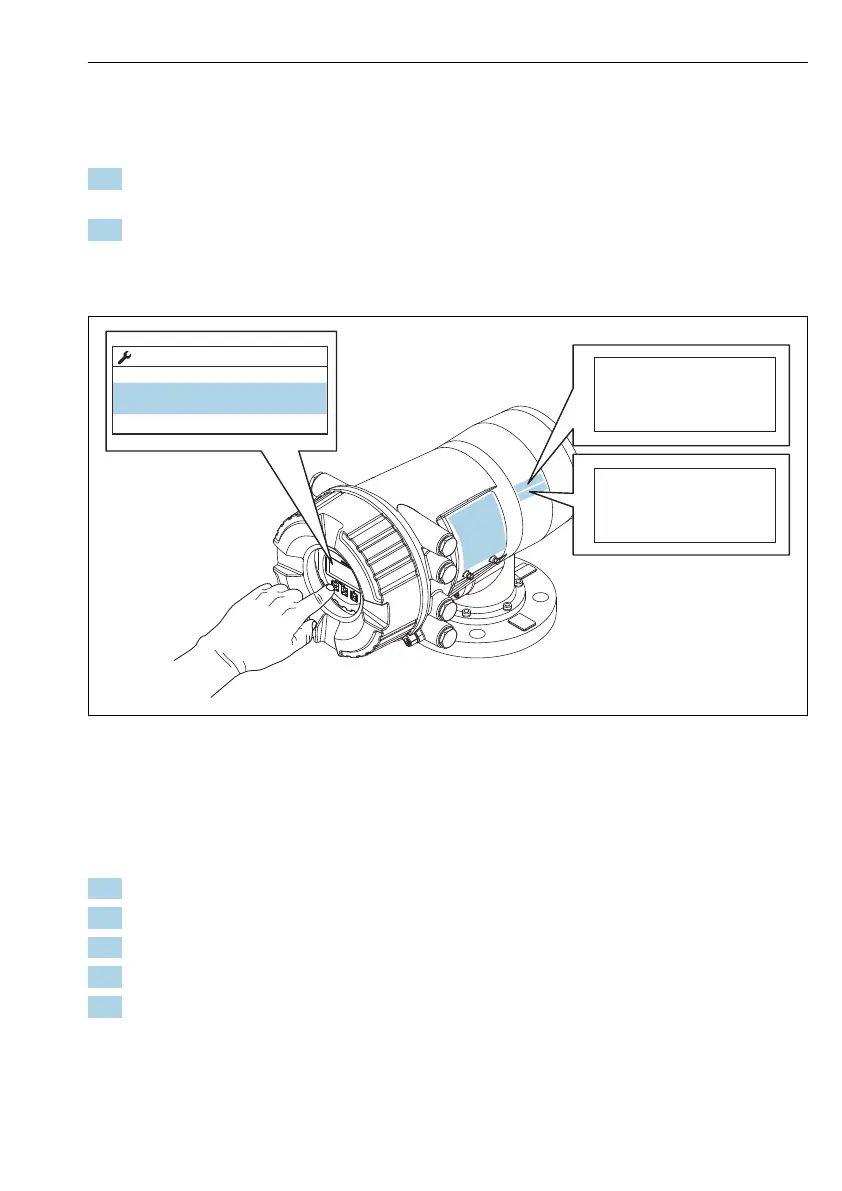

Data verification
Data verification procedure
1. Check the displacer diameter, weight, volume, and balance volume for the Displacer
diameter, the Displacer weight, the Displacer volume, and the Displacer balance volume.
2. Check the drum circumference and wire weight for the Drum circumference and Wire
weight.
This completes the data verification procedure.
316L
50
ml
70.8
ml
141.6
g
256.6
Ø
B
V
D
V
D
m
NMS8
Displacer
Ser.no.: 12345678901
/../Displacer
08010-1
256.6g
Displacer diamet
Displacer weight
Displacer volume
Spare part-no.: 712xxxxx
mm
302.xxxCir.
NMS8
Wiredrum
1.35g/10m
HNBR
28 m
WireWgt.
O-Ring
Range
Spare part-no.: 712xxxxx
Ser.no.: 12345678901
A0030107
 24 Data verification
7.4.2 Move displacer
The move displacer operation is optional and can be used to change the current position of the
displacer in order to perform the calibration steps more easily.
1. Make sure that the wire drum stopper has been removed.
2. Navigate to: Setup → Calibration → Move displacer → Move distance
3. Input the relative moving distance for the Move distance.
4. Select the Move down or the Move up
5. Select the Yes.
This completes move displacer commands procedure.
