Proservo NMS80 Installation
Endress+Hauser 19

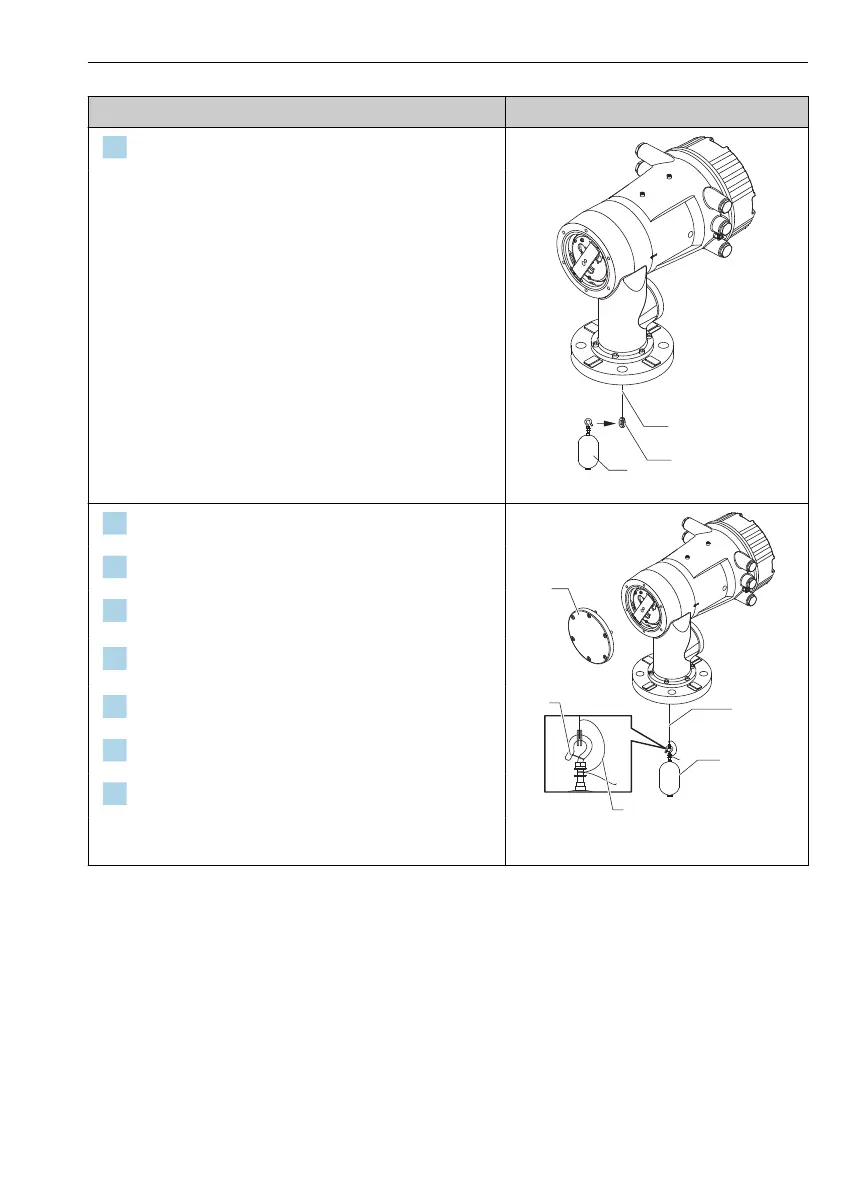

Procedures Figures
10.
Hook the displacer [3] on the ring [2].
1
3
2
A0030110

• Be sure that the wire is wound correctly in the grooves.
• If not, remove the displacer and the wire drum, and repeat
step 7.
11.
Turn on the power of NMS8x.
1
2
3
4
5
A0030111
12.
Perform sensor calibration
13.
Secure the displacer [2] to the measuring wire [1] using the
securing wire [4].
14.
Install the ground wire [3] of the displacer (for details of
displacer ground wire installation →  24).
15.
Perform reference calibration.
16.
Turn off the power.
17.
Mount the wire drum cover [5].

• For sensor calibration, →  52
• For reference calibration, →  55.
