Power consumption
Maximum power varies depending on the configuration of the modules. The value shows
maximum apparent power, select the applicable cables accordingly. The actual consumed
effective power is 12 W.
High voltage AC power supply:
28.8 VA
Low voltage AC power supply:
21.6 VA
Low voltage DC power supply:
13.4 W
6.1.2 Remote display and operating module DKX001
1
3
Vcc
Gnd
A B
2
D
E
F
C
B
A
1
1
1
1 3
2
2 4
1
HR
CDI
WP
on
SIM
2
2
3
3
4
4
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
i
G
1
3
2
POWER
Vcc
Gnd
A
B
81 82 83 84
F1 F2 F3 F4
F
1 3
2 4
A0037025

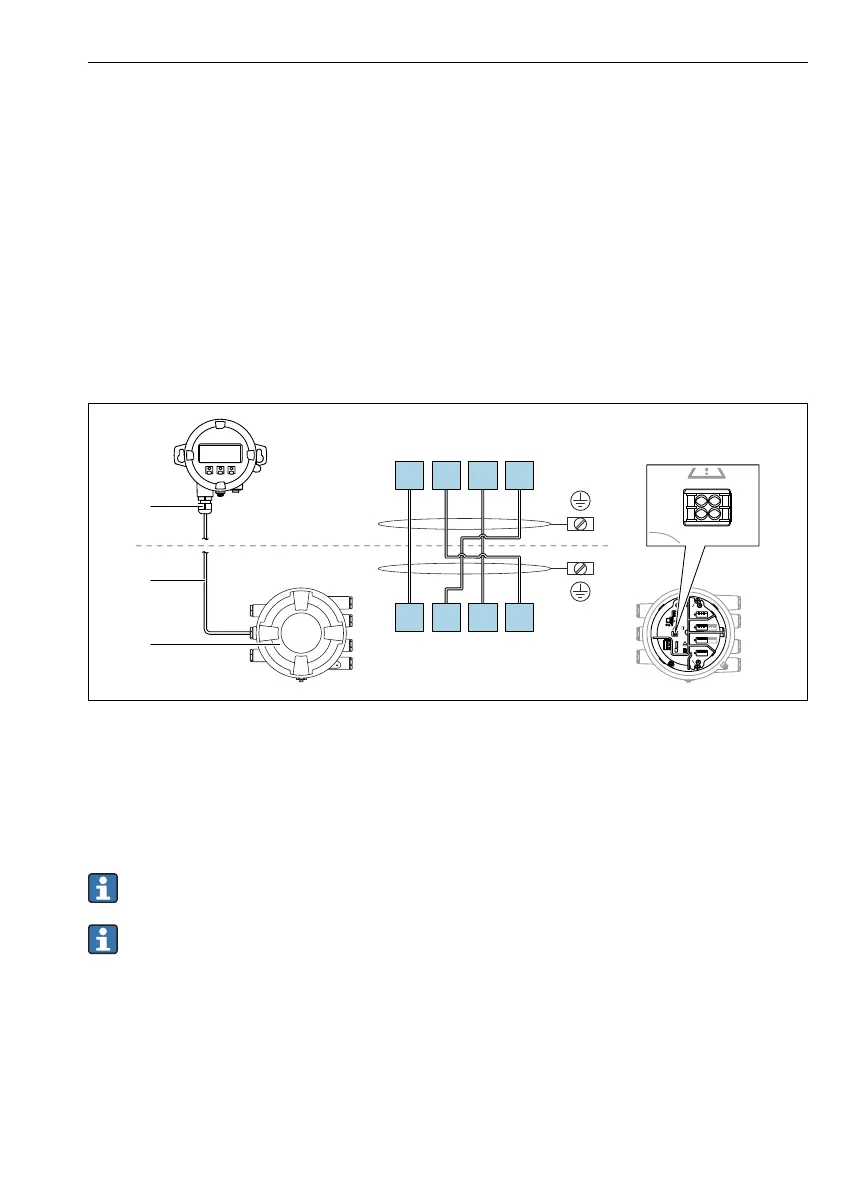

 10 Connection of the remote display and operating module DKX001 to the Tank Gauging device
(NMR8x, NMS8x or NRF8x)
1 Remote display and operating module
2 Connecting cable
3 Tank Gauging device (NMR8x, NMS8x or NRF8x)
The remote display and operating module DKX001 is available as an accessory. For
details refer to SD01763D.
• The measured value is indicated on the DKX001 and on the local display and operating
module simultaneously.
• The operating menu cannot be accessed on both modules at the same time. If the
operating menu is entered in one of these modules, the other module is automatically
locked. This locking remains active until the menu is closed in the first module (back to
measured value display).
