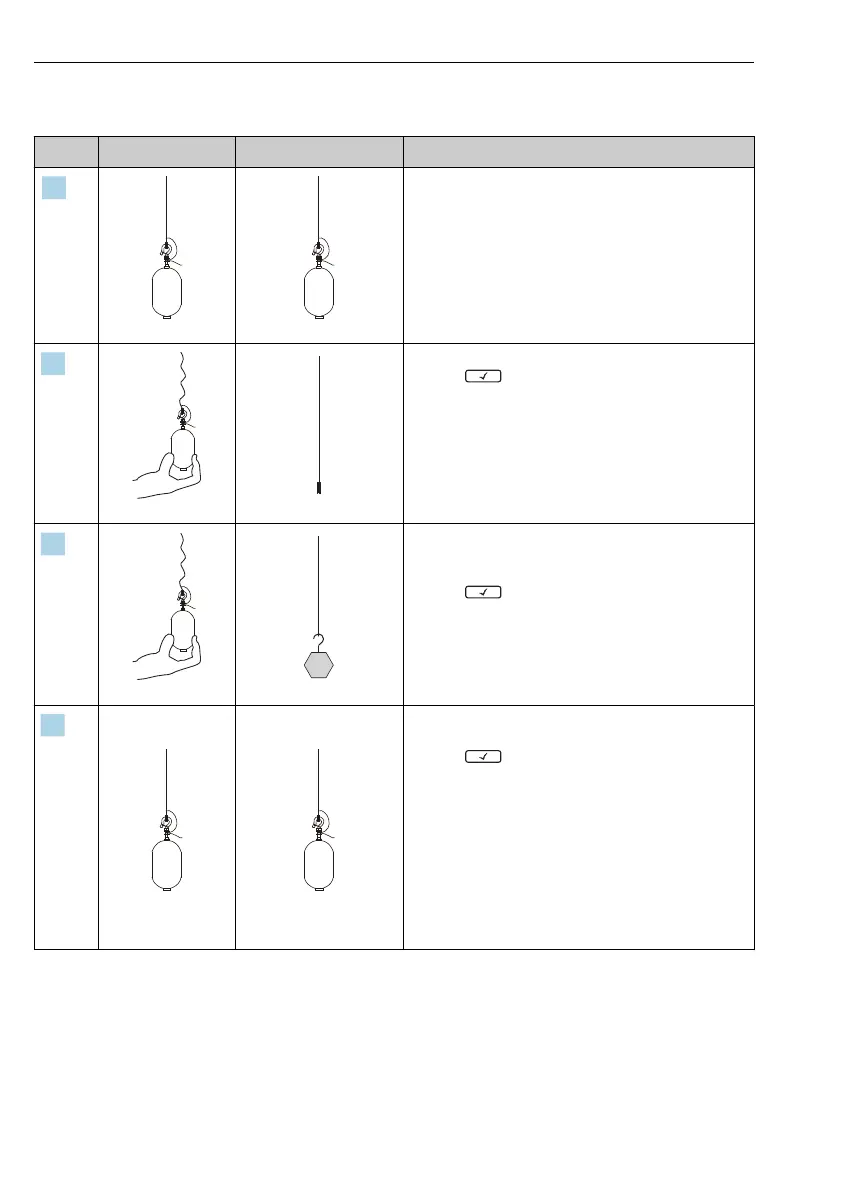

Calibration procedure
Step Using displacer Using offset weight Description
1.
A0028000 A0028000
• Navigate to: Setup → Calibration → Sensor calibration
→ Sensor calibration
• Input the offset weight for the Offset weight used in
step 3 (0.0 g in case of using the displacer only).
• Input the value for the Span weight used in step 4
(weight of displacer indicated on nameplate).
2.
A0027999
A0028001
• Hold up or remove the displacer.
• Select for next parameter.
• Measuring zero weight is shown on the display.
• Wait until the Zero calibration shows the Finished
and calibration status shows Idle.

When the displacer is being held up, do not
release it until this step is completed.
3.
A0027999
A0028002
• Confirm that the Offset calibration shows the Place
offset weight.
• Hold up the displacer or attach the offset weight.
• Select for next parameter.
• Measuring offset weight is shown on the display.
• Wait until the Offset calibration shows the Finished
and Calibration status shows Idle.

When the displacer is being held up, do not
release it until this step is completed.
4.
A0028000 A0028000
• Release the displacer or mount it on the measuring
ring if an offset weight was used in the previous step.
• Select for next parameter.
• Measuring span weight is shown on the display.
• Confirm that the Span calibration shows the Finished
and Calibration status shows Idle.
• Select the Next.
• Confirm that the Sensor calibration shows the
Finished and Calibration status shows Idle.
This completes sensor calibration procedure.

Do not swing the displacer and keep it in as stable
a position as possible.
