•ACoutput
Enfinity inverters are designed for single phase grid. The Voltage range is from 180V to 260V (200V-270V
for Australia), frequency is 47Hz~52Hz/57Hz~61.5Hz. Other technical requests should comply with the
requirement of local public grid.
Enfinity model 1000TL 1650TL 2200TL 2800TL 3300TL 3680TL 4400TL 5000TL
Cable 4mm
2
Micro-Breaker 16A 16A 20A 20A 20A 25A 25A 25A
Distance max. 15m
Micro-breaker should be installed between inverter and grid, and its leakage current needs to be >30mA.
Any load should not be connected with the inverter directly.

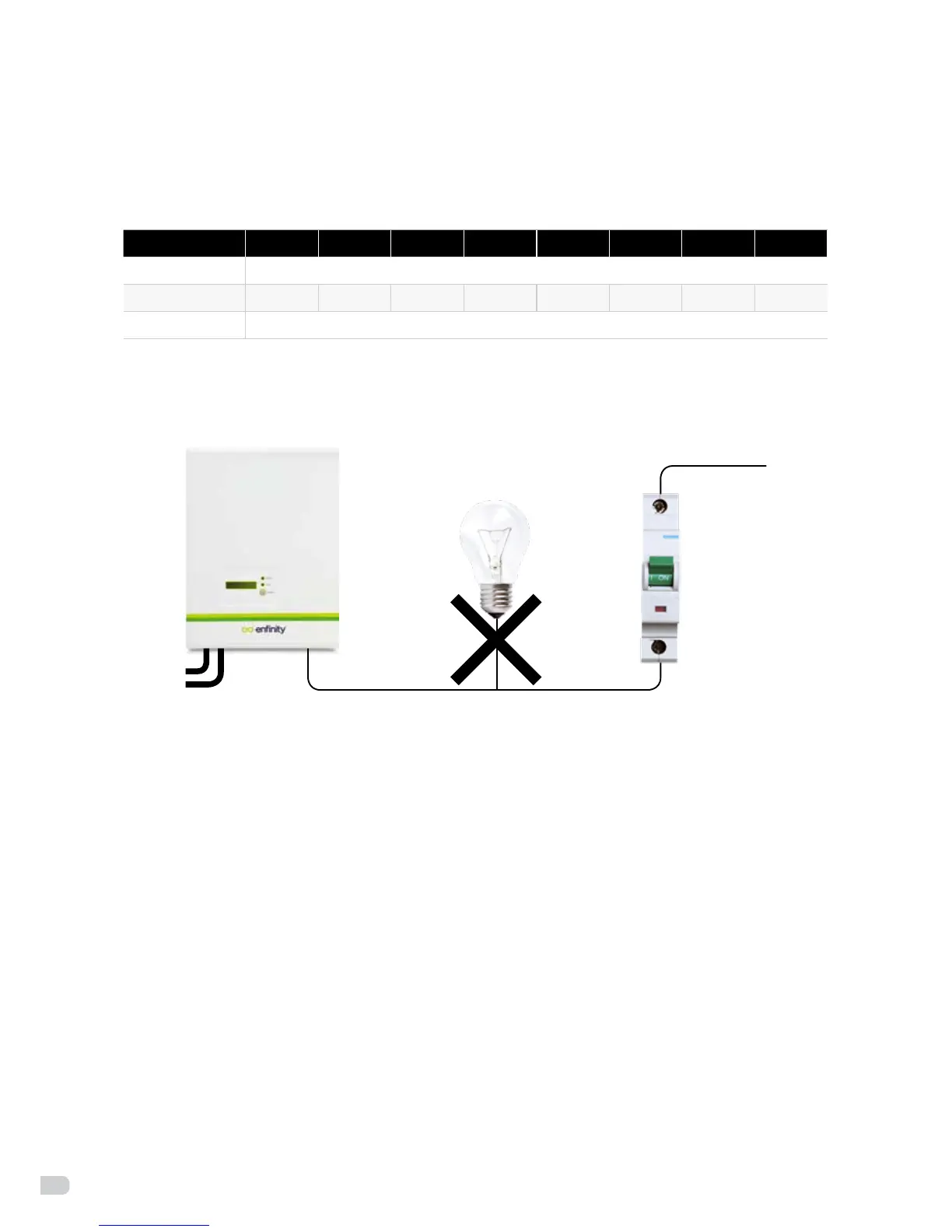

Figure 17: incorrect connections between load and inverter
Impedance of the Enfinity inverter AC connecting dot should be less than 2Ω. To ensure reliable anti-
islandingfunction,PVcableshouldbeusedtoensurewireloss<1%ofnormalpower.
This product has a professional IP66 AC waterproof connector. You have to wire AC by yourself. Please
see figure 18 and 19 for AC connector disassembling guide.
