5 Operation
5.9.2. Disconnecting the tool, hydraulic
lock

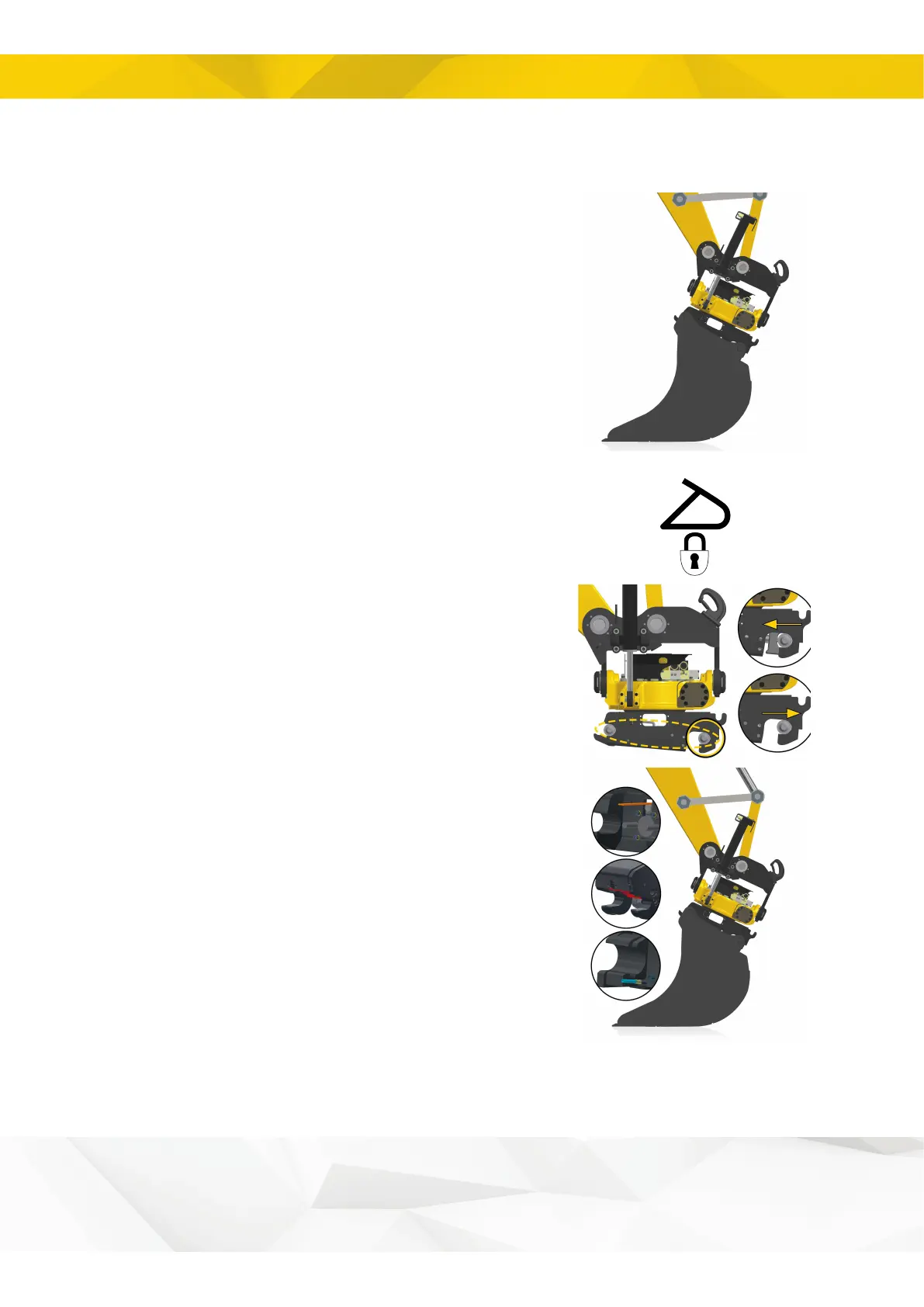

1. Place the tool on the ground, with the locking bolts
pointing away from the cab.
2. Activate the quick hitch lock function.
3. Activate the hydraulics and the locking bolts.
4. The locking cylinders are activated and open position
is reached when the indicator rod is visible.
Q-Safe: The sound and light warning signals are
activated.
HS/SW with sensor: The sound and light warning
signals are activated when the locking cylinder is in the
open position.
ECPUP: Check that the red hook is in the open position.
