5 Operation

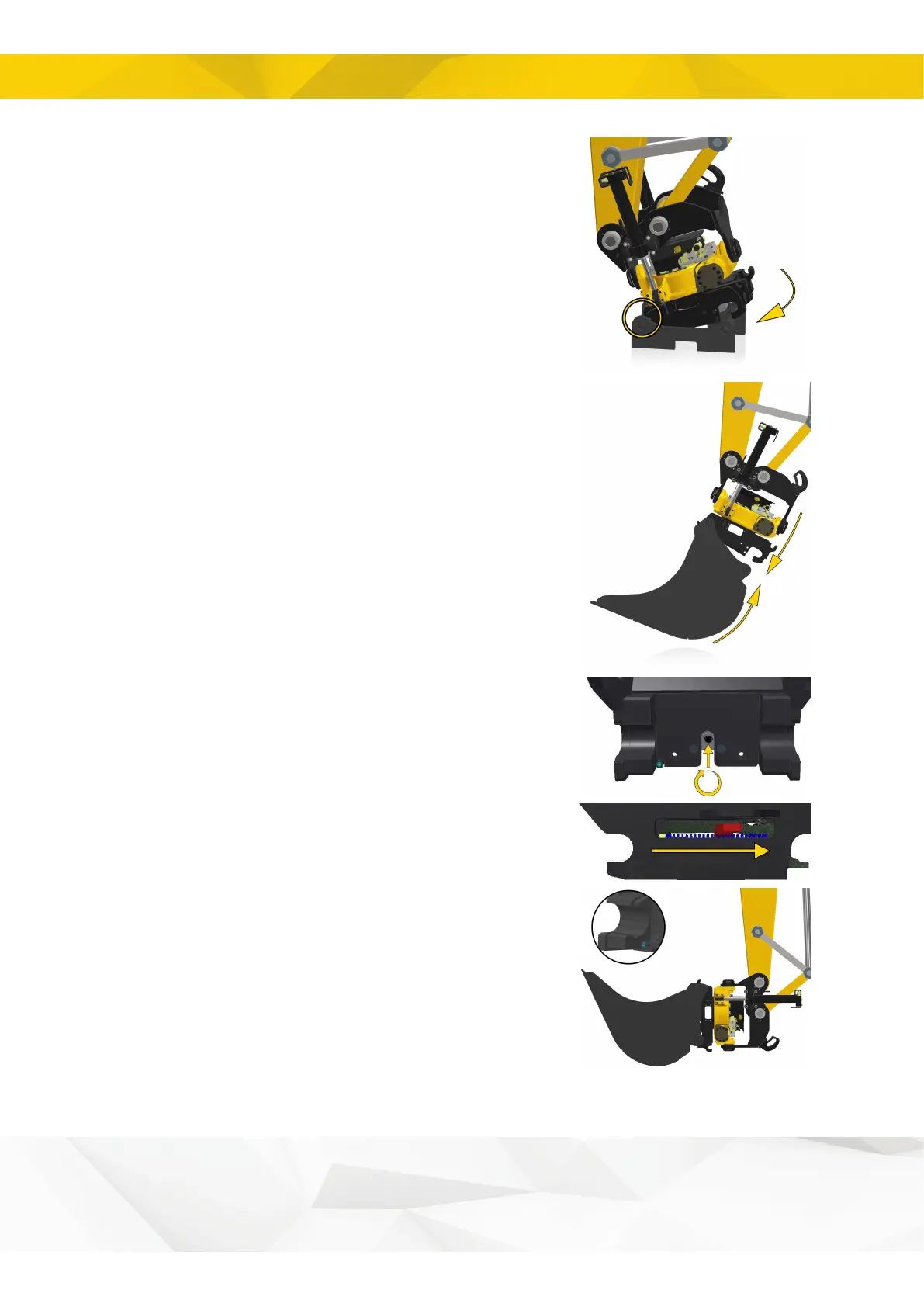

3. Connect the quick hitch to the tool.
4. Raise the tiltrotator very slightly above the ground so
that the tool moves towards the quick hitch.
5. Close the quick hitch with a suitable tool.
On models with a screw, turn it clockwise until the locking
bolts are retracted and the indicator rod is in its innermost
position.
On models with a lever, the lock closes automatically
when the adaptor axle forces the lock clamp up.
6. Check that the quick hitch lock's lock function has
engaged. In the case of engcon’s other quick hitches,
the blue indicator rod will no longer protrude from the
hitch. Indicator rod location may vary depending on the
tiltrotator model.
