5 Operation
WARNING
Beware of moving parts. A lack of awareness may lead
to crush injuries. Risk of personal injury.

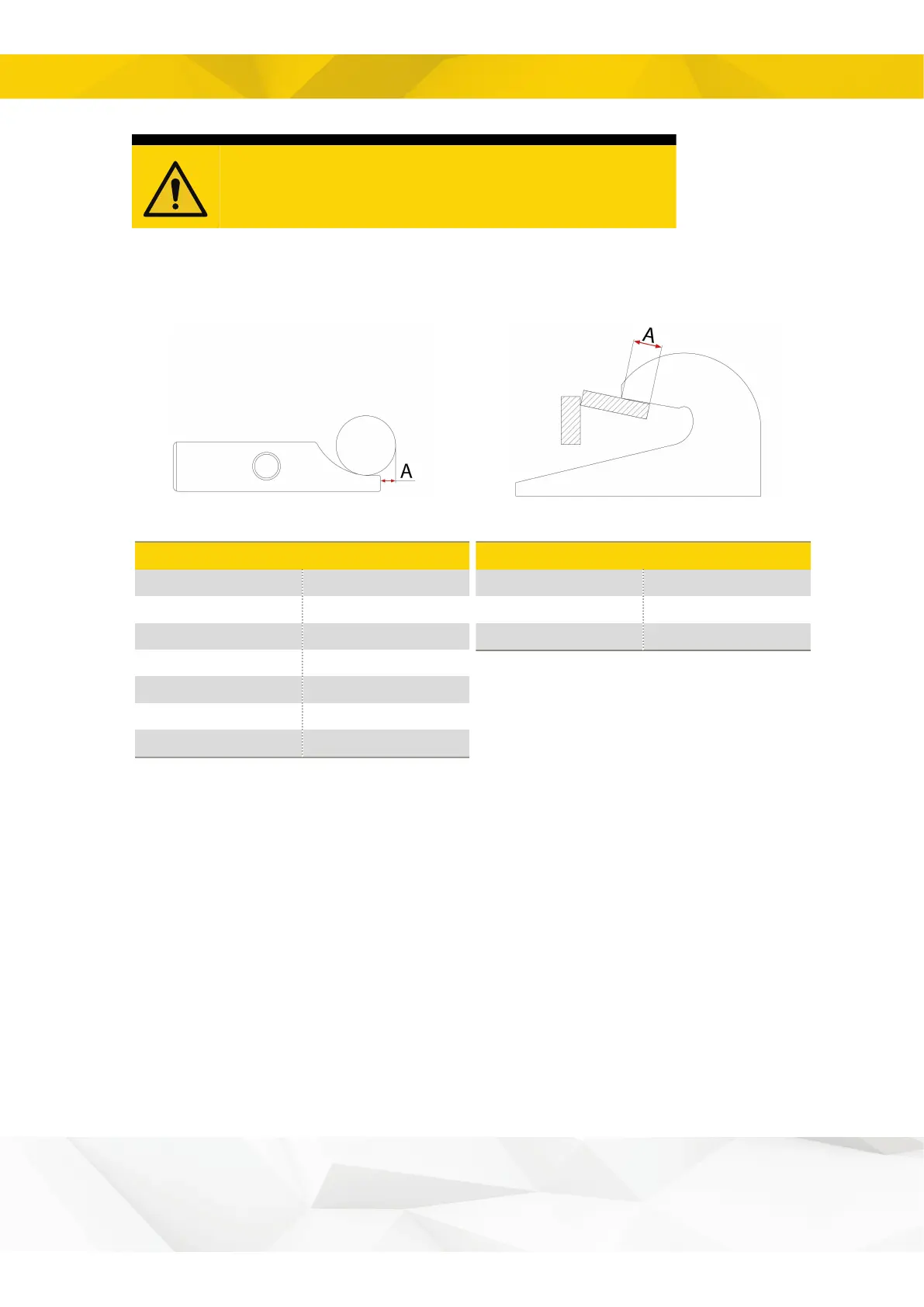

Shim the quick hitch and the tool for minimum play. Check that minimum locking wedge
engagement is not below the minimum value:
Quick hitch S30-S80
Quick hitch S1-S3
Figure 16.
Figure 17.
Quick hitch
A (max)
S30
5mm
S40
10mm
S45
10mm
S50
10mm
S60
20mm
S70
22mm
S80
25mm
Table 4.
Quick hitch
A (min)
S1
30mm
S2
30mm
S3
30mm
Table 5.
