Physical Interface(ENH1750EXT)
Dimensions and Weights
Length: 11.22”
Width: 8.58”
Depth: 2.1”
Weight: 4.17 lbs

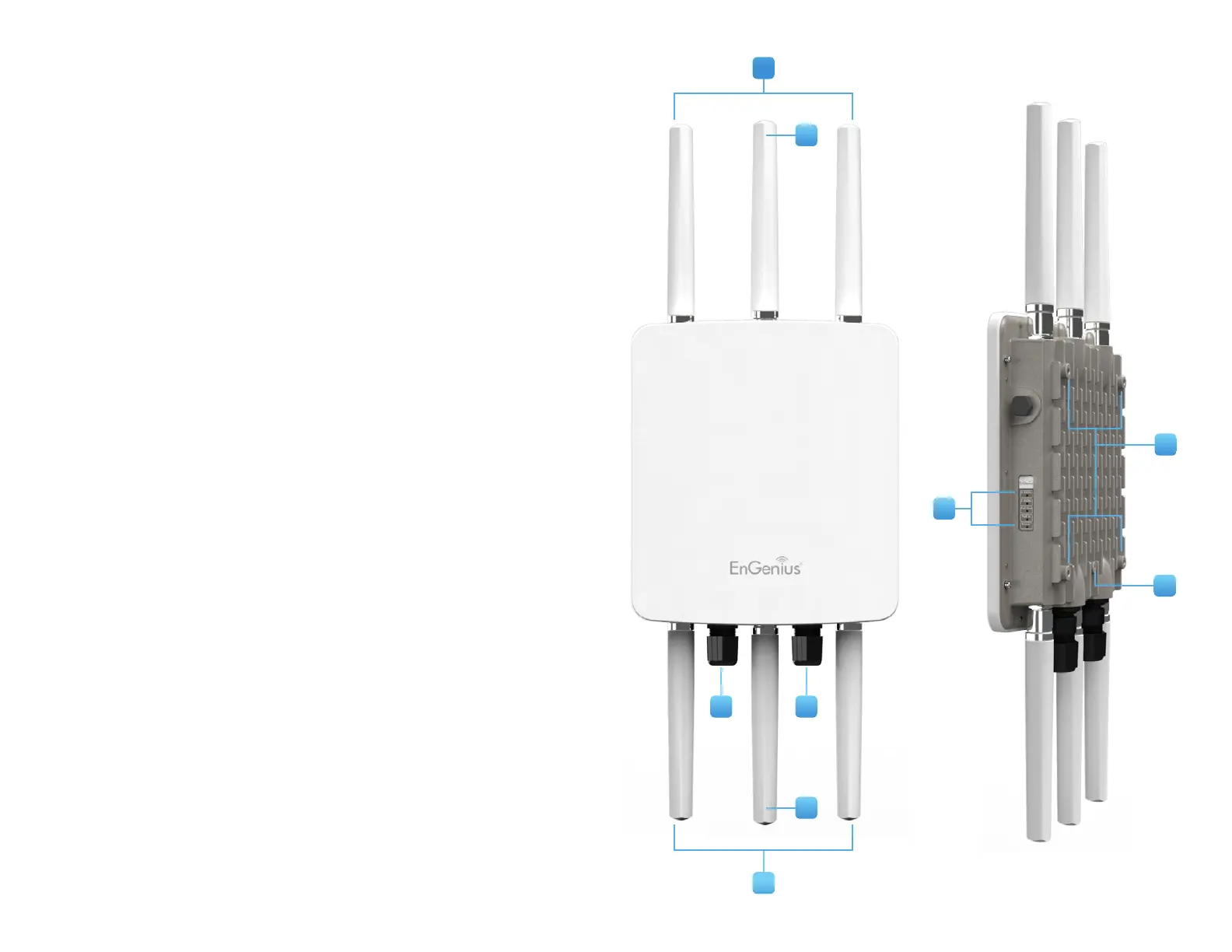

1 2.4 GHz Antennas: Detachable 5 dBi 2.4 GHz Omni-directional
2 5 GHz Antennas Detachable 7 dBi 5 GHz Omni-directional
3 LAN Port 1 (802.3at PoE Input): Ethernet port for RJ-45 cable.
4 LAN Port 2 (802.3af PSE Output): Ethernet port for RJ-45 cable.
5 LED Indicators: LED lights for Power, LAN Port 1, LAN Port 2,
2.4 GHz Connection and 5 GHz Connection.
6 Ground
7 Mounting Holes: Using the provided hardware, the ENH1750EXT
can be attached to a wall or pole.
