Physical Interface (ENS620EXT)
Dimensions and Weights
Length:191.6mm(7.54”)
Width:114.3(4.49”)
Depth:47.7mm(1.88”)

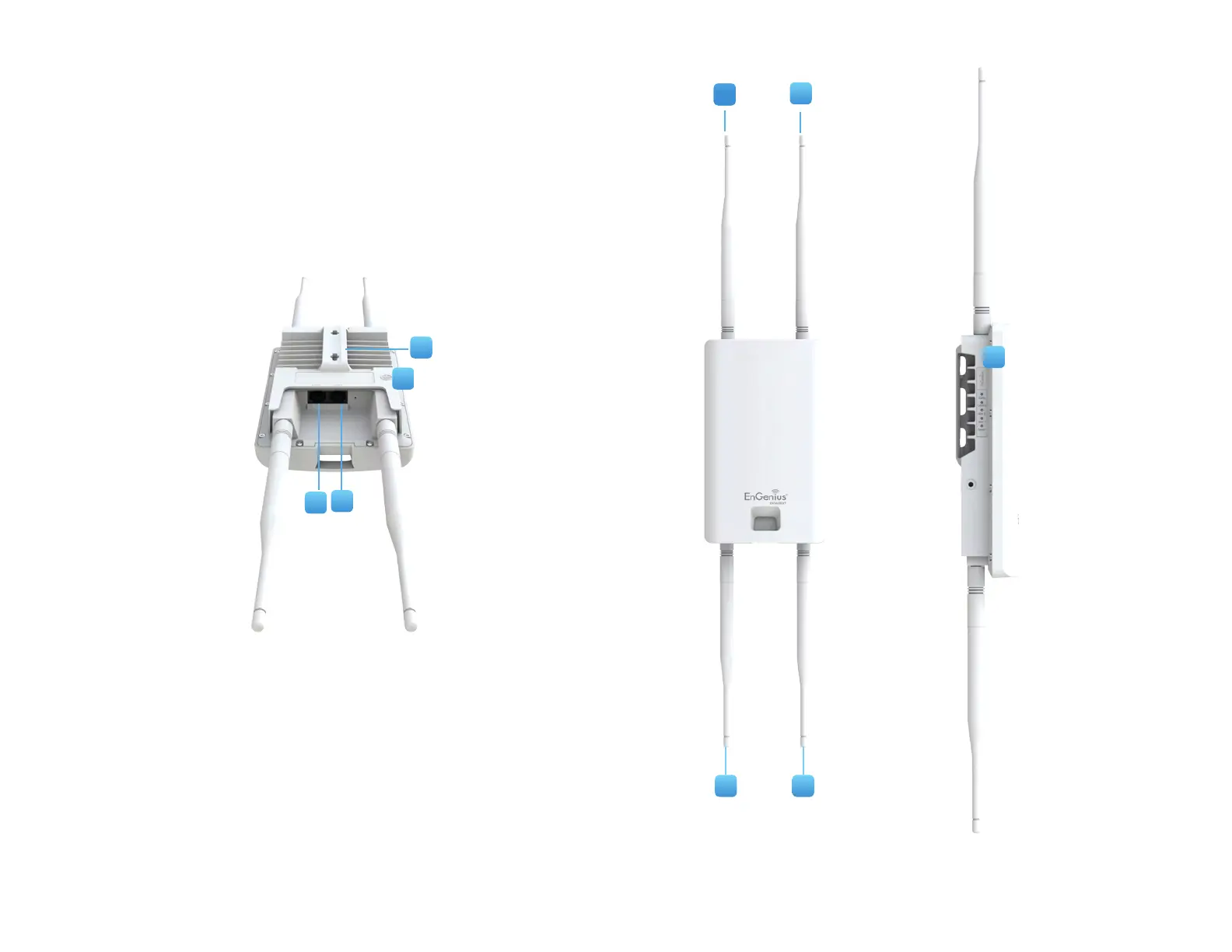

1 2.4 GHz Antennas: Detachable 5 dBi 2.4 GHz Omni-directional
2 5 GHz Antennas Detachable 5 dBi 5 GHz Omni-directional
3 LAN Port 1 (Proprietary24V PoE):EthernetportforRJ-45cable.
4 LAN Port 2 : EthernetportforRJ-45cable.
5 LED Indicators: LEDlightsforPower,LANPort1,LANPort2,
2.4 GHz Connection and 5 GHz Connection.
6 Ground Cable
7 Mounting Holes:Usingtheprovided hardware, the AP canbe
attached to a wall or pole.
