WDS AP Mode

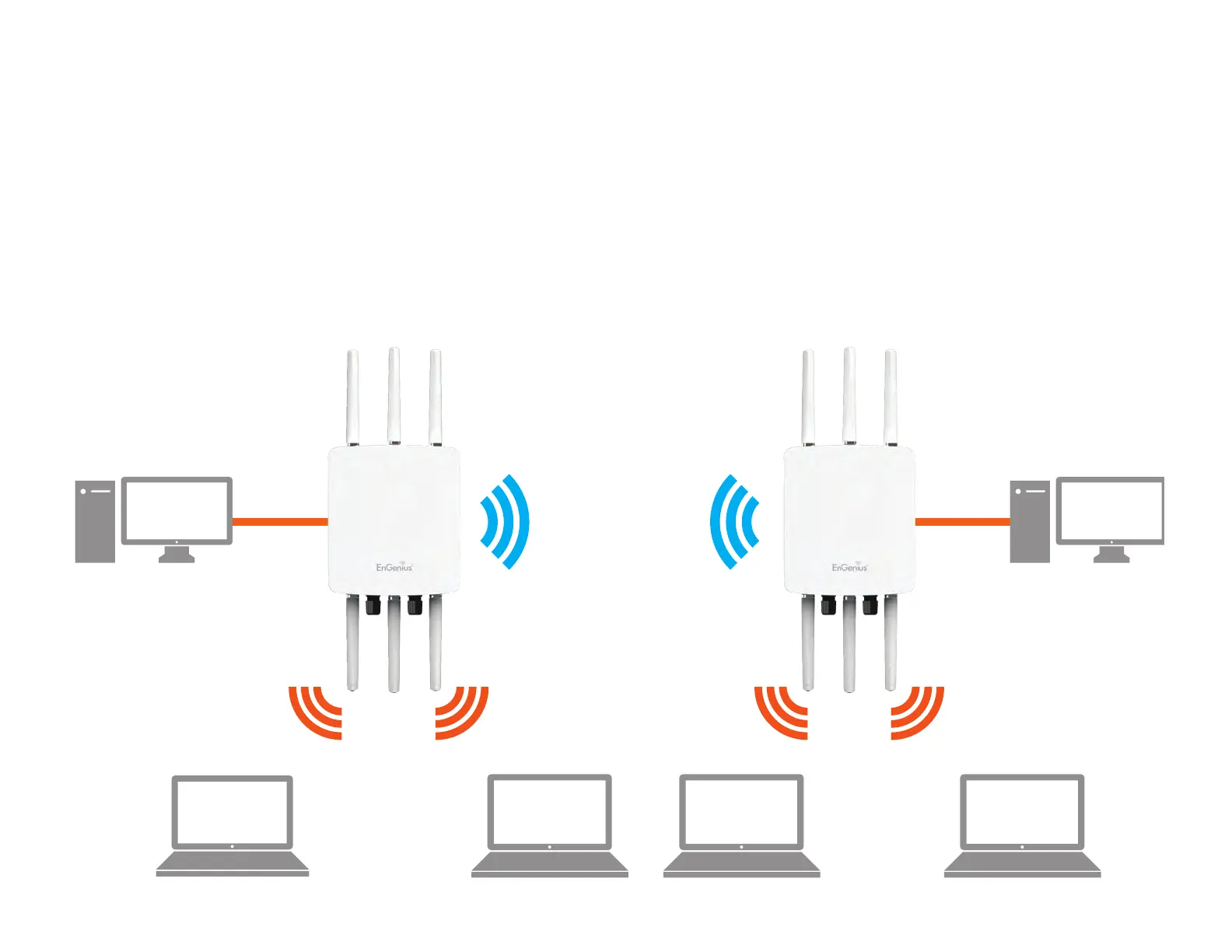

The AP also supports WDS AP mode. This operating mode allows wireless stations to connect with Access Point via using
WDStechnology.Inthismode,conguretheMACaddressesorSSIDsinbothAccessPointstoenlargethewirelessarea
byenablingWDSLinksettings.WDSAPmodesupportsuptofour(4)APMACaddressesandfour(4)SSIDsatthesame
time.
AP
WDS AP
AP
WDS AP
2.4 GHz 2.4 GHz
5 GHz 5 GHz
Client Client Client Client
Client
Computer
Client
Computer
