EnGenius ENS500EXT-AC - Access Point Mode

32
BeforestartingtocongurethisAccessPoint,youmayrealizetheusedscenarioundervariedoperatingmodes.TheAP
has the ability to operate in various modes. This chapter describes purpose of different operating modes and lists down
theoperatingmodesforoutdoorAccessPointsorClientPremiseEquipments(CPE).

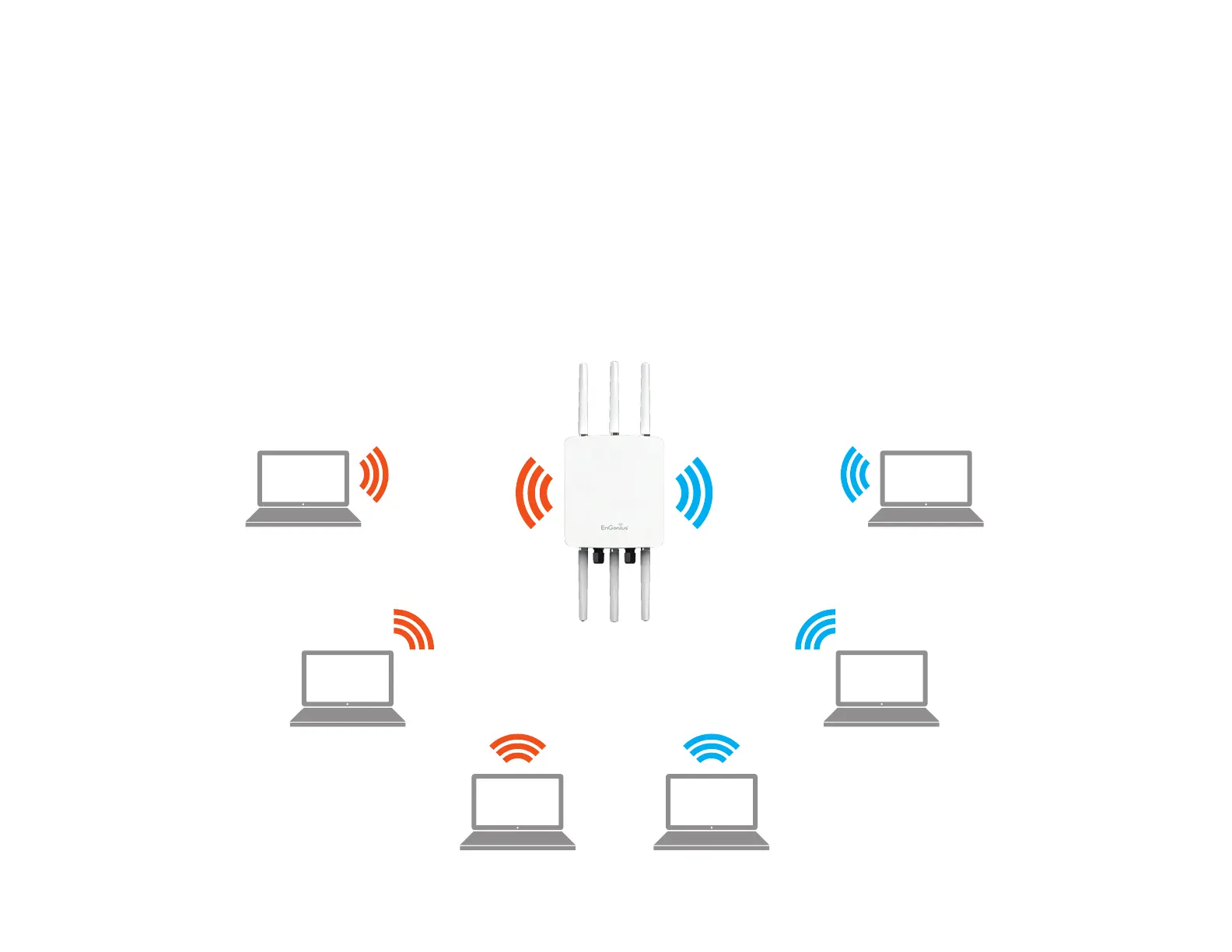

Access Point Mode
InAccessPointMode,APbehaveslikesacentralconnectionforstationsorclientsthatsupportIEEE802.11ac/a/b/g/nnetworks.
ThestationsandclientsmustbeconguredtousethesameSSID(ServiceSetIdentier)andsecuritypasswordtoassociate
with the AP. The AP supports up to eight SSIDs per band at the same time for secure access.
AP
Access Point
Client
Client Client
Client Client
Client
2.4 GHz 5 GHz
