34

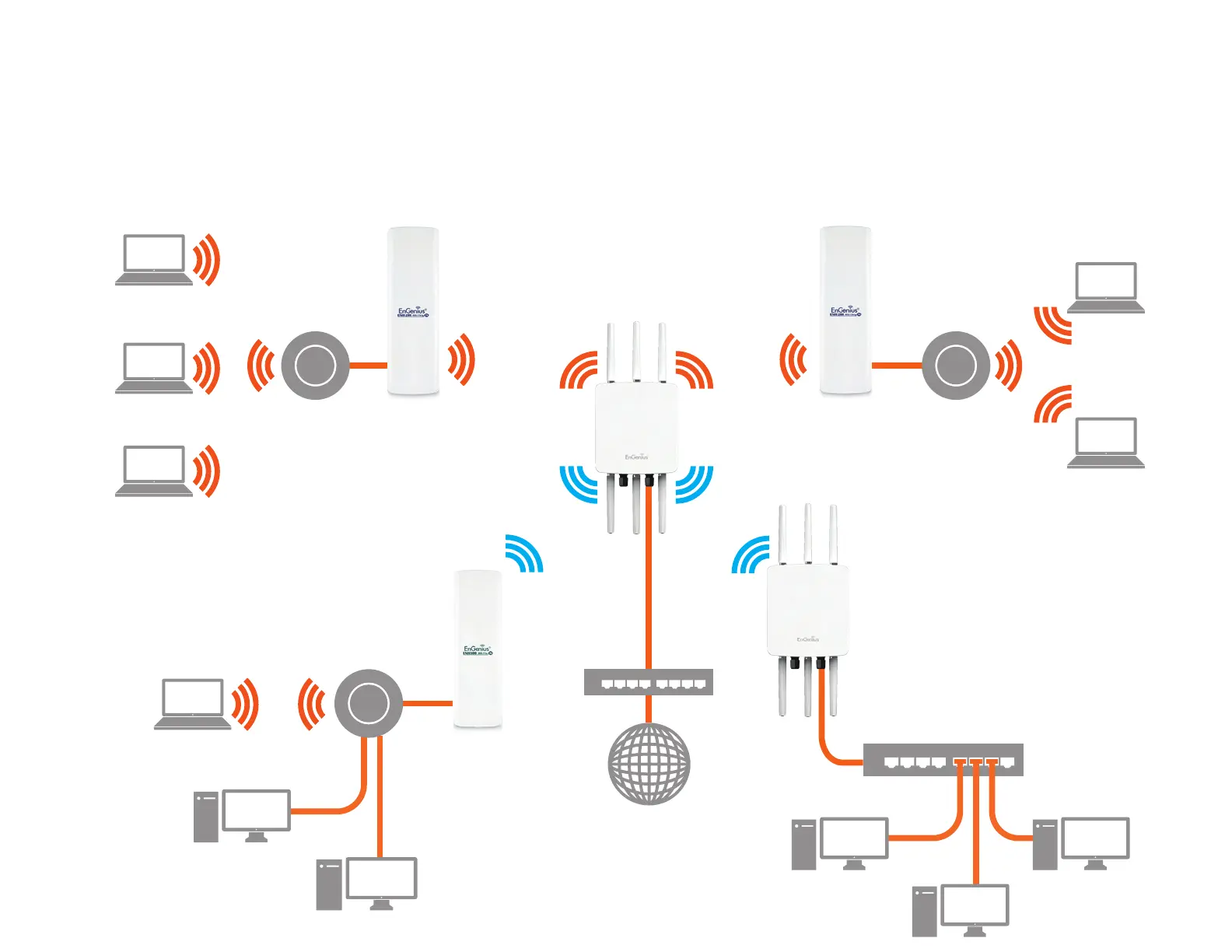

TheAPcanbeusedasacentralizedOutdoorAccessPointwithwhichotherEnGeniusWireless802.11b/g/n2.4orac/a/n
5 GHz Outdoor Client Bridges can associate; leveraging the long-range capability of their internal high-gain directional
antennas,resultinginaverycost-effectivesolutiontoexpandacompanynetworkoveramultiplebuildingcampus.
AP
Access Point
AP
Client Bridge
ENH202
Client Bridge
ENH202
Client Bridge
ENH500
Client Bridge
Client
Client
Client
Client
Client
Client
Client
Client
Client
Client
Client
2.4 GHz
5 GHz 5 GHz
2.4 GHz
Switch
Switch
Internet
