Physical Interface - ENS500-AC/ENS500EXT-AC
Dimensions and Weights
Length:186mm(7.32”)
Width:100(3.94”)
Depth:29mm(1.14”)

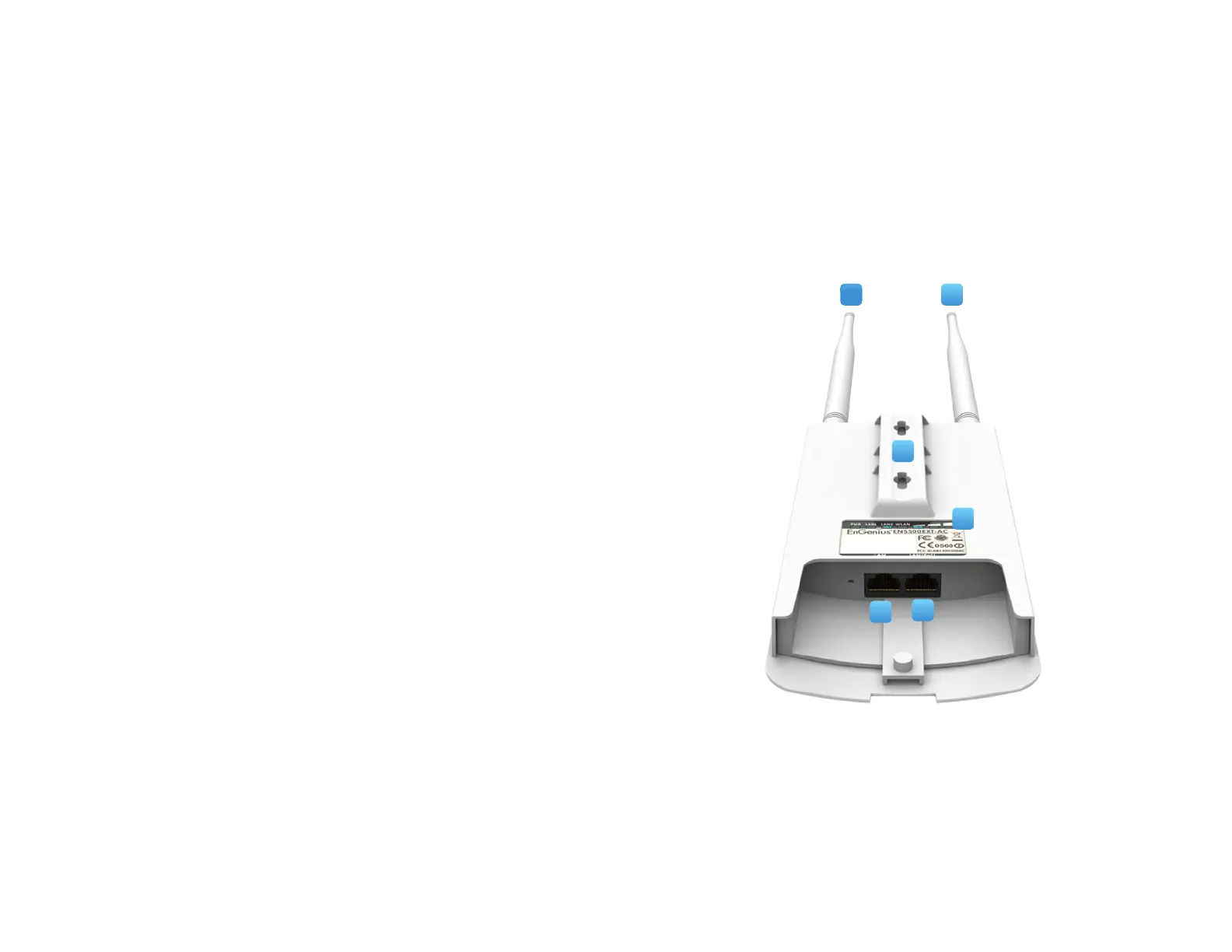

1 5 GHz Antennas Detachable 5 dBi 5 GHz Omni-directional
Antennas(ENS500EXT-ACOnly)
2 LAN Port 1 (Proprietary24V PoE):EthernetportforRJ-45cable.
3 LAN Port 2 : EthernetportforRJ-45cable.
4 LED Indicators: LEDlightsforPower,LANPort1,LANPort2,
2.4 GHz Connection and 5 GHz Connection.
5 Mounting Holes:Usingtheprovided hardware, the AP canbe
attached to a wall or pole.
1 1
2
3
4
5
