Engl E670 - Wiring of Principal Connectors

46

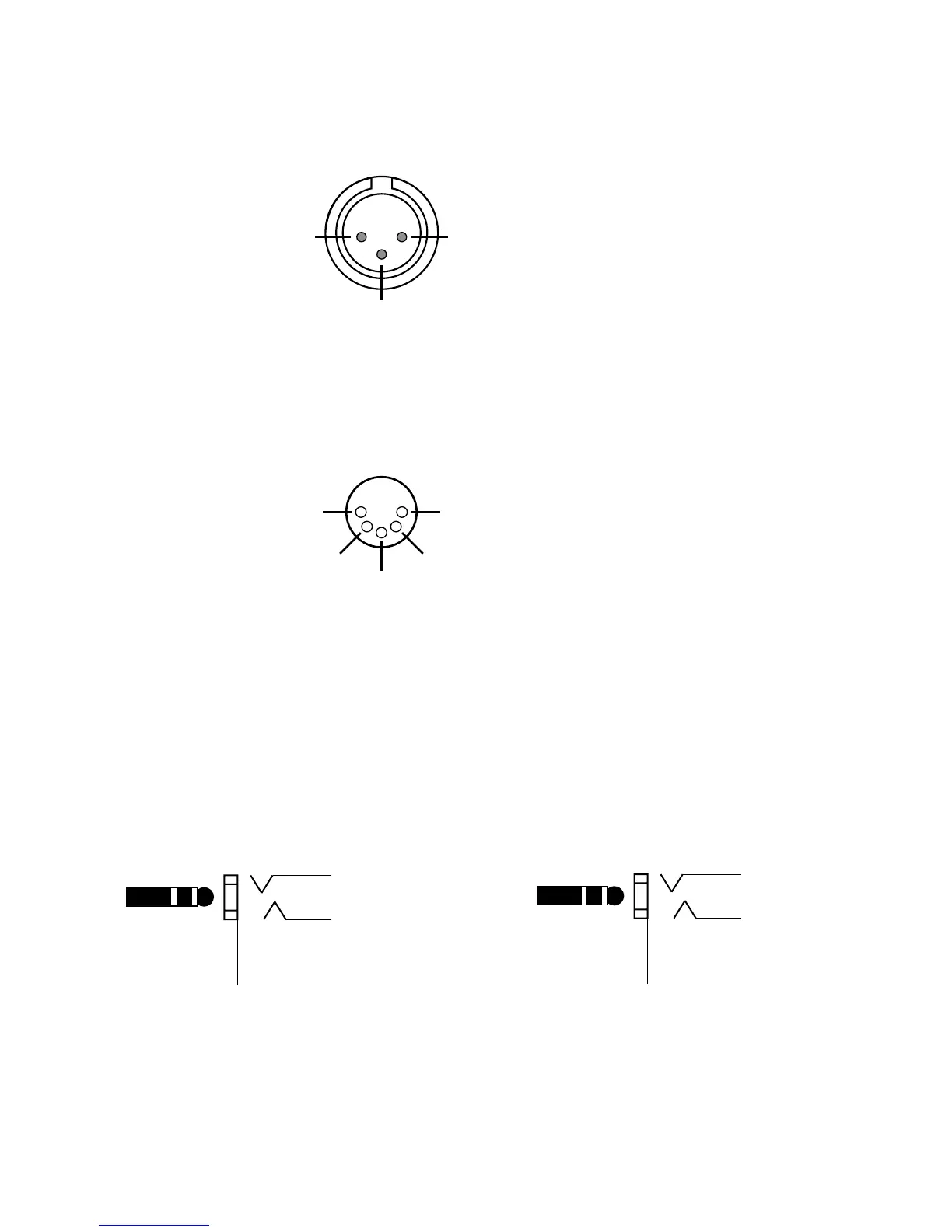

Wiring of Principal Connectors
*: AC voltage is routed to pin 1 and 2 only when button 54
is set to ENGL MIDI Footcontroller.
LINE OUT BALANCED (72), XLR male connector
Pin 3:
signal -
Pin 1 - or ground,
depending on the
position of the switch
XLR GROUND (71)
Pin 2: signal +
page: 26
MIDI IN (53), DIN connector
Pin 1 - power supply
approx.11 volts AC *
Pin 4 - MIDI-data wire
Pin 5 - MIDI-data wire
Pin 2 -
power supply
approx.11 volts AC *
Pin 3 - N.C.
page: 21
Stereo
1/4" jack
Serial Amp Control Port (56)
+ 5 volts
Data
Ground, GND
Very important:
use a stereo
plug only!
Connect ENGL
Custom Z-9
Footswitch only!
page: 23
Stereo
1/4" jack
Dual Footswitch (57)
CH1/CH2
Sub I/II
Ground, GND
Use a stereo
plug only!
page: 23
