Installing and Connecting B5 Redundant Power Systems
2-14 Installation

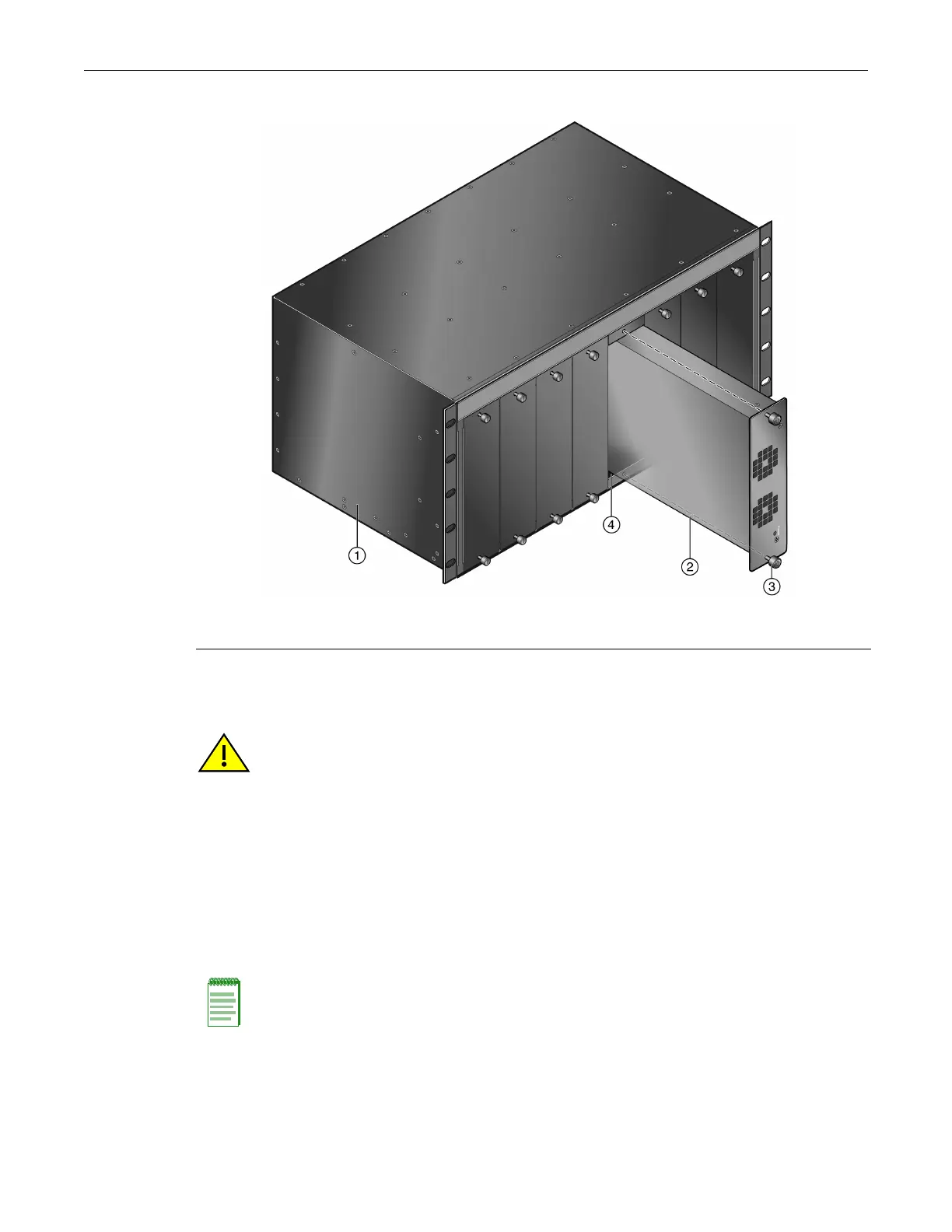

Figure 2-8 STK-RPS-150PS Installation in an STK-RPS-150CH8 Shelf
Removing an Installed STK-RPS-150PS
Toremoveapowersupplyinstalledinanoperatingsystem,proceedasfollows:
1. UnplugtheACpowercordofthepowersupplyfromtheACpowersourcefirst,thenfrom
therearofthepowersupply.
2. Loosenthecaptivescrewssecuringthepowersupplyunt ilitisreleasedfromthechassis
front
panel.
3. Pullthepowersupply
outandremoveitfromthechassis.
4. Repeatsteps1through3foreachadditionalpowersupplyyouplantoremove.
1 STK-RPS-150CH8 shelf 3 Captive screws (2)
2 STK-RPS-150PS power supply 4 Chassis power supply slot
Caution: Observe all Electrostatic Discharge (ESD) precautions when handling sensitive electronic
equipment.
Precaución: Al trabajar con equipos electrónicos sensibles, tome todas las precauciones de
seguridad para evitar descargas de electricidad estática.
Note: If you plan to remove and not replace an STK-RPS-150PS, immediately reinstall coverplates
over any empty power supply slots to prevent EMI leakage from the chassis.
