Connecting to the Console Port for Local Management

2-22 Installation

2. ConnectoneendoftheRPScabletotheredundantpowersupplyconnectorontheB5switch.

ThenconnecttheotherendtotheredundantpowersupplyconnectorattherearoftheSTK‐

RPS‐500PSasshowninFigure 2‐16.

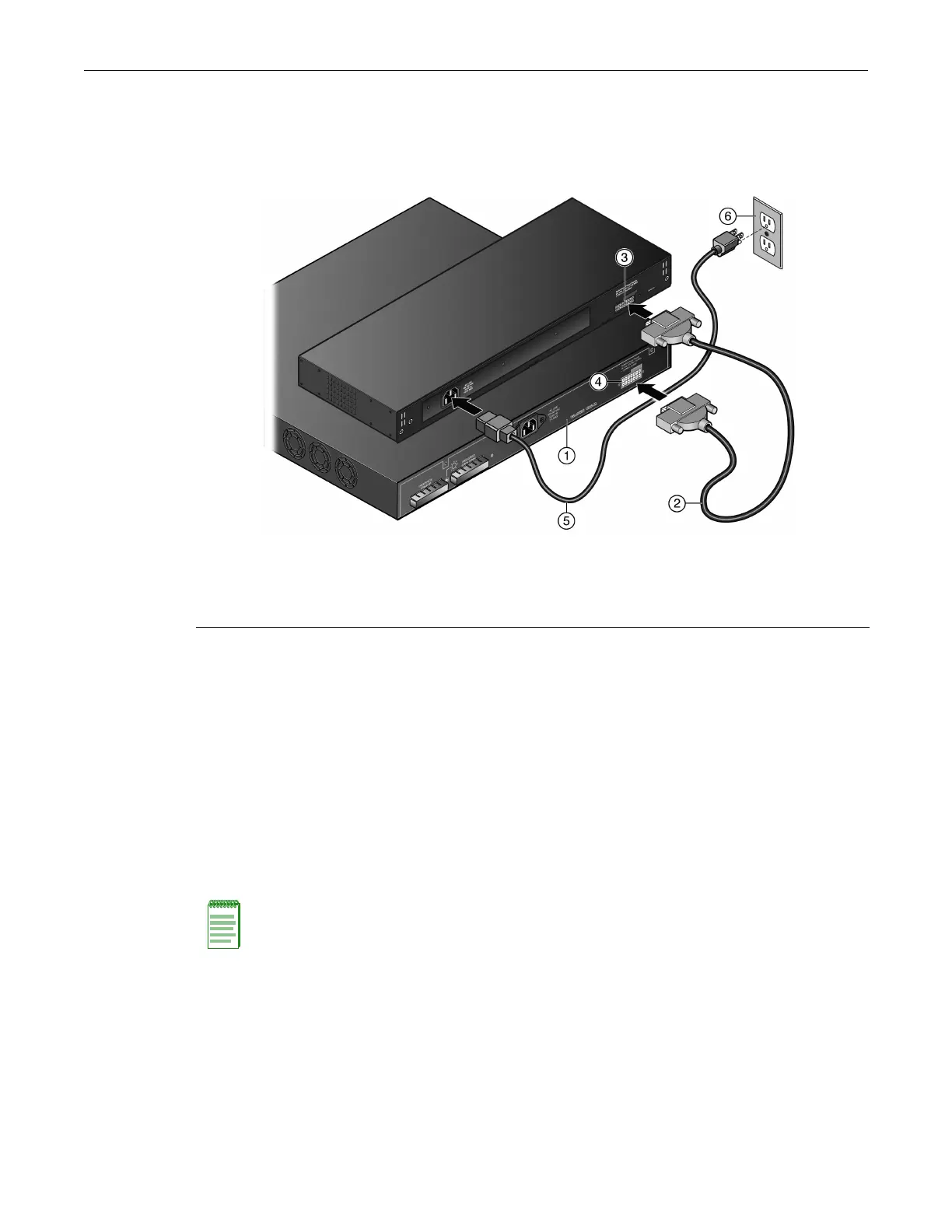

Figure 2-16 STK-RPS-500PS RPS Cable and AC Power Cord Connections

3. ConnectastandardACpowercordtotheAC

inputpowerconnectorontheSTK‐RPS‐500PS,

thenplugtheACpowercordintothemainACpoweroutletasshowninFigure 2‐16.

TheACpowerLEDonthefrontoftheSTK‐RPS‐500PSwillturngreentoindicateasuccessful

connectionandtheSTK‐RPS‐500PSis

operatingproperly.

4. ReconnecttheB5switchtotheACpowersource.

5. TurnontheB5switch.

Connecting to the Console Port for Local Management

ThissectiondescribeshowtoinstallanRS232DTEinterfacecabletoaPC,aVTseriesterminal,or

amodemtoaB5forout‐of‐bandsessionsusingCLIcommands.

1 B5 switch 5 AC power cord (type varies depending on country)

2 RPScable 6 AC power outlet with ground connection (type

varies depending on country)

3 STK-RPS-500PS output connector

4 B5 redundant power supply connector

Note: When switches are connected in a stack configuration and all high-speed stacking cables are

connected before powering up the switches, one switch in the stack will be automatically

designated as the Manager of the stack and its Console port will remain active. All other switches

will become Member switches and their Console ports will be deactivated.
