Section 6 Weld control 33
Spot current control
The weld programs contain the following current control parameters.
Parameter Units Range Description
Pre-mode
1
P/W – CCu – CCC Operating mode of the Pre-heat interval
Pre-heat
1
% 0.0 – 99.9 The % heat used during the Pre-heat interval
Pre-current
1
kA 0 – 500 The current used during the Pre-heat interval
Pre-monitor
1
yes/no The current can be tested between limits
Main mode P/W – CCu – CCC Operating mode of the Main heat interval
Main heat % 0.0
99.9 The % heat used during the Main heat interval
Main current kA 0 – 500 The current used during the Main heat interval
Main monitor yes/no The current can be tested between limits
Post mode
2
P/W
CCu
CCC Operating mode of the Post-heat interval
Post hea
2
% 0.0
99.9 The % heat used during the Post-heat interval
Post current
2
kA 0
500 The current used during the Post-heat interval
Post monitor
2
yes/no The current can be tested between limits
High limit % 0 - 99 Current high limit
Low limit % 0 - 99 Current low limit
1
Pre-heat program option must be enabled to use this feature
2
Post-heat program option must be enabled to use this extended feature
P/W (constant Pulse Width) mode. The current and heat parameters are independently adjustable. The
inverter pulse-width is fixed. The current parameter is used for monitoring only.
CCu (Constant Current uncalibrated) mode.
The current and heat parameters are independently
adjustable. The inverter uses a variable pulse-width to determine and regulate the actual current. The
current parameter is used for monitoring only.
CCC (Constant Current Calibrated) mode.
The current parameter is adjustable but the heat is
automatically determined by the iPAK2 from the calibration data.

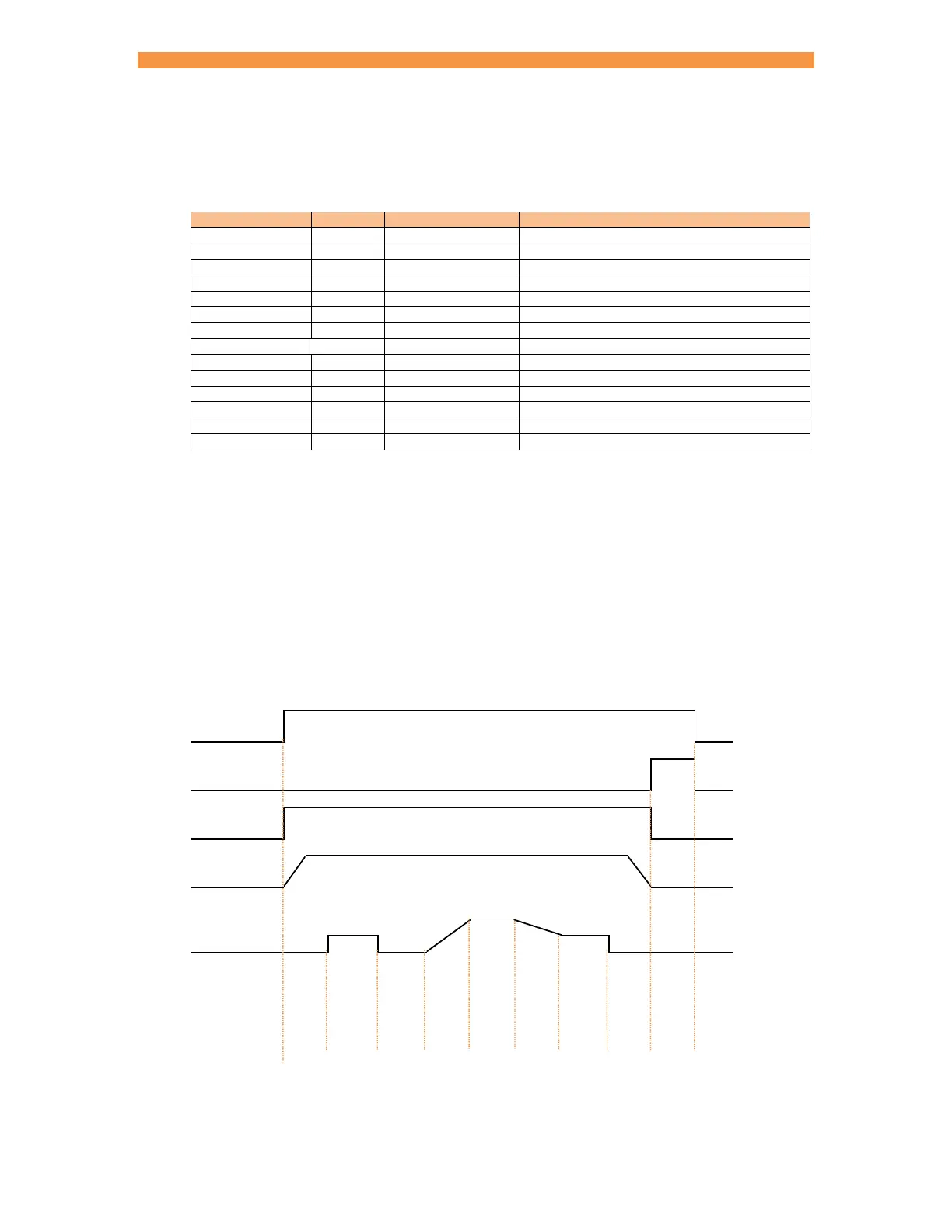

The diagram shows how the parameters control the welding current. The Cool2 interval is not shown.
Start input
EOS output
WAV output
Force
Main heat/current
Pre-heat/current
Post-heat/current
Current
Interval
Squeeze
Pre-heat
Cool1
Upslope
Main heat
Downslope
Post-heat
Hold
Off
